Quick Details
-
Filling Accuracy:
-
0.2%
-
Voltage:
-
2000mAh Lithium-ion
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GLZON
-
Dimension(L*W*H):
-
80*60*160CM
-
Weight:
-
150 KG
-
filling machine Max Capacity:
-
150kg
-
Product name:
-
150kg butane gas lpg cartridge refill filling machine
-
Function:
-
Gas filling
-
Processing Types:
-
Normal Pressure Filling
-
Material:
-
carbon steel
-
Filling material:
-
LPG
-
Bottle type:
-
CYLINDER
-
Origin:
-
China
-
Filling type:
-
weighing
Quick Details
-
Machinery Capacity:
-
100BPH
-
Packaging Material:
-
Metal
-
Filling Material:
-
gas
-
Filling Accuracy:
-
0.2%
-
Voltage:
-
2000mAh Lithium-ion
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GLZON
-
Dimension(L*W*H):
-
80*60*160CM
-
Weight:
-
150 KG
-
filling machine Max Capacity:
-
150kg
-
Product name:
-
150kg butane gas lpg cartridge refill filling machine
-
Function:
-
Gas filling
-
Processing Types:
-
Normal Pressure Filling
-
Material:
-
carbon steel
-
Filling material:
-
LPG
-
Bottle type:
-
CYLINDER
-
Origin:
-
China
-
Filling type:
-
weighing
Product Description

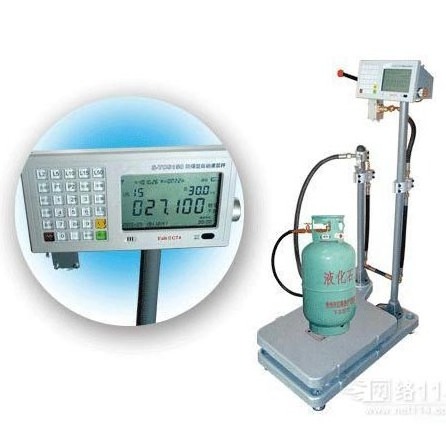

Our company produces the liquefied gas electronic quantitative filling scale, the whole machine shell and the scale table are made of 8K stainless steel plate, and equipped with ASCO solenoid valve imported from the United States, the United States imported sensors.The machine has the characteristics of beautiful appearance, corrosion resistance, long service life and low failure rate.
Specification
|
Filling capacity
|
1~150kg
|
GZM-II
|
GZM-III
|
||
|
Suitable material
|
±0.10kg
|
|
|
||
|
Filling speed
|
40~60 can/hour
|
Double nozzle,gross weight
|
Triplicate nozzle, gross weight
|
||
|
Packing net weight
|
20~50Kg
|
|
|
||
|
Voltage
|
AC220V, -15%~10%
|
|
|
||
|
Power
|
30W
|
350~700bags/hour
|
500~1000bags/hour
|
||
|
Operate temperature
|
-20~50℃
|
|
|
||
|
Gas power
|
0.5MPa
|
|
|
||
|
Relative air humidity
|
≤95% Non condensing
|
|
|
||
|
Operate pressure
|
7Mpa (can filling)
|
|
|
||
|
Input power
|
2000mAh Lithium-ion rechargeable battery
|
0.2 KW
|
0.3 KW
|
||
|
Accuracy class
|
III
|
1.4 m3/min
|
2.1m3/min
|
||
|
EX proof class
|
EXiaBT4
|
1300x1270x1600
|
1950x1270x2000
|
||
|
Data of storage
|
8000pcs filling record
|
1200 Kg
|
1800 Kg
|
||
Feature
1.Dual display displays instantaneous weight, target weight or actual filling and other information.
2. All filling data are entered by keys and stored in memory.
3. All filling data are protected by power failure.
4. Automatic zero tracking;Start up automatically set zero.
5. Automatic classification and accumulation of filling weight and number of filling bottles.
6. Each filling has the function of automatic correction of rough feed, fine feed and advance value.
7. Dynamic and static anti-vibration interference combination software package.
8. Optional function of gross filling and net filling.
9, the use of pneumatic cut off valve with reliable operation, accurate cut off, durability, failure rate and other
characteristics.
10. Can automatically remove cylinder tare weight, clamp weight and connecting pipe weight.
11. The filling weight can be arbitrarily set according to your own needs for random filling.
12, with multiple scales computer networking function. (optional)
2. All filling data are entered by keys and stored in memory.
3. All filling data are protected by power failure.
4. Automatic zero tracking;Start up automatically set zero.
5. Automatic classification and accumulation of filling weight and number of filling bottles.
6. Each filling has the function of automatic correction of rough feed, fine feed and advance value.
7. Dynamic and static anti-vibration interference combination software package.
8. Optional function of gross filling and net filling.
9, the use of pneumatic cut off valve with reliable operation, accurate cut off, durability, failure rate and other
characteristics.
10. Can automatically remove cylinder tare weight, clamp weight and connecting pipe weight.
11. The filling weight can be arbitrarily set according to your own needs for random filling.
12, with multiple scales computer networking function. (optional)
