Quick Details
-
Brand Name:
-
RZfiber
-
Product name:
-
FTTH mini optical node/ receiver with filter indoor node
-
Optical Receiver Wavelength:
-
1310nm/1490nm/1550nm
-
Optical Input Range:
-
-18dBm ~ +0dBm
-
Frenquency Range:
-
45MHz~1000MHz
-
Optical Connector:
-
SC or FC
-
Power Voltage:
-
DC12V/1A
-
Fiber Type:
-
Single mode
-
Optical Receiving Wavelength:
-
1100 ~ 1600nm or 1530 ~1620nm
-
Return Loss:
-
≥14dB
Quick Details
-
Type:
-
HFC In-door Optical Receiver
-
Model Number:
-
OPT-EW1000, Catv optical node
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RZfiber
-
Product name:
-
FTTH mini optical node/ receiver with filter indoor node
-
Optical Receiver Wavelength:
-
1310nm/1490nm/1550nm
-
Optical Input Range:
-
-18dBm ~ +0dBm
-
Frenquency Range:
-
45MHz~1000MHz
-
Optical Connector:
-
SC or FC
-
Power Voltage:
-
DC12V/1A
-
Fiber Type:
-
Single mode
-
Optical Receiving Wavelength:
-
1100 ~ 1600nm or 1530 ~1620nm
-
Return Loss:
-
≥14dB

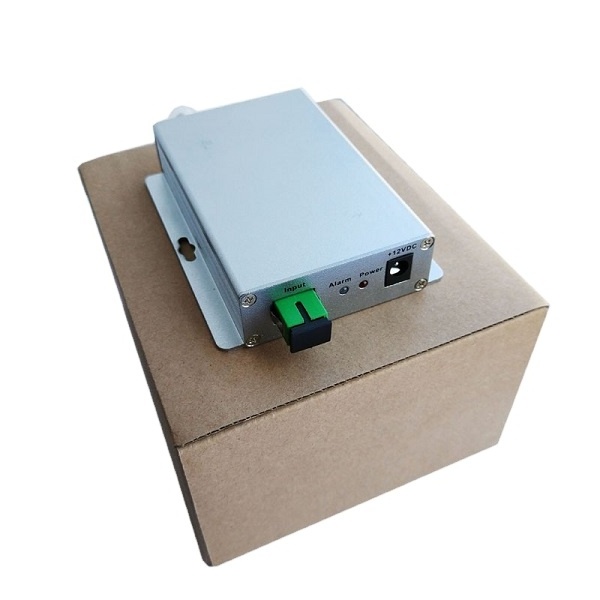

FTTH mini optical node/ receiver with filter indoor node
Optical Receiver Description
Our optical receiver is a mini in-door optical receiver with WDM that especially design for FTTP/FTTH application. Optical AGC,full-GaAs MMIC amplification device.
Optical Receiver Feature
♦ With AGC function
♦
Good heat dissipation
♦
Inside 47~862MHz,all have good flatness property
♦
Forward RF branch output, 75Ω impedance.
♦
Adopt GaAs amplifier device
♦
High output level can supply for many users
♦
Low power consumption, high cost performance
Optical Receiver Specification
|
P arameter |
P erformance |
|
|
Receiving wavelength range |
155 0nm( with Filter ) |
|
|
Receiving Power range |
-8~0dBm |
|
|
RF bandwidth |
47~1000MHZ@75Ω impedance |
|
|
RF Output level |
65~75dBuv@-6dBm |
|
|
Link performance |
CNR≥47.5 |
60CH(PAL-D),pin -6dBm,3 EDFA with noise figure 5dB,65KM,OMI,18.9%,Operating wavelength 1550nm |
|
|
CTB,CSO≤-65 |
|
|
|
MER≥32 |
|
|
Connector |
RF connector:F5(female). Optical connector: SC/ |
|
|
Appearance Size |
80*103*23.4mm(W*D*H) |
|
|
Operating special |
-5~55℃, input voltage 12V±3% |
|
The package:
will be packed according to standard export requirements, customer satisfication is our target.
Label printing:
Customer logo or Runzhou brand are available
♦ competitive advantage products
♦ full refund in case of bad quality
♦ payment accept with paypal
♦ confidentiality agreement "business secret contract"
♦ quality assurance contract
♦ free sample we can offer& small order also welcome
♦ after sales service 24*7
We are the manufacturer with 7 years' history.
2. About the quality?
3. Can you accept small order? Yes, small order is available. We support new project of our customers, as we know business is always from small order.
5. Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
