Quick Details
-
Weight:
-
2050 KG
-
Name:
-
Farmer Tractor
-
Transmission Box:
-
4 x (2 + 1) type
-
Size:
-
3600*1620*2110mm
-
Calibrate the traction kn:
-
10.5/11
-
Front wheel base mm:
-
1100
-
Clearance from the ground:
-
323
-
rated power(r/min):
-
2400 r/min
-
fuel:
-
Diesel Oil
-
clutch:
-
Dry single action
-
Engine calibration power:
-
36.8/40.4
Quick Details
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
Other
-
Engine Brand:
-
4TD55A
-
Weight:
-
2050 KG
-
Name:
-
Farmer Tractor
-
Transmission Box:
-
4 x (2 + 1) type
-
Size:
-
3600*1620*2110mm
-
Calibrate the traction kn:
-
10.5/11
-
Front wheel base mm:
-
1100
-
Clearance from the ground:
-
323
-
rated power(r/min):
-
2400 r/min
-
fuel:
-
Diesel Oil
-
clutch:
-
Dry single action
-
Engine calibration power:
-
36.8/40.4
Product Description
The 30-220 horsepower tractor can be equipped with more than 40 kinds of agricultural machinery and tools, which can complete rotary tillage, weeding, ditching, soil cultivation, ridging, burying, mulching, plowing, sowing, fertilizing, pumping, spraying, and transportation , Potato cutting, potato harvesting, peanut harvesting, green onion harvesting, paddy field operations, etc. It is suitable for places where large agricultural machinery is difficult to operate, such as plains, vegetable greenhouses, orchards, slopes, and terraces. Different agronomic operations can be completed by supporting different agricultural machinery.

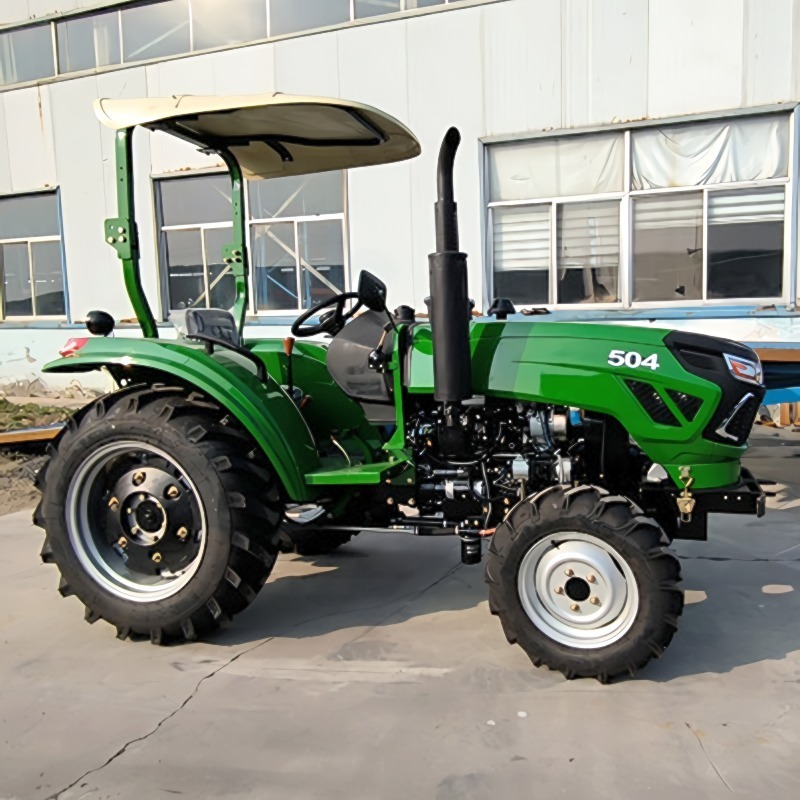

1.Main feature of TH504-3 tractor
(1) Big and Wide tyres, Strong power, low fuel consumption
(2) Weichai or Oriental red engine
(3) Full hydraulic steering, small turning radius, 3 sets of outputs can attach all accessories hina
(4) Low noise,big traction and flexble steering
(5)Good stability and easy start performance
(6) Luxury cabin with air conditioner make farmers more comfortable
(1) Big and Wide tyres, Strong power, low fuel consumption
(2) Weichai or Oriental red engine
(3) Full hydraulic steering, small turning radius, 3 sets of outputs can attach all accessories hina
(4) Low noise,big traction and flexble steering
(5)Good stability and easy start performance
(6) Luxury cabin with air conditioner make farmers more comfortable
|
Tractor datails
|
Model No
|
TH504-3
|
|
|
Specification
|
20-55hp
|
|
|
Type
|
4x2 4x4 wheel
|
|
|
L*W*H(mm)
|
3558*1500*2245
|
|
|
Wheel base(mm)
|
1820
|
|
|
Front wheel tread
|
1040/1140/1240 (step adjustable)
|
|
|
Rear wheel tread
|
960-1300(stepless adjustble)
|
|
|
Min ground clearence(mm)
|
340
|
|
|
Dry mass(Kg)
|
1425
|
|
|
Clutch
|
Dry, Single plate, Single action
|
|
|
Steering
|
Hydraulic steering
|
|
|
transmission box
|
8f+4r shifts
|
|
Engine
|
Engine brand
|
LD / Quan chai
|
|
|
Engine type
|
LD 4TE50K / Quan chai 4B5-50
|
|
|
Engine rated power(kw)
|
36.8
|
|
|
Engine rated speed(r/min)
|
2400
|
|
|
Fuel
|
diesel
|
|
Tyre
|
Front tyre
|
6.00-16
|
|
|
Rear tyre
|
9.50-24
|
|
PTO
|
suspension type
|
Rear three point suspension / category 1
|
|
|
PTO speed
|
720
|
|
|
PTO spline Nos
|
6
|
|
|
PTO shaft & Spline size
|
35 spline 6 teeth
|
|
|
lifting force (N)
|
8280
|
