Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tenghong
-
Model Number:
-
TH-0211
-
Usage:
-
Label Printer
-
Dimensions(L*W*H):
-
60*70*80CM
-
Weight:
-
85.0 KG
-
Platen Size:
-
200*300MM
-
temperature adjust:
-
narmal 350 degrees
-
hot press time:
-
0.01s-99.99h
-
table size:
-
200mm*300mm
-
Name:
-
Hot Press Machine
-
voltage:
-
220V
-
power:
-
4KW
-
Heating mode:
-
Electric heating
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Letterpress
-
Color & Page:
-
single color
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tenghong
-
Model Number:
-
TH-0211
-
Usage:
-
Label Printer
-
Dimensions(L*W*H):
-
60*70*80CM
-
Weight:
-
85.0 KG
-
Platen Size:
-
200*300MM
-
temperature adjust:
-
narmal 350 degrees
-
hot press time:
-
0.01s-99.99h
-
table size:
-
200mm*300mm
-
Name:
-
Hot Press Machine
-
voltage:
-
220V
-
power:
-
4KW
-
Heating mode:
-
Electric heating
Products Description
|

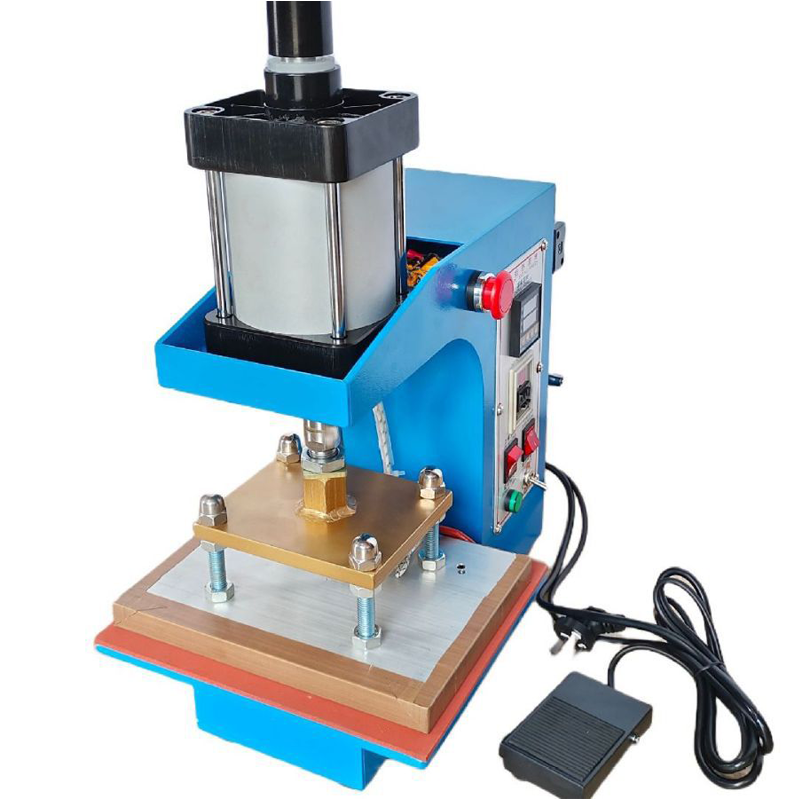

leather bronzing machine
Features of heat press machine:
1. Powered by compressed air, the descending speed is adjustable
2. Mini table C type model
3. The adjustable stroke of the cylinder is easy to adjust, and the downward speed of the cylinder is adjustable
4. The mechanical start method has a double button switch (or optional foot switch) design
5. The cylinder is equipped with anti-rotation double guide rods to make the work more accurate; in addition, the output of the cylinder can be adjusted by the pressure regulating valve
6. The upper and lower molds have heating function (for hot pressing, stamping, branding, bronzing, printing, etc.)
7. Use pressure (air pressure): 4-7KG/square centimeter Maximum mechanical stroke: 120MM adjustable 50MM
8. Adjustable temperature: normal temperature -250 degrees, adjustable up and down independent temperature control Mechanical appearance: W400*D600*H500MM
9. Hot pressing time: 0.01S-99.99H can be adjusted arbitrarily; heating plate area: 200*300MM (size can be customized)
10. Power of the whole machine: 5KW Power supply voltage: 380/220V (single-phase) Mechanical weight: 70KG
Hot press setting machine parameters
1. Automatic constant temperature,
2. Automatic timing
3. Automatic counting
4. C frame construction
5. Double start switch
|
|
Model
|
TH-0211
|
|
N.W.
|
23KG
|
|
Voltage
|
220V
|
|
Air pressure
|
6KG
|
|
Power
|
0.1KW
|
|
Machine size
|
480*280*580MM
|
|
Heat plate area
|
70mm*120mm
|
|
Packing weight
|
35KG
|
