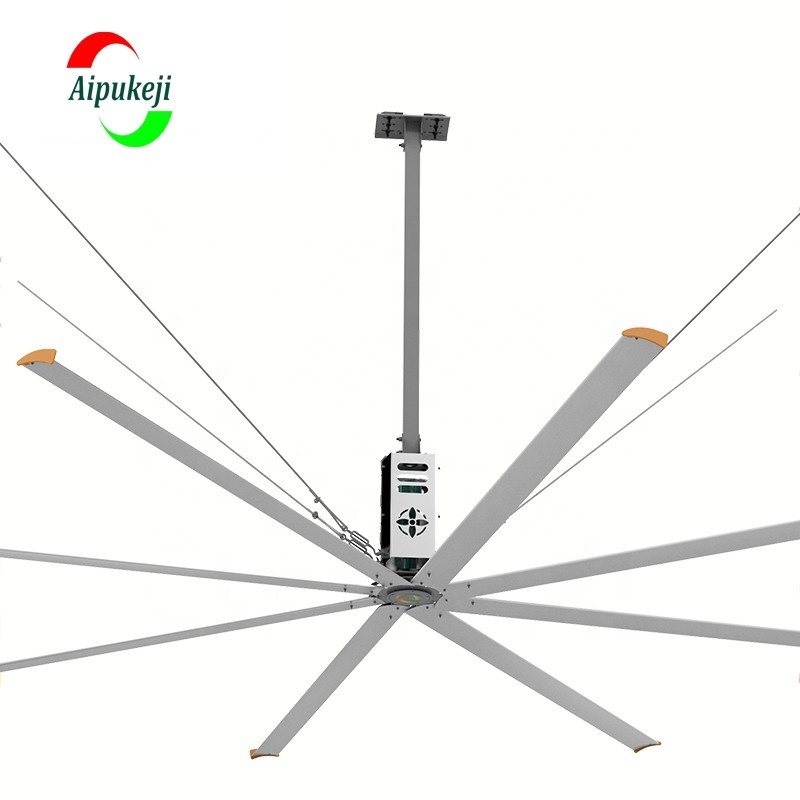

16ft HVLS Industrial Giant Fan high volume low speed ceiling fan

16ft HVLS Industrial Giant Fan high volume low speed ceiling fan

FOB Reference Price: Get Latest Price

≥1 Sets

US $1500

≥10 Sets

US $1300

Free Inquiry

Customized Request

Explore More Products

Modern Industrial Three Adjust Speed Ceiling Fan

$ 11.17

High Speed Adjustable 18 Inch Electric Industrial Standing Fan

$ 10.6

Factory 18 Inch Three Adjust Speed Industrial Fan

$ 9.69

Modern Industrial Centrifugal Blower 3 Blades Ceiling Fan

$ 12.54

High Power Industrial Electric Cooling Air Metal Wall Fan

$ 9.8

Product Details

{{item.text}}

Quick Details

Brand Name:: Aipukeji

Model Number:: AWF49

Power (W):: 1100

Voltage (V):: 380/220

Voltage:: 380/220V

Amount of Blades:: 8pcs

Motor Power:: 1.5kw

Fan Diameter:: 5500mm/18ft

Rotation Speed:: 0-60R/M

Weight:: 128kg

Average Wind Speed:: 1-3m/s

Application Area:: 1000m2

Certification:: ce

Type:: Ventilation Fan

Quick Details

Rotary Vane Quantity:: 4/5/6/8/10

App-Controlled:: Yes

Place of Origin:: Shanghai, China

Brand Name:: Aipukeji

Model Number:: AWF49

Power (W):: 1100

Voltage (V):: 380/220

Voltage:: 380/220V

Amount of Blades:: 8pcs

Motor Power:: 1.5kw

Fan Diameter:: 5500mm/18ft

Rotation Speed:: 0-60R/M

Weight:: 128kg

Average Wind Speed:: 1-3m/s

Application Area:: 1000m2

Certification:: ce

Type:: Ventilation Fan

Product Overview

HVLS CEILING FAN

Large ceiling-mounted industrial ventilation fan

* High air-volume HVLS fan
* Imported Germany motor, IE2, IP55
* Digital VFD controller, IE2, IP55
* 6x Aluminum-magnesium alloy blades
* Highly efficient & energy-saving

Large ceiling fan by the fan continue to push forward, and produce a large number of air blowing to the around, the air flow to both sides of the flow, the information of large area of the airflow, through the control of the fan, get the average wind speed of 1-3 m/s comfortable cool wind. Breeze blowing in the human body, will promote the sweat away to take away the heat, leaving the body gradually cool, bring comfort. Usually, this cooling can feel about 3-5 degree. They are mainly used in large and high places like workshop,warehouses,distribution center, gymnasium, station, farm and so on.There are many top 500 companies in the world such as Wal-Mart, HONDA, NISSAN, FORD etc are our loyal customers.

FEATURES AT A GLANCE

COMPACT DIMENSIONS

AWF SERIES

SIZE: 7 FT -28 FT (2100 MM - 8600 MM)

BLADE QTY: 4/5/6/8/10 PCS

POWER: 0.75KW/1.1KW/1.5KW/2.2KW

VOLTAGE: 220V/380V/440V

HIGH EFFICIENT & ENERGY-SAVING

COVERAGE UP TO 2000 SQM

HIGH GEARED MOTOR

DIGITAL VFD CONTROLLER

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power	1.1KW
2	Model	AWF49
3	Blade	4/5/6/8/10pcs
4	Height	1200mm
5	Coverage	750sqm
6	Air volume	6800m3/min
7	Rotate speed	0-64rpm
8	Wind speed	1-3m/s

Each fan is equipped with 4 pcs of steel wire rope (enhance the stability of ceiling fan, to prevent the risk of loosening of screws)

Blade safety connection pieces connect the blades one by one to the blade brackets (Even if the blades brackets are broken, the fan would not falling off due to the connecting piece device.)

Safety alarm device, built-in overload phase protection, timely alarm signal to ensure safe running. The perspective window is designed to observe the operating parameters of the fan conveniently

Motor System - imported Germany Nord motor
1. Low backlash assembly process and gear grinding technique, low noise

2. Strength the bearing frame structure, increase oil seal and strength the motor structure with trapezoidal shaft structure, higher safe;
3. IP55 protection grade, IE2 stardard
4. Passed CCC, CE, UL certificates
5. Can run on clockwise and counterclockwise direction

Control System - VFD Controller

1. Danfoss electrical sets, with safety protection module inside which will interrupt the output automatically in case of some accidents.

2. Protection level is IP55, passing UL, EMC, ROHS certificates;

3. Safety & Protection: over-load, over-current, cutting off t he power automatically in emergency situation

Successful Project

Project in Park

Project in Warehouse

Project in Church
