Quick Details
-
Brand Name:
-
Beyond
-
Measurement Range of Bursting Strength:
-
250~5600kPa
-
Accuracy:
-
± 0.5%FS
-
Power Supply:
-
AC220V±10%, 50Hz
-
Brand name:
-
Beyond
-
Resolution:
-
1kPa
-
Speed of Compression:
-
170±15ml/min
-
Size:
-
445*425*525(L*W*H)
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
China, China
-
Brand Name:
-
Beyond
-
Measurement Range of Bursting Strength:
-
250~5600kPa
-
Accuracy:
-
± 0.5%FS
-
Power Supply:
-
AC220V±10%, 50Hz
-
Brand name:
-
Beyond
-
Resolution:
-
1kPa
-
Speed of Compression:
-
170±15ml/min
-
Size:
-
445*425*525(L*W*H)

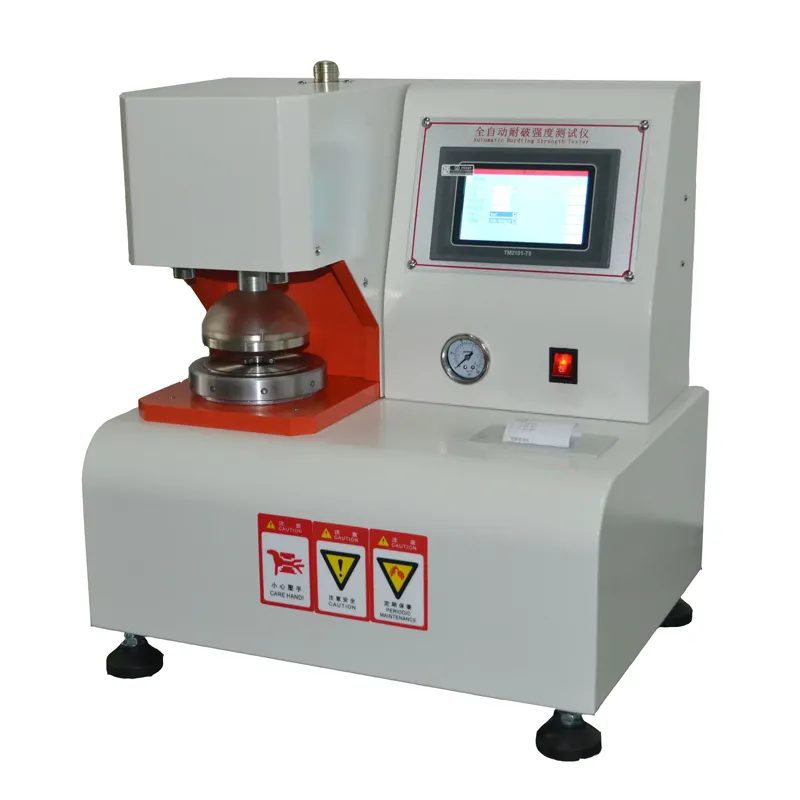

Paper Bursting Strength Testing Machine Mullen Paper Bursting Strength Tester for Cardboard Carton Box Bursting Tester Price
Application :
This machine is international universal Mullen type machine, widely applied for package material, mainly for bursting strength testing of various kinds paper boards ,single & multi layer corrugated paperboard as well non-paper material like silk, cotton etc. Put the testing specimen, the machine will automatically detect, testing, oil pressure return ,calculating, storing & printing testing data, and the machine with Touch screen .
Standards:
JIS-L1004, L1018, L1031, K6328, P8131, P8112, ASTM-D2210, TAPPI T403, ISO2759, GB/T 1539, GB/T 454, GB/T 465.1, GB/T 6545 GB/T6545 , ISO 2759 , GB1539 , QB/T1057 of "Bursting Strength measurement for Cardboard.,etc.
Feature
1.Large color touch screen controller
2.Equipped with printer. Print the test result immediately.
3.Clamping ring material is stainless steel. Durable, fine mechanical property,green product and corrosion resistance are much better than other material.
4.The structure is specially designed and high precision of test results.
5.The equipment is easy and quick operations
|
Test Range |
250~2500 kPa |
|
Pressure Speed |
170 ± 1 5ml/min |
|
Specimen Clamping Force |
>690kPa |
|
Motor |
1/4HP |
|
Dimension |
445 mm×4 25 mm×5 25 mm |
|
Net Weight |
65 Kg |
|
Air Pressure |
0.5MPa-0.7MPa |
|
voltage |
120W |
|
Power Supply |
A 220V ±10%, 50Hz |
|
Hydraulic oil |
Silicone oil |
|
size |
430*530*520mm |
|
Clip ring material |
stainless steel |
Details
1. Out packing:Standard carton box or export wooden case
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. we can ship it via DHL ,Fedex and UPS
