Quick Details
-
Brand Name:
-
Festar
-
Model Number:
-
T100
-
Product name:
-
Current Micron Coating Thickness Gauges Meter Tester for Car Paint
-
Model:
-
T100
-
Application:
-
concrete testing
-
Working principle:
-
Magnetic induction and eddy current
-
Measuring range:
-
F1(0~1250um), F10(0~10000um), N1(0~1250um)
-
Minimum curvature:
-
F1(3mm),F10(10mm),N1(4mm),F400(1mm)
-
Measurement method:
-
Continuous measurement method, single measurement method
-
Statistics function:
-
Mean, Large, Small, Tests,Standard Deviation
-
Shutdown method:
-
Manual shutdown mode and automatic shutdown mode
-
Power supply:
-
Two 5# batteries
Quick Details
-
Warranty:
-
1YEAR
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei
-
Brand Name:
-
Festar
-
Model Number:
-
T100
-
Product name:
-
Current Micron Coating Thickness Gauges Meter Tester for Car Paint
-
Model:
-
T100
-
Application:
-
concrete testing
-
Working principle:
-
Magnetic induction and eddy current
-
Measuring range:
-
F1(0~1250um), F10(0~10000um), N1(0~1250um)
-
Minimum curvature:
-
F1(3mm),F10(10mm),N1(4mm),F400(1mm)
-
Measurement method:
-
Continuous measurement method, single measurement method
-
Statistics function:
-
Mean, Large, Small, Tests,Standard Deviation
-
Shutdown method:
-
Manual shutdown mode and automatic shutdown mode
-
Power supply:
-
Two 5# batteries
Product Description

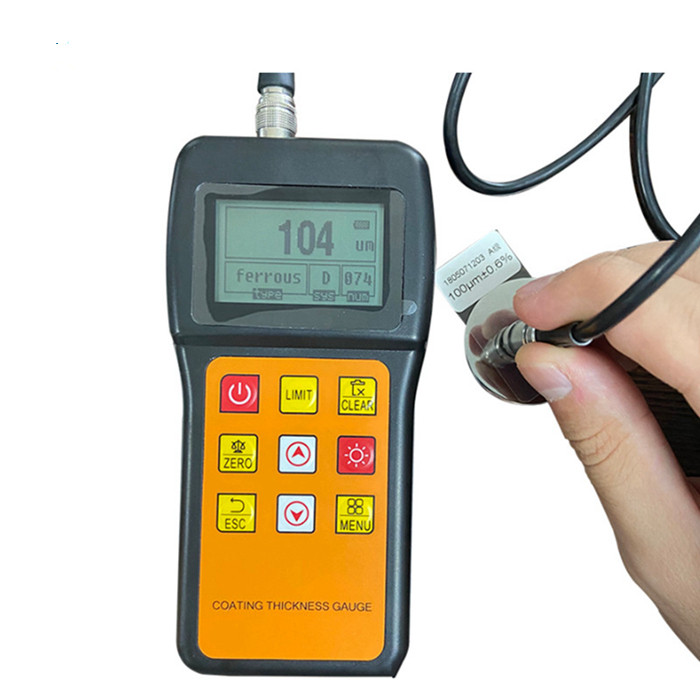

Magnetic Eddy Current Micron Coating Thickness Gauges Meter Tester for Car Paint Metal Automotive
The coating thickness gauge can measure the thickness of coatings and cladding materials quickly, nondestructive and accurately.It is suitable for both field and laboratory use.By using different probes, the meter can meet a variety of measurement requirements.It can be used in manufacturing, metal processing, chemical industry and commodity inspection industry.
Specification
|
Model
|
T100
|
|
Probe selection
|
Optional 10 probes
|
|
|
F1(Paint/Plating/Fire-resistant layer and 10mm inner cover)
|
|
|
Other probes: F400,F1/90°,F5,N400,N1,N1/90°,CN02,N10
|
|
|
Other probes: F400,F1/90°,F5,N400,N1,N1/90°,CN02,N10
|
|
Working principle
|
Magnetic induction and eddy current
|
|
Measurement accuracy
|
F1(±((1~2)%H+1)), F10(±((1~3)%H+1)), N1(±((1~2)%H+1))
|
|
Measuring range
|
F1(0~1250um), F10(0~10000um), N1(0~1250um)
|
|
Minimum curvature
|
F1(3mm),F10(10mm),N1(4mm),F400(1mm)
|
|
Minimum area
|
F1(Φ7),F10(Φ40),N1(Φ5),F400(Φ3)
|
|
Measurement method
|
Continuous measurement method, single measurement method
|
|
Statistics function
|
Mean, Large, Small, Tests,Standard Deviation
|
|
Calibration method
|
Single-point calibration,two-point calibration,and five-point basic calibration method to correct the system error of the probe
|
|
Statistics function
|
Mean, Large, Small, Tests,Standard Deviation
|
|
Calibration method
|
Single-point calibration,two-point calibration,and five-point basic calibration method to correct the system error of the probe
|
|
Storage function
|
Can store 495 measured values,with delete function:delete single suspicious data appearing in the measurement, or delete all data
in the storage area for new measurement |
|
Alam system
|
Linits can be set: automatic alarming for measured values outside the limits; with power undervoltage indication function;
beepprompts during operation; with error prompt function, error prompts can be displayed on screen or by beeps |
|
Shutdown method
|
Manual shutdown mode and automatic shutdown mode
|
|
Power supply
|
Two 5# batteries
|
Concsists of:
|
Description
|
Quantity
|
|
Host
|
1PC
|
|
Proble
|
1 PC
|
|
standard sample
|
5PC
|
|
iron or aluminum base
|
1PCS
|
|
5 AA battery
|
2PC
|
|
portable box
|
1PC
|
Packing & Delivery
* Installation and training
1. If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your
workers/technician face to face.
2. Without visiting, we will send you user manual and video to teach you to install and operate.
3. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
workers/technician face to face.
2. Without visiting, we will send you user manual and video to teach you to install and operate.
3. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
* After Service
1. One year guarantee for whole machine.
2. 24 hours technical support by email or calling
3. If there is any problem found of the machine, we will repair it for free in one year.
2. 24 hours technical support by email or calling
3. If there is any problem found of the machine, we will repair it for free in one year.
Certifications
Our Customer
Festar
is established in 2013. our main products include concrete compression testing machine, concrete cube test
moulds,asphalt test apparatus and others instruments. These products have been exported to more than 30 countries, especially used in building industry, and get lots of supports and praise. The workshop equipped with various advance lathe, CNC(Computer Numerical Control), cutting machines. These imported equipment ensure the quality of our products. Also our management system have been certified by ISO9001. Climate Chambers has been certified by CE. We also can provide every customer OEM request.
moulds,asphalt test apparatus and others instruments. These products have been exported to more than 30 countries, especially used in building industry, and get lots of supports and praise. The workshop equipped with various advance lathe, CNC(Computer Numerical Control), cutting machines. These imported equipment ensure the quality of our products. Also our management system have been certified by ISO9001. Climate Chambers has been certified by CE. We also can provide every customer OEM request.
Any details about us or our products, pls freely contact with us at any times.
FAQ
1.
who are we?
We are based in Hebei, China, start from 2013,sell to Mid East(30.00%),Southeast Asia(25.00%),Eastern
Asia(15.00%),Africa(6.00%),South America(5.00%),Northern Europe(4.00%),Southern Europe(4.00%),South Asia(4.00%),Domestic
Market(4.00%),North America(2.00%),Central America(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Concrete Cube Molds,Compression Testing Machines,Climate Chamber,Ring & Ball Apparatus,Concrete Test Hammer
4. why should you buy from us not from other suppliers?
We have 20 years of experience in design research and development.We sincerely hope to establish long-term cooperation with
clients by providing the best products, excellent service and the most reasonable prices.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
We are based in Hebei, China, start from 2013,sell to Mid East(30.00%),Southeast Asia(25.00%),Eastern
Asia(15.00%),Africa(6.00%),South America(5.00%),Northern Europe(4.00%),Southern Europe(4.00%),South Asia(4.00%),Domestic
Market(4.00%),North America(2.00%),Central America(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Concrete Cube Molds,Compression Testing Machines,Climate Chamber,Ring & Ball Apparatus,Concrete Test Hammer
4. why should you buy from us not from other suppliers?
We have 20 years of experience in design research and development.We sincerely hope to establish long-term cooperation with
clients by providing the best products, excellent service and the most reasonable prices.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
