Quick Details
-
Voltage:
-
Optional
-
Dimension(L*W*H):
-
1700*850*1700mm
-
Weight (KG):
-
450 KG
-
Product name:
-
hinge boring machine
-
Application:
-
hinge drill
-
Air Pressure:
-
0.6-0.8 Mpa
-
Weight:
-
400kg
-
Power(W):
-
3kw
-
Certification:
-
CE,ISO
Quick Details
-
Motor Type:
-
high speed motor
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QDZD
-
Voltage:
-
Optional
-
Dimension(L*W*H):
-
1700*850*1700mm
-
Weight (KG):
-
450 KG
-
Product name:
-
hinge boring machine
-
Application:
-
hinge drill
-
Air Pressure:
-
0.6-0.8 Mpa
-
Weight:
-
400kg
-
Power(W):
-
3kw
-
Certification:
-
CE,ISO
Woodworking hinge boring machine for wood door making
Technical specification:
| MODEL | MZB703032 | MZB73033 |
| Drilling diameter | 50mm | 35mm |
| Drilling Depth | 60mm | 60mm |
| Numbers of spindles | 3 spindle*2 heads | 3 spindles*3 heads |
| Main spindle rotation speed | 2840r/min | 2840r/min |
| Total Motor power | 1.5kw*2 | 1.1kw*3 |
| Pneumatic Pressure | 0.6*0.8Mpa | 0.6-0.8Mpa |
| Overall dimension | 1700*850*1700mm | 1700*800*1550mm |

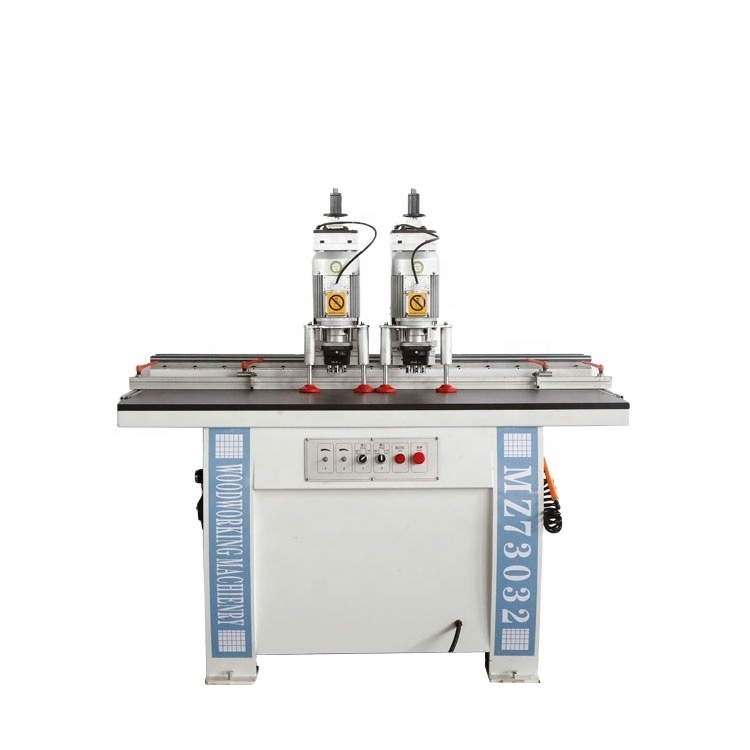

Picture:
Machine details:
