Quick Details
-
Brand Name:
-
ZJIVNV
-
Theory:
-
Sensor Switch
-
Output:
-
DC
-
Description:
-

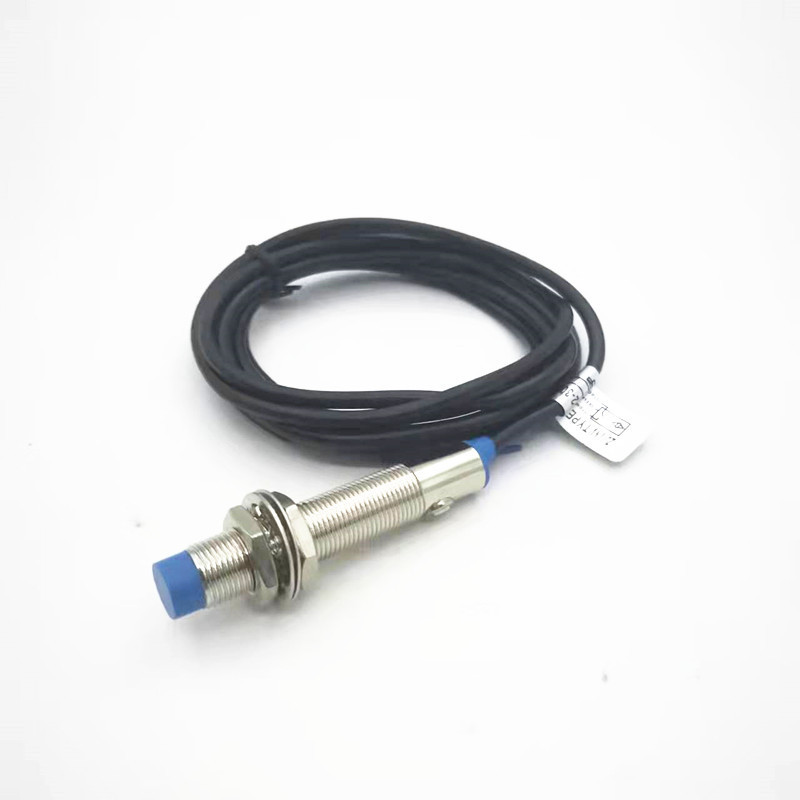

CM12 Capacitance Proximity Sensor
-
Product name:
-
CM12 Capacitance Proximity Sensor
-
Product diameter:
-
12mm
-
Detection distance:
-
4mm
-
Detectable object:
-
conductor and dielectric body
-
Shell material:
-
Metal
-
Working enironment temperature:
-
-25℃-70℃
-
Insulation resistance:
-
50MΩ
-
Pratection grade:
-
IEC standard IP54
Quick Details
-
Use:
-
Inductry
-
Model Number:
-
CM12-3004P
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZJIVNV
-
Theory:
-
Sensor Switch
-
Output:
-
DC
-
Description:
-
CM12 Capacitance Proximity Sensor
-
Product name:
-
CM12 Capacitance Proximity Sensor
-
Product diameter:
-
12mm
-
Detection distance:
-
4mm
-
Detectable object:
-
conductor and dielectric body
-
Shell material:
-
Metal
-
Working enironment temperature:
-
-25℃-70℃
-
Insulation resistance:
-
50MΩ
-
Pratection grade:
-
IEC standard IP54
Feature
M12 Non-flush CE Capacitance Proximity Approach Motion Sensor Switch DC 10-30VDC PNP NO/NC 3 Wires Detection Distance 4mm
|
CM12
|
|
|
|
|
||||
|
非埋入式 Non-flush
|
检测距离 Detection distance
|
|
|
0-4mm
|
||||
|
|
直流DC 6~36VDC
|
NPN
|
NO
|
CM12-3004NA
|
||||
|
|
|
|
NC
|
CM12-3004NB
|
||||
|
|
|
|
NO+NC
|
|
||||
|
|
|
PNP
|
NO
|
CM12-3004PA
|
||||
|
|
|
|
NC
|
CM12-3004PB
|
||||
|
|
|
|
NO+NC
|
|
||||
|
|
交流AC 90~250VAC
|
SCR可控硅Control-lable silicon
|
NO
|
|
||||
|
|
|
|
NC
|
|
||||
|
可检测体 Detectable object
|
|
|
|
导体及介电体 conductor and dielectric body
|
||||
|
消耗电流Consumption current
|
|
|
|
直流（NPN，PNP）型:DC12V时8mA24V时15mA，
交流型：10mA以下、DC＜15mA、AC＜10mA |
||||
|
输出电流 Output current
|
|
|
|
直流：200mA，交流型：200mA、
|
||||
|
输出电压降 Output voltage dropDC/AC
|
|
|
|
直流（NPN，PNP）3V以下，交流型：7V以下、DC＜3V、AC＜7V
|
||||
|
响应频率 DC/AC Response frequency
|
|
|
|
直流50Hz，交流型：10Hz
|
||||
|
外壳材料 Shell material
|
|
|
|
金属Metal
|
||||
|
工作环境温度Working enironment temperature
|
|
|
|
-25℃-70℃
|
||||
|
绝缘电阻 Insulation resistance
|
|
|
|
50MΩ
|
||||
|
防护等级 Pratection grade
|
|
|
|
IEC标准 IP54 IEC standard IP54
|
||||
Details Images
Applications
Working principle of capacitance proximity switch
