- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAO
-
Model Number:
-
161202355306
-
Drum Size:
-
Diameter 64mm Lenght 220mm
-
Cable:
-
24m of 9.5mm diameter
-
Packing Dimensions:
-
L 63 mm ,W 23 mm, H 36 mm
-
Recommended Battery:
-
650CCA Minimum for Winching
-
Motor::
-
7.4HP/5.0KW, series wound with high quality carbon brush
-
Color:
-
black
-
Control:
-
Remote switch, 11.8ft(3.6m)lead
-
Gear Ratio:
-
265/1
-
Fairlead::
-
Aluminum Hawse Fairlead
-
Performance:
-
12VDC
Quick Details
-
Power Source:
-
Electric
-
Application:
-
AUTO
-
Capacity:
-
12000 lbs
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAO
-
Model Number:
-
161202355306
-
Drum Size:
-
Diameter 64mm Lenght 220mm
-
Cable:
-
24m of 9.5mm diameter
-
Packing Dimensions:
-
L 63 mm ,W 23 mm, H 36 mm
-
Recommended Battery:
-
650CCA Minimum for Winching
-
Motor::
-
7.4HP/5.0KW, series wound with high quality carbon brush
-
Color:
-
black
-
Control:
-
Remote switch, 11.8ft(3.6m)lead
-
Gear Ratio:
-
265/1
-
Fairlead::
-
Aluminum Hawse Fairlead
-
Performance:
-
12VDC
Product Description
Specifications
Rated Line Pull: 12000LBS
Gear Ratio: 216/1
Motor:6.5HP/4.8KW
Solenoid: 400A
Mounting Bolt Pattern: 254mm × 114.3mm
Cable: Ф9mm x 24m
Performance: 12V DC
Drum Size: D64mm × 220mm
Packing Size:630mm × 230mm × 360mm
G.W (kg): 30
Recommended Battery: 650CCA Minimum
Battery Leader: 2 gauge,72"(1.83m)
Control leader: Remote switch, 11.8ft(3.6m)lead
Gear Train: 3 Stage planetary
Clutch: Pull & Turn Gear
Remote Control: Included
|
Line Pull
|
lb
|
NO
|
4000
|
6000
|
8000
|
9500
|
12500
|
|
|
kg
|
LOAD
|
1812
|
2718
|
3624
|
4304
|
5665
|
|
Line Speed
|
ft/min
|
22.8
|
11.8
|
10.2
|
8.5
|
7.0
|
6.0
|
|
|
m/min
|
6.95
|
3.6
|
3.1
|
2.6
|
2.13
|
1.83
|
|
Motor Current
|
Amps
|
78
|
166
|
207
|
248
|
310
|
372
|

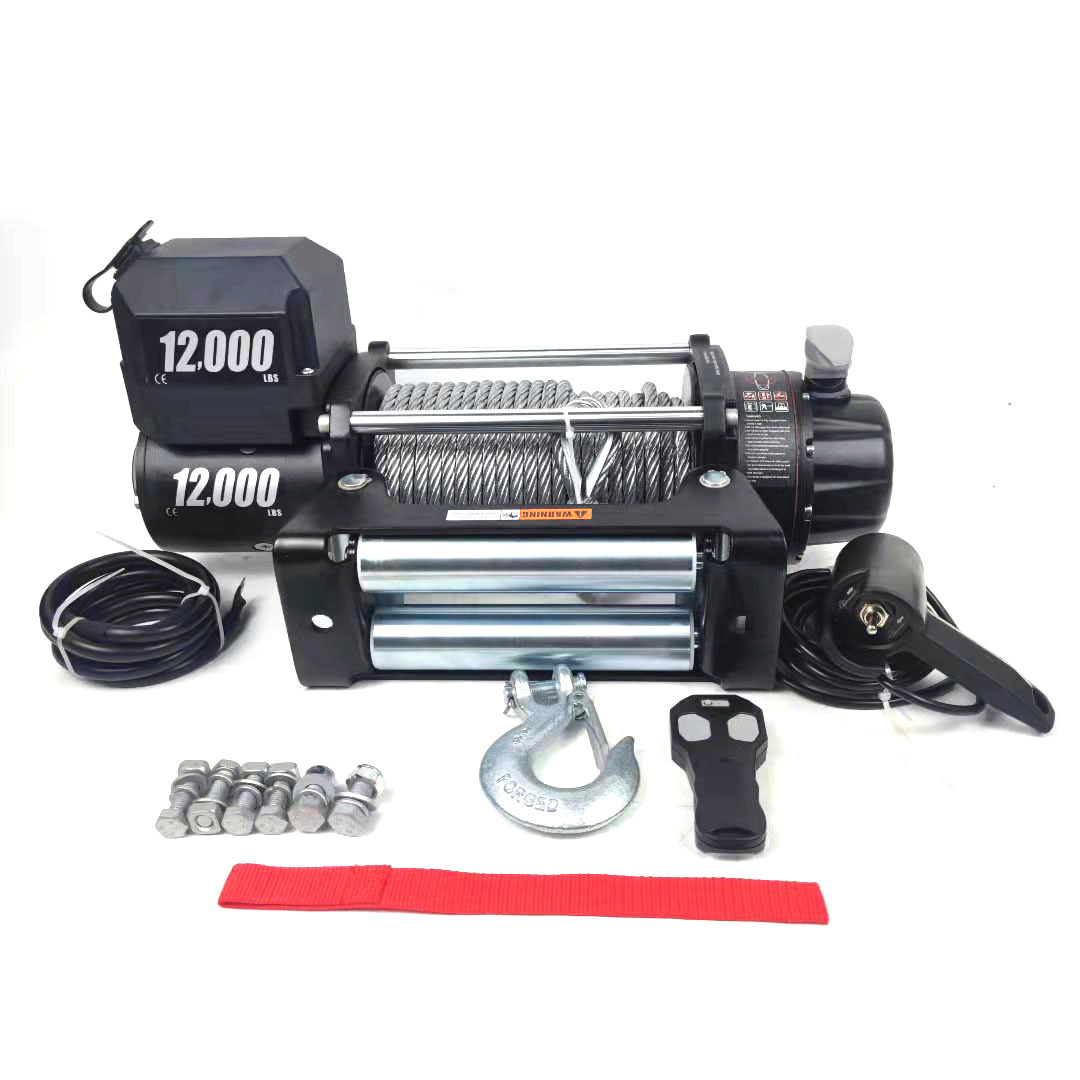

Details Images
Motor
Fairlead
Hook
Mounting Hardware
Wireless Remote Control
Wire Control
