Safe in use with emergency buttom and find protection.
Three heating method can be choose.
- Product Details
- {{item.text}}
Quick Details
-
Size:
-
3600*1300*1300mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Jieshen
-
Power:
-
1.5-3
-
Product name:
-
linen sheets ironing machine
-
Heating type:
-
Electric heating
-
Function:
-
Make linen after extracting smooth and dry
-
Used for:
-
Hotel.factory .laundry Hospital
-
Heating Power:
-
30-90kw
Quick Details
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Weight:
-
1500kg-4500kg
-
Size:
-
3600*1300*1300mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Jieshen
-
Power:
-
1.5-3
-
Product name:
-
linen sheets ironing machine
-
Heating type:
-
Electric heating
-
Function:
-
Make linen after extracting smooth and dry
-
Used for:
-
Hotel.factory .laundry Hospital
-
Heating Power:
-
30-90kw
PRODUCT SPECIFICATIONS
|
Model No
|
8025-I
|
8028-I
|
8030-I
|
8025-II
|
8028-II
|
8030-III
|
8025-III
|
8028-III
|
8030-III
|
|
Motor power
|
1.5kw
|
1.5kw
|
1.5kw
|
2.2kw
|
2.2kw
|
2.2kw
|
2.2kw
|
2.2kw
|
2.2kw
|
|
Steam Consumption
|
100kg/h
|
100kg/h
|
110kg/h
|
200kg/h
|
200kg/h
|
220kg/h
|
300kg/h
|
300kg/h
|
330kg/h
|
|
Rated Voltage
|
380v
|
380v
|
380v
|
380v
|
380v
|
380v
|
380v
|
380v
|
380v
|
|
Ironing speed
|
0-6m/min
|
0-6 m/min
|
0-6m/min
|
0-10 m/min
|
0-10 m/min
|
0-10 m/min
|
0-15 m/min
|
0-15 m/min
|
0-15 m/min
|
|
Dimension
|
3.6*1.3*1.3m
|
3.9*1.3*1.3
|
4.1*1.3*1.3
|
3.7*2.54*1.3
|
4*2.54*1.3
|
4.2*2.54*1.3
|
3.7*3.69*1.3
|
4*3.69*1.3
|
4.2*3.69*1.3
|
|
Net weight
|
1500kg
|
1800kg
|
2000kg
|
2300kg
|
2500kg
|
2800kg
|
3800kg
|
4300kg
|
4500kg
|
|
Model No
|
8028-IV
|
8030-IV
|
8033-IV
|
8028-V
|
8030-V
|
8033-V
|
8028-VI
|
8030-VI
|
8033-VI
|
|
Motor Power
|
2.2kw
|
2.2kw
|
2.2kw
|
2.2kw
|
2.2kw
|
2.2kw
|
3kw
|
3kw
|
3kw
|
|
Steam Consumption
|
400kg/h
|
400kg/h
|
440kg/h
|
500kg/h
|
500kg/h
|
550kg/h
|
600kg/h
|
600kg/h
|
660kg/h
|
|
Rated Voltage
|
380v
|
380v
|
380v
|
380v
|
380v
|
380v
|
380v
|
380v
|
380v
|
|
Ironing speed
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
0-25m/min
|
0-25m/min
|
0-25m/min
|
0-30m/min
|
0-30m/min
|
0-30m/min
|
|
Dimension M
|
4*4.3*1.3m
|
4.2*4.3*1.3
|
4.5*4.3*1.3
|
4*5.16*1.3
|
4.2*5.16*1.3
|
4.5*5.16*1.3
|
4*6.1*1.3
|
4.2*6.1*1.3
|
4.5*6.1*1.3
|
|
Net weight
|
4200kg
|
4300kg
|
4500kg
|
5200kg
|
5300kg
|
5500kg
|
6200kg
|
6300kg
|
6500kg
|
|
Model No
|
8025-I
|
8028-I
|
8030-I
|
8025-II
|
8028-II
|
8030-II
|
8025-III
|
8028-III
|
8030-III
|
|
Motor power(kw)
|
1.5
|
1.5
|
1.5
|
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
|
electric heat power (kw/h)
|
32.4
|
32.4
|
32.4
|
64.8
|
64.8
|
64.8
|
97.2
|
97.2
|
97.2
|
|
Rated Voltage
|
380V
|
380V
|
380V
|
380V
|
380V
|
380V
|
380V
|
380V
|
380V
|
|
Ironing Speed(M/MIN)
|
0-6
|
0-6
|
0-6
|
0-10
|
0-10
|
0-10
|
0-15
|
0-15
|
0-15
|
|
Dimension (L*W*H)mm
|
3600*1300*1300
|
3900*1300*1300
|
4100*1300*1300
|
3700*2540*1300
|
4000*2540*1300
|
4200*2540*1300
|
3700*3690*1300
|
4000*3690*1300
|
4200*3690*1300
|
|
Total weight(kg)
|
1200
|
1300
|
1500
|
2200
|
2300
|
2500
|
3200
|
3300
|
3500
|
Product Overview

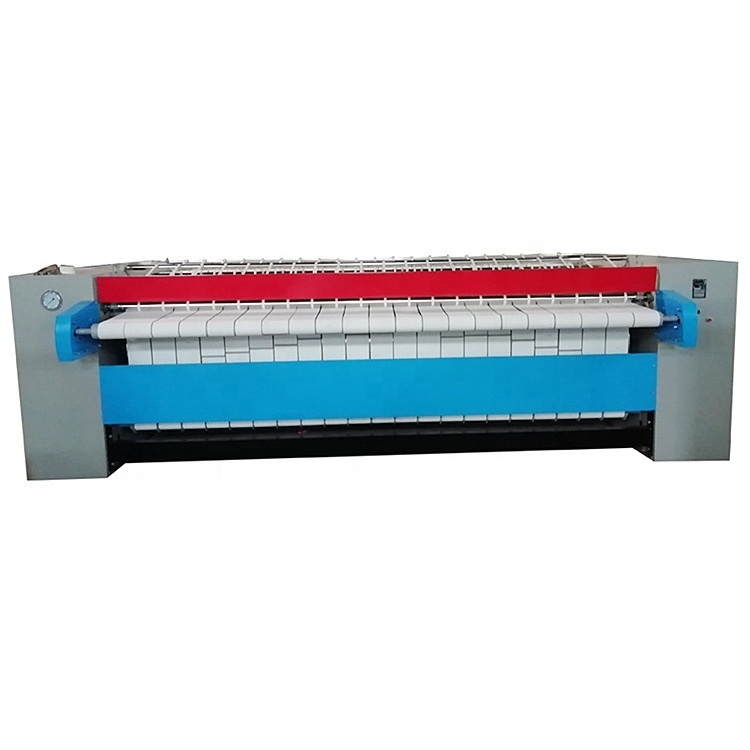

Linen sheets ironing machine
Hotel hospital Bed Sheets Ironing Machine1. Adjustable ironing speed and temperature 2. Heating roll made of 304 stainless steel. 3. Large
contact area of 200 degree to maximum heating exchange 4. Variable speed frequency inverter control, users can choose the suitable
speed for different textiles. 5. Gradual speed increment between rolls to improve ironing quality by stretching effect 6. Equipped
with finger protection and emergency button 7. Simple control with on/off button 8. Heating roll and guide shaft drive
simultaneously
9. Heating: Electric, Steam or Gas can be choose, price will not same, please contact us.
contact area of 200 degree to maximum heating exchange 4. Variable speed frequency inverter control, users can choose the suitable
speed for different textiles. 5. Gradual speed increment between rolls to improve ironing quality by stretching effect 6. Equipped
with finger protection and emergency button 7. Simple control with on/off button 8. Heating roll and guide shaft drive
simultaneously
9. Heating: Electric, Steam or Gas can be choose, price will not same, please contact us.
FEATURES AT A GLANCE
Easy to use. ironing speed and ironing temperature can be programed
Right elevation
Left elevation
Front elevation
