Quick Details
-
Connector Type:
-
none
-
Gender:
-
none
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JLD CABLE
-
Model Number:
-
18GA CCA SPEAKER CABLE
-
Outer Diameter:
-
Customized
-
Conductor Material:
-
CCA
-
Conductor Type:
-
stranded wire
-
Guage:
-
18ga
-
Insulation Material:
-
PVC speaker wire
-
Shape:
-
Twin round
-
cores:
-
2
-
Warranty:
-
1year
-
color:
-
transparent,withe,black,red-black,as required
-
MOQ:
-
300rolls
-
Cable Length:
-
100M
Quick Details
-
Type:
-
Twisted Pair
-
Application:
-
Car audio
-
Packing:
-
Polybag
-
Connector Type:
-
none
-
Gender:
-
none
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JLD CABLE
-
Model Number:
-
18GA CCA SPEAKER CABLE
-
Outer Diameter:
-
Customized
-
Conductor Material:
-
CCA
-
Conductor Type:
-
stranded wire
-
Guage:
-
18ga
-
Insulation Material:
-
PVC speaker wire
-
Shape:
-
Twin round
-
cores:
-
2
-
Warranty:
-
1year
-
color:
-
transparent,withe,black,red-black,as required
-
MOQ:
-
300rolls
-
Cable Length:
-
100M
Product Parameters:

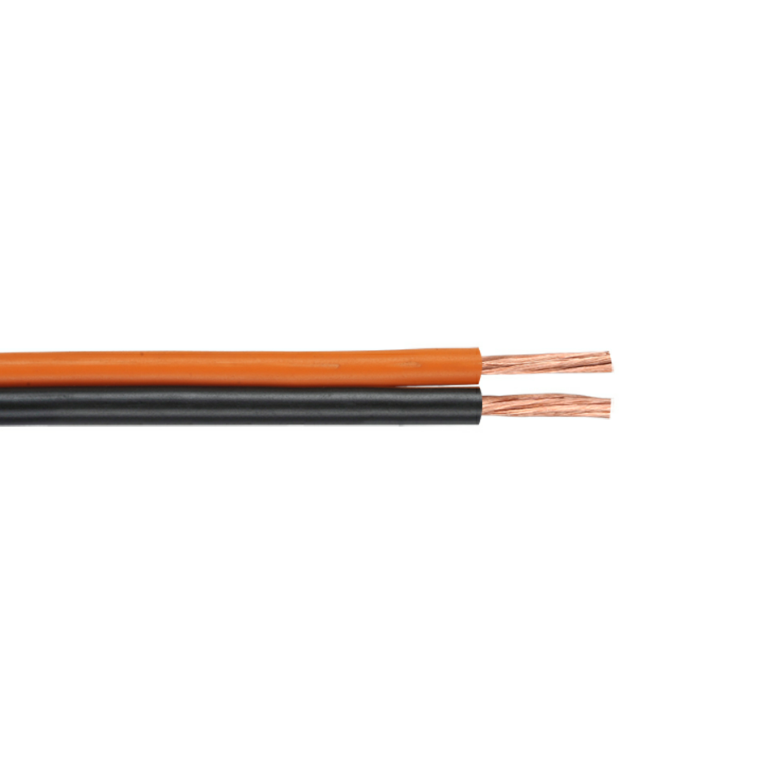

| Product Name | Speaker Cable |
| Model | Paired 18GA |
| Conductor | 10%CCA |
| Insulation | PVC |
| Specification | 40/0.15mm*2C |
| Out Diameter(OD) | 2.6*5.2mm |
| Spool Length | 328FT/100M/Spool(according to your requirement) |
Note:
All above-mentioned specification of paired speaker wire will be supplied by us as high quality and strict raw materials control,the sheet just show 0.12mm individual strand,0.15mm ,0.18mm, or 0.2mm will be accepted for different customer's or market demand,the total strands quantity will be counted if different individual strand specification.Qualified OEM/ODM service and products quality are our focus and company culture,customer's demand is first ,any strands (Tinned OFC,OFC, or CCA ,Tinned CCA),any insulation color and any length for each spool will be accepetd for bulk produce.
Luxury Version:
| AWG Number | Cross Area/Measure | Specification | Spool Length |
| Paired 12AWG | 3.32mm²*2C | 7*42/0.12mm,OD:4.5*9.0mm | 300FT/Spool |
| Paired 14AWG | 1.90mm²*2C | 7*24/0.12mm,OD:3.5*7.0mm | 300FT/Spool |
| Paired 16AWG | 1.42mm²*2C | 7*18/0.12mm,OD:3.2*6.4mm | 500FT/Spool |
| Paired 18AWG | 0.75mm²*2C | 66/0.12mm,OD:2.5*5.0mm | 1000FT/Spool |
| Gauge Number | Cross Area/Measure | Specification | Spool Length |
| Paired 12GA | 2.77mm²*2C | 7*35/0.12mm,OD:4.5*9.0mm | 300FT/Spool |
| Paired 14GA | 1.74mm²*2C | 7*22/0.12mm,OD:3.5*7.0mm | 300FT/Spool |
| Paired 16GA | 1.11mm²*2C | 7*14/0.12mm,OD:3.2*6.4mm | 500FT/Spool |
| Paired 18GA | 0.50mm²*2C | 44/0.12mm,OD:2.5*5.0mm | 1000FT/Spool |
