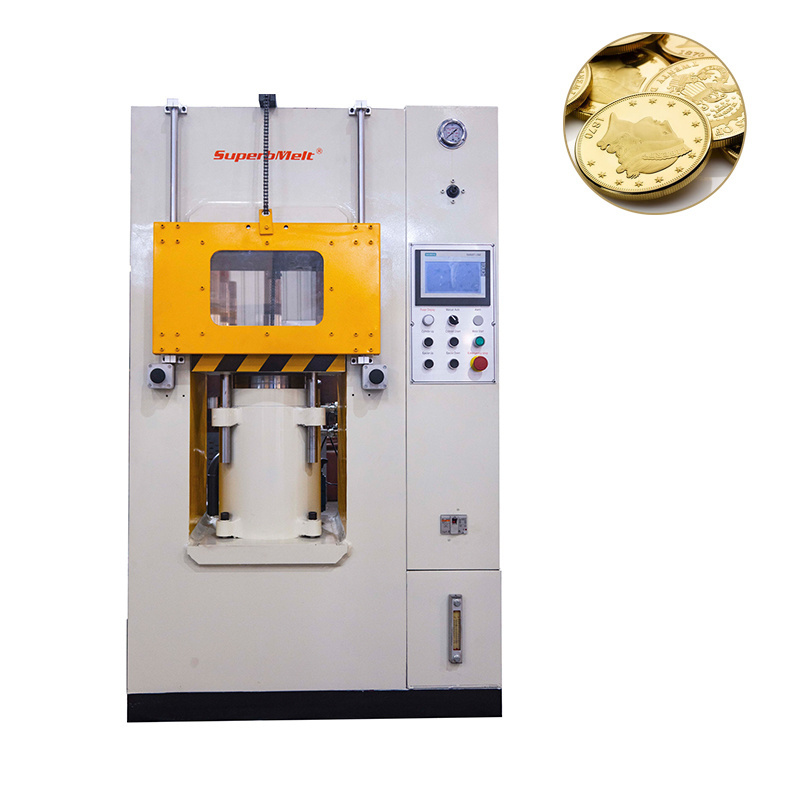

We are going to focus more on how gold coins and silver coins can be crafted with the help of a press machine.
SuperbMelt has always been on the front row when it comes to using the best technologies to create coins. The machine is energy sufficient, and no special skills are needed to operate it. Before you invest in this machine, it is vital that you consider talking to our agents so that we help you understand the core features of the machine and how you can benefit from it. Even if you need to know a few things here and there, you won’t need a lot of time to have that done.
- Product Details
- {{item.text}}
Quick Details
-
Warranty of core components:
-
18 months
-
Brand Name:
-
Superbmelt
-
Voltage:
-
220V/Three phase 380 V, 220V/Three phase 380 V
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Applicable Industries:
-
Coin Minting, Metal processing
-
Weight (KG):
-
1900
-
Cooling:
-
Water chiller or tap water
-
Metal capacity:
-
2-6 kg
-
Melting time:
-
3-5 min
-
Technical support:
-
Technical support
-
Applicable metal:
-
Gold, Silver, Copper, Brass, Bronze, and their alloys
-
Max temperature:
-
1600℃
-
Control of temperature:
-
by PID
-
Weight:
-
210-250kg
-
Certification:
-
ISO9001:2000, CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Machine Type:
-
One stop solution supplier
-
Marketing Type:
-
New Product
-
Warranty of core components:
-
18 months
-
Brand Name:
-
Superbmelt
-
Voltage:
-
220V/Three phase 380 V, 220V/Three phase 380 V
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Applicable Industries:
-
Coin Minting, Metal processing
-
Weight (KG):
-
1900
-
Cooling:
-
Water chiller or tap water
-
Metal capacity:
-
2-6 kg
-
Melting time:
-
3-5 min
-
Technical support:
-
Technical support
-
Applicable metal:
-
Gold, Silver, Copper, Brass, Bronze, and their alloys
-
Max temperature:
-
1600℃
-
Control of temperature:
-
by PID
-
Weight:
-
210-250kg
-
Certification:
-
ISO9001:2000, CE
Products Description
SPB-100TS
SPB-300TS
SPB-500TS
|
Item
|
|
Unit
|
SPB-100TS
|
SPB-300TS
|
SPB-500TS
|
|
|
Rated capacity
|
|
Ton
|
100
|
300
|
500
|
|
|
Max. system pressure
|
|
Mpa
|
25
|
24
|
25
|
|
|
Stroke of movable working table
|
|
mm
|
110
|
150
|
150
|
|
|
Height of movable working table
|
|
mm
|
800
|
940
|
850
|
|
|
Open height
|
|
mm
|
310
|
400
|
450
|
|
|
Workbench stroke speed
|
Approaching
|
mm/s
|
160
|
210
|
215
|
|
|
|
Returning
|
mm/s
|
145
|
210
|
200
|
|
|
Movable working table size
|
L-R bettween column
|
mm
|
430
|
560
|
600
|
|
|
|
F-B Rim
|
mm
|
430
|
560
|
560
|
|
|
Overall dimension
|
L-R
|
mm
|
980
|
1260
|
1480
|
|
|
|
F-B
|
mm
|
1150
|
1340
|
1520
|
|
|
|
H
|
mm
|
1930
|
2340
|
2300
|
|
|
Motor power
|
|
kw
|
11
|
16
|
23
|
|
|
Weight (Approx.)
|
|
kg
|
1500
|
3620
|
6700
|
|
Easy and safety to use
Parameters and Speed can be adjusted on the touch screen, easy to operate.
Ensure safety and easy to know error,easy to do after service. Because of Automatic alarm and auto troubleshooting system.
Energy-saving effect
The machine, though delivers high power, comes in a compact design. This makes it ideal for both small and workspaces, and does not cost a lot of money to invest in. Its compact design might also make it ideal for remote operation as well as the learning
process.
process.
Enhanced Productivity
Performance Features
* Servo motor driven system
The product comes with servo motor driven system that is great for different speeds and pressure that is needed while pressing gold and silver coins. This feature also ensures that the machine moves stably and that the noise is controlled. The stability is as a result of the fact that it uses famous hydraulic components that are highly optimized for various environments and applications.
* PLC Control System
This is an innovative system that makes the machine highly reliable since it makes the operation a lot more convenient.This feature lacks in traditional hydraulic systems, hence making this machine worth investing in.
* Straightforward Features
The product, though takes care of complex duties, it does not rely on highly complicated features to get the work done. The hydraulic coin press machine comes from seasoned manufacturers who understand the importance of user-experience, so they keep the features as simple and straightforward as possible.
The product comes with servo motor driven system that is great for different speeds and pressure that is needed while pressing gold and silver coins. This feature also ensures that the machine moves stably and that the noise is controlled. The stability is as a result of the fact that it uses famous hydraulic components that are highly optimized for various environments and applications.
* PLC Control System
This is an innovative system that makes the machine highly reliable since it makes the operation a lot more convenient.This feature lacks in traditional hydraulic systems, hence making this machine worth investing in.
* Straightforward Features
The product, though takes care of complex duties, it does not rely on highly complicated features to get the work done. The hydraulic coin press machine comes from seasoned manufacturers who understand the importance of user-experience, so they keep the features as simple and straightforward as possible.
* Compact Design
The machine, though delivers high power, comes in a compact design. This makes it ideal for both small and workspaces, and does not cost a lot of money to invest in. Its compact design might also make it ideal for remote operation as well as the learning process. SuperbMelt, for instance, takes advantage of its compactness to carry out various types of productions that need both low and high speed applications.
The machine, though delivers high power, comes in a compact design. This makes it ideal for both small and workspaces, and does not cost a lot of money to invest in. Its compact design might also make it ideal for remote operation as well as the learning process. SuperbMelt, for instance, takes advantage of its compactness to carry out various types of productions that need both low and high speed applications.
Applications
1.This hydraulic coin press machine comes with a steel fabricated body that is hydraulically operated and is specifically designed to mint gold and silver coins, as well as medals and bars. It leverages a force strong enough to press up to 150 tons of metal. It is best described as an upstroke coining press that delivers a RAM travel speed and features an extra hydraulic cylinder for return stroke. This means that by choosing this product, you will save energy hence cutting on electricity bill.
2.The machine lets you mint gold and silver metals and bars at a fair speed to meet the market demand. It comes with hydraulic power pack that consists of Piston Pump, relief valve, electric control panel board operated directional control valve, and standard hydraulic accessories. To get the most applicable features to meet your expectations, consider getting this product from reputable manufacturers such as SuperbMelt.
Provide Mature
Gold Silver Minting Line
Our Advantages
About SuperbMelt
1.Superb is a top-notch professional manufacturer and exporter of precious metal melting, casting and forming machines which are used in fields like precious metal, Rapid Prototyping, Jewelry and Artistic Sculpture.
2.Our mission is to build the most innovative melting and casting equipment for jewelry and
precious metal manufacturing, providing you with the highest reliability in your daily operations that guarantees the best quality.
3. As a leading precious metal melting and casting solutions provider, the provision of timely technical support for our manufacturers is an essential part of our services. With a strong technical support team that comprises of qualified and well trained (in China) local technicians, we are committed to solving any problems that you may have.
2.Our mission is to build the most innovative melting and casting equipment for jewelry and
precious metal manufacturing, providing you with the highest reliability in your daily operations that guarantees the best quality.
3. As a leading precious metal melting and casting solutions provider, the provision of timely technical support for our manufacturers is an essential part of our services. With a strong technical support team that comprises of qualified and well trained (in China) local technicians, we are committed to solving any problems that you may have.
Customer Photos
Advancing an industry caught up in the sleaze of the ordinary meant collaboration, dedication, and a workforce built on communal values. Fast track to this day, we pride ourselves as a major distributor of melting, casting, and forming machines in over 30countries.
Exhibition
Customer Feedback
FAQ
1.Q: Are you the factory? Can you make the equipment according to our requirements?
A:Yes, We are leading manufacturer specialized in Gold and Jewelry machinery field over 20 years in China.Our company already passed ISO9001 quality management system.
Our machines are designed and produced due to European directives (Machinery directive / Low voltage directive / EMC directive).
At delivery we add the corresponding declaration of conformity (CE). You are warmly welcome to visit our factory for deep
cooperation with you.
To further ensure our quality for customers, we will provide machine’s running testing video for your confirmation before
delivery. We will make sure that the machine which is delivered out from factory is 100% no problem.
2.Q: when can I get quotation?
A: we usually quote within 24 hours after receiving your inquiry. If you are eager to get the price, please call us or let us know in your email so that we can give priority to your inquiry.
3.Q: what is the delivery time?
A: Mostly, one machine lead time is 5~10 days and air courier to arrive within 7 working days worldwidely.
4.Q: if I place an order on you, how should I pay?
A: Generally, PayPal, T / T, visa ,West Union and other payment methods are acceptable.
5.Q: What kind of delivery methods can we use?
A: By sea,by air or express are all acceptable.It depends on your will.And we will recommend the best way to you.
6.Q: how about the shipping costs and tax?
A: the cost of delivery depends on the mode, destination and weight. The tax depends on your local customs.
7.Q:About setup and training: Is the technician needed here? What dose it costs?
A:English manual and detailed video are provided for your guide. We are 100% sure that you could install and operate machine under the guide as our former customers’ experience. If you are interested, please contact us for video sharing.
8.Q: How is your after-sale servise?
A:We have an professional engineer team to do it.All problem will be responded within 12 hours.We provide life-long service.Any problem ,we will arrange engineer to check for you remotely.
A:Yes, We are leading manufacturer specialized in Gold and Jewelry machinery field over 20 years in China.Our company already passed ISO9001 quality management system.
Our machines are designed and produced due to European directives (Machinery directive / Low voltage directive / EMC directive).
At delivery we add the corresponding declaration of conformity (CE). You are warmly welcome to visit our factory for deep
cooperation with you.
To further ensure our quality for customers, we will provide machine’s running testing video for your confirmation before
delivery. We will make sure that the machine which is delivered out from factory is 100% no problem.
2.Q: when can I get quotation?
A: we usually quote within 24 hours after receiving your inquiry. If you are eager to get the price, please call us or let us know in your email so that we can give priority to your inquiry.
3.Q: what is the delivery time?
A: Mostly, one machine lead time is 5~10 days and air courier to arrive within 7 working days worldwidely.
4.Q: if I place an order on you, how should I pay?
A: Generally, PayPal, T / T, visa ,West Union and other payment methods are acceptable.
5.Q: What kind of delivery methods can we use?
A: By sea,by air or express are all acceptable.It depends on your will.And we will recommend the best way to you.
6.Q: how about the shipping costs and tax?
A: the cost of delivery depends on the mode, destination and weight. The tax depends on your local customs.
7.Q:About setup and training: Is the technician needed here? What dose it costs?
A:English manual and detailed video are provided for your guide. We are 100% sure that you could install and operate machine under the guide as our former customers’ experience. If you are interested, please contact us for video sharing.
8.Q: How is your after-sale servise?
A:We have an professional engineer team to do it.All problem will be responded within 12 hours.We provide life-long service.Any problem ,we will arrange engineer to check for you remotely.
9.Q:How about package? If machine damaged, what should I do ?
A:Usually machine is packed with plywood case and standard export carton.
Damage haven't happened before as our previous experience. If happen, we will provide free replacement for you first. Then we will negotiate with our agent to solve the compensation issue. You will not afford any loss about this part.
A:Usually machine is packed with plywood case and standard export carton.
Damage haven't happened before as our previous experience. If happen, we will provide free replacement for you first. Then we will negotiate with our agent to solve the compensation issue. You will not afford any loss about this part.
