Quick Details
-
Material:
-
wooden case
-
Weight:
-
2kg
-
Size:
-
200x80x80mm
-
Weight (KG):
-
2 kg
-
Usage:
-
Liquid oiled filter
-
Feature:
-
large flow per unit area
Quick Details
-
Core Components:
-
filter mesh
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZHEHAN
-
Material:
-
wooden case
-
Weight:
-
2kg
-
Size:
-
200x80x80mm
-
Weight (KG):
-
2 kg
-
Usage:
-
Liquid oiled filter
-
Feature:
-
large flow per unit area
Product description

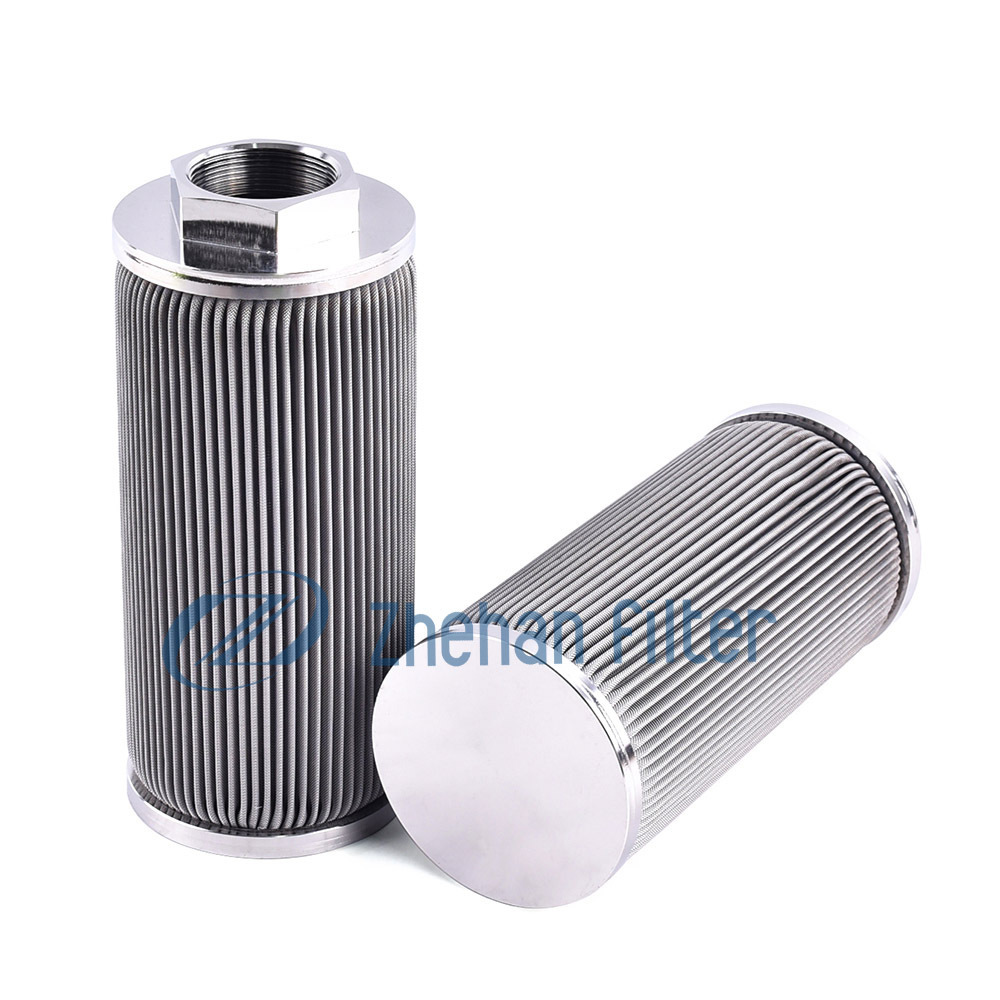

Pleat filter element
also named stainless steel pleated filter element ,made of pleated stainless steel sintered fiber mesh and stainless steel weaving wire cloth.
|
Product Name
|
Stainless Steel Pleated Filter Element Cartridge
|
|
Material
|
SS304,SS316,SS316L
|
|
Diameter
|
10-500mm
|
|
Length
|
10-2000mm
|
|
Filter Precision
|
1-300um
|
|
Filter efficiency
|
≥95%
|
|
Working pressure
|
30Mpa
|
|
Working temperature
|
≤600°C
|
|
Main filter media
|
Stainless steel sintered fiber mesh and stainless steel wire woven cloth
|
|
Installing form
|
Standard (using o-ring to seal), thread, tie rod, flange, fast interface
|
|
MOQ
|
20Pcs
|
Remarks:
1. Bubble point press test in accordance to ISO 4003.
2. Average air permeability in accordance to ISO 4022, the air pressure 200P.
3. Dirt holding capacity in accordance to ISO 4572. Final pressure drop is 8 times of initial pressure drop.
1. Bubble point press test in accordance to ISO 4003.
2. Average air permeability in accordance to ISO 4022, the air pressure 200P.
3. Dirt holding capacity in accordance to ISO 4572. Final pressure drop is 8 times of initial pressure drop.
Details images
Structure of Pleated Filter Element:
We produced these designs:
Welcome to share us your design for accurate quotation.
Such as the specifications:Diameter,Length,Filtration Rate,Connector style(If Thread style:Thread Number and Pitch)
Connectors of Pleated Filter Cartridge/Element
1: Standard connector (222/220/226)
2: Tri-clamp
3:
Thread
4: Flange
5: Pull rod connector
6: Customized connector.
2 Different raw materials of Pleated Filter element:
Feature of Pleated Filter Cartridge:
* Smooth wire pore.
* High filtration rating.
* Great dirty holding capacity.
* Excellent permeability.
* High precision and reliable standard specification.
* High porosity makes it low pressure drop.
* Resist high temperature.
* Corrosion resistance.
* Repeatedly and easy cleanable.
* Low cost and maintenance.
* Long service life.
* Other size customization.
* Smooth wire pore.
* High filtration rating.
* Great dirty holding capacity.
* Excellent permeability.
* High precision and reliable standard specification.
* High porosity makes it low pressure drop.
* Resist high temperature.
* Corrosion resistance.
* Repeatedly and easy cleanable.
* Low cost and maintenance.
* Long service life.
* Other size customization.
Packing & Delivery
Application
* Hydraulic oil and fuel filtration.
* Hot gas filtration.
* Hot lube filtration.
* Clarity filtration.
* Gas-liquid separation.
* Oil filtration.
* Aerosol application.
* Cross flow filtration.
* Polymer filtration.
* High temperature process.
* Process steam.
* Medical and analysis devices.
* Hot gas filtration.
* Hot lube filtration.
* Clarity filtration.
* Gas-liquid separation.
* Oil filtration.
* Aerosol application.
* Cross flow filtration.
* Polymer filtration.
* High temperature process.
* Process steam.
* Medical and analysis devices.
Workshop Display
Certicfication
Company profile
Zhehan Filter Equipment Co., Ltd. is a professional manufacturer with 10 years history, advanced equipment and standardized management, specializing in the manufacture of stainless-steel filters and filter elements.
We hope our products can meet your requirement !
Our main products are sintered mesh, wedge wire filter cartridge, pleated filter cartridge, perforated filter cartridge, sintered mesh filter cartridge, filter disc, filter basket and various filters with stainless steel material. They are widely used in petroleum, chemical industry, food and beverage, pharmaceutical industry, steel industry, mining and energy, metallurgy and machinery manufacturing.
We have achieved win-win result with our customers all over the world by guaranteeing the delivery in good quality, short lead time and excellent after-sale service.
We hope our products can meet your requirement !
Contact Us
FAQ
Q: Why choose us?
A: Our factory has nearly 10 years' experience for stainless steel filters and filter elements, you'll get the TOP quality, BEST price and SHORT leading time.
Q: Can I place an order for some samples?
A: Yes.Of course. You can order some samples to check the quality
Q:How can I know how my order is being done?
A:We will inspect and test all items in order to avoid damage and missing parts before shipping. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
Q: Can you give warranty of your products?
A:Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately.We produce strictly as contract, and pay more attention on raw materials, specifications, quality checking, package, transportation to ensure you will get good products.
Q: Is there any after-sale services from your side?
Yes, if you meet any problems while using, just feel free to contact us, we will provide professional technical guidance, we treat every customer as our best friend!
A: Our factory has nearly 10 years' experience for stainless steel filters and filter elements, you'll get the TOP quality, BEST price and SHORT leading time.
Q: Can I place an order for some samples?
A: Yes.Of course. You can order some samples to check the quality
Q:How can I know how my order is being done?
A:We will inspect and test all items in order to avoid damage and missing parts before shipping. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
Q: Can you give warranty of your products?
A:Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately.We produce strictly as contract, and pay more attention on raw materials, specifications, quality checking, package, transportation to ensure you will get good products.
Q: Is there any after-sale services from your side?
Yes, if you meet any problems while using, just feel free to contact us, we will provide professional technical guidance, we treat every customer as our best friend!
