The following sheet is the parameters of this model, if you need the parameters of other models, please feel free to
Contact SZOMK
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-

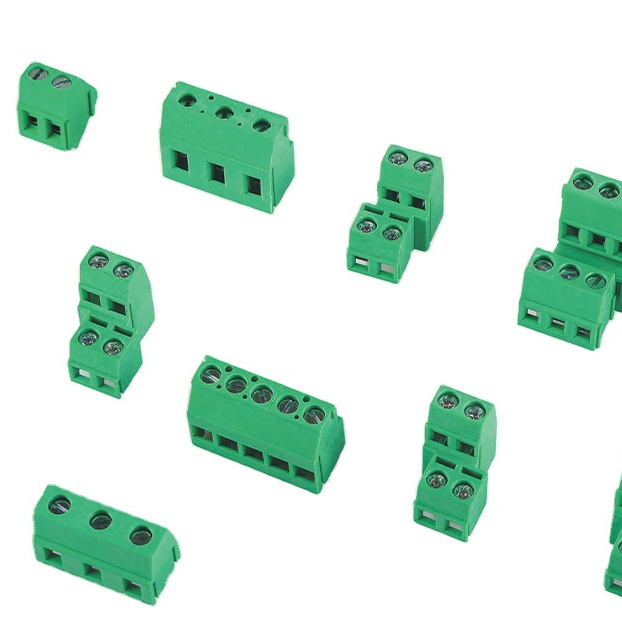

Screw Terminal Block
-
Connect:
-
2.54mm-10.16mm
-
Pitch:
-
custom
-
Plug mode:
-
90°, 135°, 180°
-
Ambient temperature:
-
-40C-+105°C
-
Insulation material:
-
PA66/IUL94V-0
-
Screw:
-
M2,M2.5,M3,M4,,steel,CrZn Plated
-
Cage:
-
Copper alloy,Ni plated
-
Relevant standard:
-
UL1059,UL486E,CSA22.2 N0.158,IEC60998,GB13140
-
Application:
-
Automation, rail transportation, instrumentation,electrical control
Quick Details
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
SZOMK
-
Model Number:
-
Screw Terminal Block
-
Product name:
-
Screw Terminal Block
-
Connect:
-
2.54mm-10.16mm
-
Pitch:
-
custom
-
Plug mode:
-
90°, 135°, 180°
-
Ambient temperature:
-
-40C-+105°C
-
Insulation material:
-
PA66/IUL94V-0
-
Screw:
-
M2,M2.5,M3,M4,,steel,CrZn Plated
-
Cage:
-
Copper alloy,Ni plated
-
Relevant standard:
-
UL1059,UL486E,CSA22.2 N0.158,IEC60998,GB13140
-
Application:
-
Automation, rail transportation, instrumentation,electrical control
Product Description
RJ103-5.0
Pitch:5.0mm(197")
Poles:2P,3P-24P
|
※Electrical
|
|
|
|
|||
|
IEC/DIN VDE Techinical data
|
|
|
|
|||
|
Rated current
|
|
|
24A
|
|||
|
Rated ins ulation voltage with pollution degree2
|
|
|
250V
|
|||
|
Surge voltage category/pollution degree
Ⅲ/3Ⅲ/2Ⅱ/2 |
|
|
|
|||
|
Rated insulation voltage
|
|
250V250V630V
|
|
|||
|
Rated surge voltage
|
|
4KV4KV4KV
|
|
|||
|
UL/CUL(Approval data) Use Group
|
|
BCD
|
|
|||
|
Rated voltage
|
|
300V-300V
|
|
|||
|
Rated current
|
|
10A-10A
|
|
|||
|
Connection capacity
|
|
-
|
|
|||
|
Solid/stranded
|
|
0.5-2.5mm²/0.5-2.5mm²/24-12AWG
|
|
|||
|
Stranded with ferrule withoutplastic sleeve
|
|
0.25-1.5mm²
|
|
|||
|
Stranded with ferrule with plasticsleeve
|
|
0.25-1.5mm²
|
|
|||
|
Multiple connection(2 conductorswith same cross section)
|
|
-
|
|
|||
|
Solid/stranded
|
|
0.75-1.0mm²
|
|
|||
|
Stranded with ferrule withoutplastic sleeve
|
|
0.25-0.5mm²
|
|
|||
|
Stranded with TWIN ferrule withplastic sleeve
|
|
0.25-1mm²
|
|
|||
|
※Mechanical
|
|
|
|
|||
|
Torque
|
|
0.4N. m(3.5Lb-ln)
|
|
|||
|
Ambient temperature
|
|
-40℃~+105℃
|
|
|||
|
Stripping length
|
|
7mm
|
|
|||
|
※Dimension
|
|
|
|
|||
|
Pitch
|
5.0mm(.197")
|
|
|
|||
|
poles
|
2P,3p-24P
|
|
|
|||
|
※Material
|
|
|
|
|||
|
insulation material/Group
|
|
PA66/I,UL94V-0
|
|
|||
|
Screw
|
|
M2.5, steel,Cr³⁺Zn Plated
|
|
|||
|
Pin header
|
Copper alloy, Tin Plated
|
|
|
|||
|
Wire guard
|
Phosphor bronze, Ni Plated
|
|
|
|||
