Quick Details
-
Brand Name:
-
ansmart
-
Model Number:
-
iface302
-
CPU:
-
Multi-Bio CPU 630 MHz
-
Memory:
-
256M Flash, 64M SDRAM
-
Hardware Platform:
-
ZMM220 Multi-Medium Development Platform
-
Fingerprint Sensor:
-
Optical Fingerprint Sensor without film
-
Camera:
-
High Resolution Infrared Camera
-
Display:
-
4.3 TFT touch screen
-
Face/Fingerprint capacity:
-
500 (1:N)/2000
-
Card capacity:
-
10000(Optional)
-
Logs capacity:
-
100,000
-
Communication:
-
TCP/IP,RS232/485
Quick Details
-
Special Features:
-
Other
-
Customized support:
-
Software reengineering, OEM, ODM, Customized logo, Online technical support
-
Place of Origin:
-
China
-
Brand Name:
-
ansmart
-
Model Number:
-
iface302
-
CPU:
-
Multi-Bio CPU 630 MHz
-
Memory:
-
256M Flash, 64M SDRAM
-
Hardware Platform:
-
ZMM220 Multi-Medium Development Platform
-
Fingerprint Sensor:
-
Optical Fingerprint Sensor without film
-
Camera:
-
High Resolution Infrared Camera
-
Display:
-
4.3 TFT touch screen
-
Face/Fingerprint capacity:
-
500 (1:N)/2000
-
Card capacity:
-
10000(Optional)
-
Logs capacity:
-
100,000
-
Communication:
-
TCP/IP,RS232/485
Specification

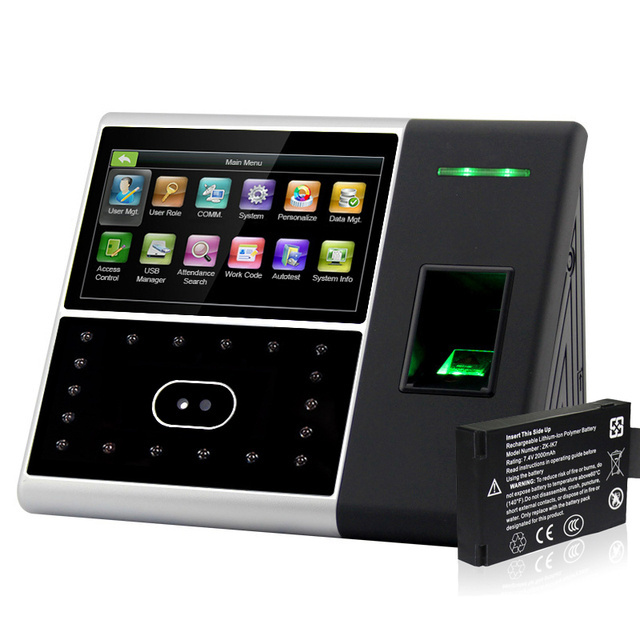

iFace302 multi-biometric identification time attendance and access control terminal adopts ZK latest ZMM220 platform with Face 7.0 algorithm and large capacity memory. iFace series integrated 630MHz high speed ZK Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of iFace are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP, optional WiFi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure.
Features:
Identification methods include Face, Fingerprint/RFID and/or Password
Elegant ergonomic design
4.3 TFT touch screen is user-friendly and very intuitive
6 user-defined function keys
Contact relays for door access control (wires to door strike or 3rd party panel)
Optional Web-server management software via IE browser
Optional extendable scheduled-bell
Infra-red optical system enables user-identification in poorly lit environments
Optional built-in battery backup provides approx 4 hours continuous operation.
Optional built-in wireless Wi-Fi or GPRS for wireless communication
Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell.
Wiegand Output for connections to 3rd party access control panels.
Features:
Identification methods include Face, Fingerprint/RFID and/or Password
Elegant ergonomic design
4.3 TFT touch screen is user-friendly and very intuitive
6 user-defined function keys
Contact relays for door access control (wires to door strike or 3rd party panel)
Optional Web-server management software via IE browser
Optional extendable scheduled-bell
Infra-red optical system enables user-identification in poorly lit environments
Optional built-in battery backup provides approx 4 hours continuous operation.
Optional built-in wireless Wi-Fi or GPRS for wireless communication
Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell.
Wiegand Output for connections to 3rd party access control panels.
|
Customized support
|
Software reengineering, OEM, ODM, Customized logo, Online technical support
|
|
Model Number
|
iface302
|
|
Type
|
Face, fingerprint, rfid
|
|
CPU
|
Multi-Bio CPU 630 MHz
|
|
Memory
|
256M Flash, 64M SDRAM
|
|
Hardware Platform
|
ZMM220 Multi-Medium Development Platform
|
|
Fingerprint Sensor
|
Optical Fingerprint Sensor without film
|
|
Camera
|
High Resolution Infrared Camera
|
|
Display
|
4.3 TFT touch screen
|
|
Face/Fingerprint capacity
|
500 (1:N)/2000
|
|
Card capacity
|
10000(Optional)
|
|
Logs capacity
|
100,000
|
|
Communication
|
TCP/IP,RS232/485
|
|
Algorithm Version
|
Face 7.0 & Finger 10.0
|
|
USB-HOST
|
Y
|
|
Wireless Wi-Fi
|
Optional
|
|
Time attendance Standard functions
|
Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST
|
|
Access control interfaces for
|
3rd party electric lock, door sensor, exit button
|
|
Optional functions
|
serial printer, RFID card, Mifare card, Extendable Scheduled-bell, Short Massage, Web-server, GPRS
|
|
Operating temp
|
0C- 45 C
|
|
Power supply
|
12V3A
|
Product Description
Software
Packing & Delivery
one pc per box, 6 pcs per carton
