- Product Details
- {{item.text}}
Quick Details
-
Power:
-
0.125KW
-
Weight:
-
30
-
Dimension(L*W*H):
-
420*330*550mm
-
Product name:
-
Lab Test Vibrating Soil Screen Sieve Separator
-
Name:
-
Lab Test Vibrating sieve for Soil
-
Material:
-
Stainless Steel 304
-
Usage:
-
Fine Particles Screening
-
Function:
-
Screening\separation\sorting\sieving
-
Capacity:
-
2 KG~20 KG/H
-
Layer(s):
-
1-8 Layers
-
Mesh size:
-
2-400 Mesh
-
Diameter:
-
200mm
-
Motor type:
-
Vibration motor
Quick Details
-
Place of Origin:
-
Henan, China
-
Marketing Type:
-
New Product 2022
-
Voltage:
-
220V
-
Power:
-
0.125KW
-
Weight:
-
30
-
Dimension(L*W*H):
-
420*330*550mm
-
Product name:
-
Lab Test Vibrating Soil Screen Sieve Separator
-
Name:
-
Lab Test Vibrating sieve for Soil
-
Material:
-
Stainless Steel 304
-
Usage:
-
Fine Particles Screening
-
Function:
-
Screening\separation\sorting\sieving
-
Capacity:
-
2 KG~20 KG/H
-
Layer(s):
-
1-8 Layers
-
Mesh size:
-
2-400 Mesh
-
Diameter:
-
200mm
-
Motor type:
-
Vibration motor

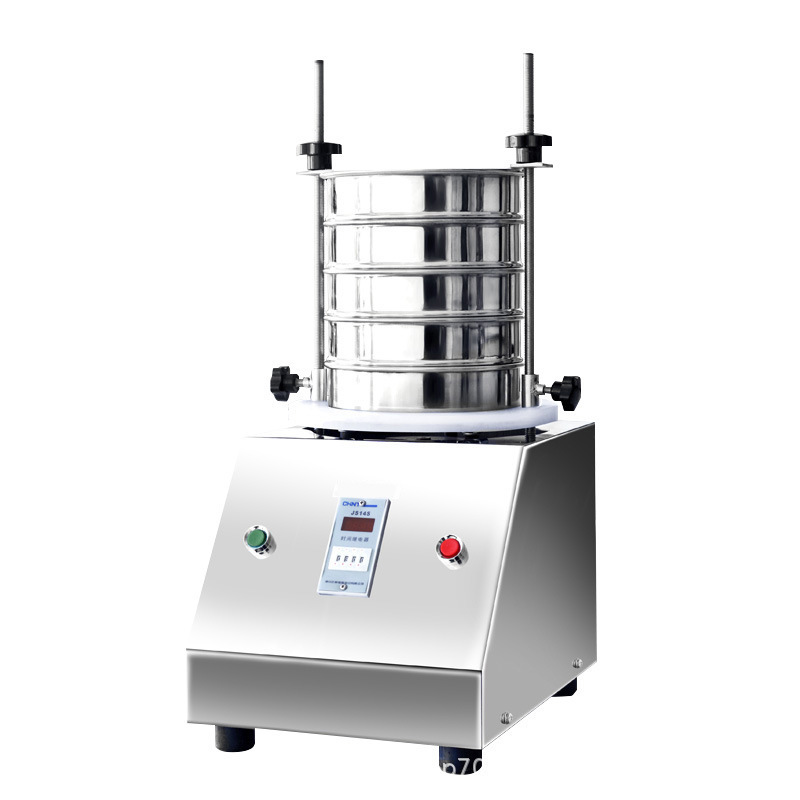

Lab Test Vibrating Soil Screen Sieve Separator
Product Description
Lab Test Vibrating Soil Screen Sieve Separator
is a multi-layers from 1-8 layers of analyzing sieve is used for grading of powder and granules, as well as filtration of liquid, which is mainly applied in lab, quality controlling room to precise analysis of granularity structure for granules and powders.
Specification
|
Description
|
Diameter 200 mm lab test sieve
|
|
Material
|
All stainless steel 304
|
|
Layers
|
1-8 layers
|
|
Diameter
|
φ200 mm
|
|
Granularity
|
0.038-3 mm
|
|
Noise
|
≤50 dB
|
|
Rotation speed
|
1420r/min
|
|
Voltage
|
220V, 50Hz
|
|
Motor
|
0.125 kw
|
|
Amplitude
|
≤5 mm
|
Details Images
Test sieves
Sieve cover
Vibration motor
Connection line
Course sieve
Fine sieve
Application
Diameter 200mm Laboratory Vibro Shaker Circular Test Sieve Shaker
has prominent advantages in solving materials sieving problems such as high absorption, easy agglomeration, high static, high precision degree, light weight.
Packing & Delivery
Standard export package of wooden case by shipping by courier.
Recommend Products
Customer Photos
FAQ
1.What is the product you want to sieve?
For example: flour powder.
2.How about the features of product? (Like moisture and bulk density)
Like: 1%-10%; 1.25g/cm³.
3.What's the mesh size(product/particle size) you need?
Like: 80mesh(0.18mm), 100mesh(0.15mm).
4.How much the capacity(kg/h) you want?
Like: 600-800kg/h.
For example: flour powder.
2.How about the features of product? (Like moisture and bulk density)
Like: 1%-10%; 1.25g/cm³.
3.What's the mesh size(product/particle size) you need?
Like: 80mesh(0.18mm), 100mesh(0.15mm).
4.How much the capacity(kg/h) you want?
Like: 600-800kg/h.
