31oz Paper Bowls machinery full automatic paper bowl machine with gear open cam system

31oz Paper Bowls machinery full automatic paper bowl machine with gear open cam system

FOB Reference Price: Get Latest Price

≥1 Sets

US $16000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380v 50Hz

Power:: 15KW

Dimension(L*W*H):: 2600*1450*1900mm

Weight:: 2300 kg

condition:: New

Machine Type:: XL-ZWA

bowl size:: 20-50 onz

material requirement:: 140-350 gsm pe coated paper

Air pressure requirement:: 0.6Mpa

FOB port:: Ningbo

Inspection video:: Provided

Certification:: CE

after-sale service:: online technology support

Quick Details

Production Capacity:: 60-70pcs/min

Place of Origin:: Zhejiang, China

Brand Name:: xinlei

Voltage:: 380v 50Hz

Power:: 15KW

Dimension(L*W*H):: 2600*1450*1900mm

Weight:: 2300 kg

condition:: New

Machine Type:: XL-ZWA

bowl size:: 20-50 onz

material requirement:: 140-350 gsm pe coated paper

Air pressure requirement:: 0.6Mpa

FOB port:: Ningbo

Inspection video:: Provided

Certification:: CE

after-sale service:: online technology support

Product Overview

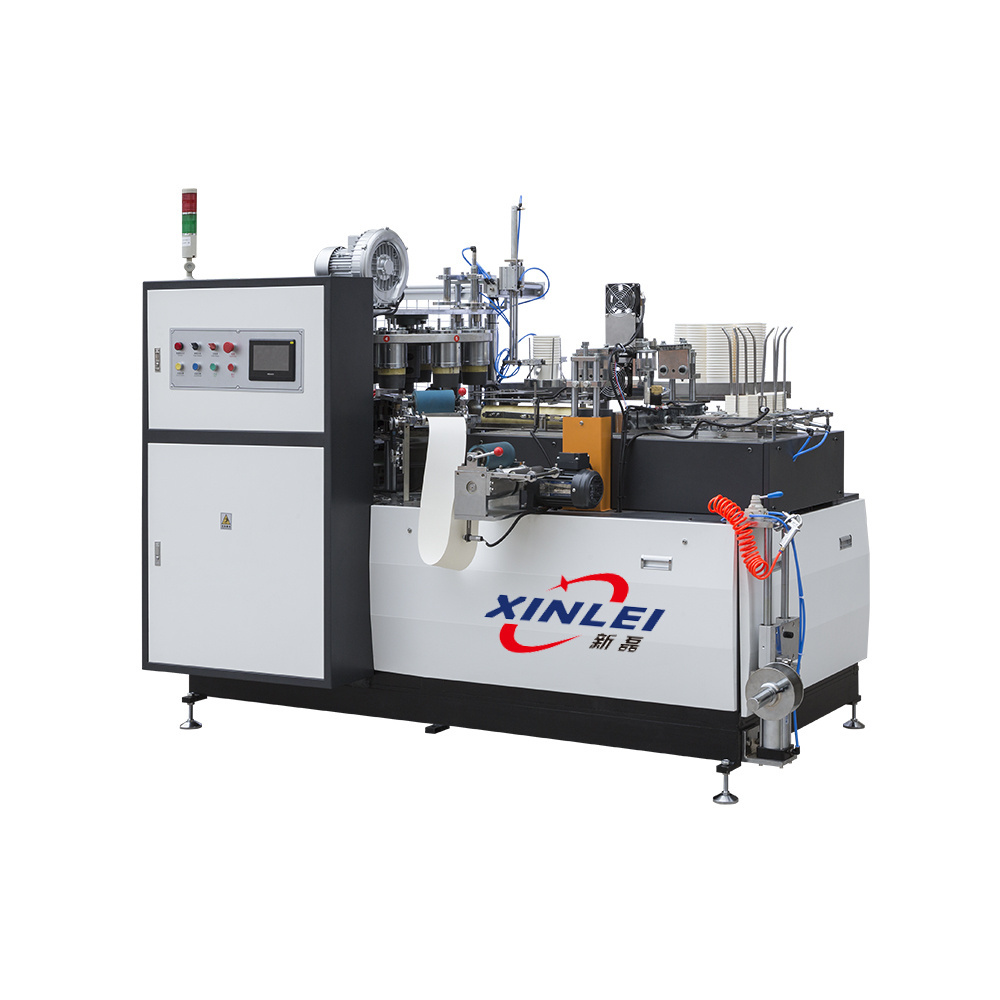

paper bowl machine

XL-ZWA paper bowl machine is for 20-50oz size paper bowls making,using latest advanced single turn plate design and gear cam system,it can fully automatic to paper feeding, cups side sealing, bottom knurling and top curling without workers operation.

The machine speed is 60-70pcs/min, it is suitable produce quality paper soup and noodles container.

if you want to know more about machine details, pls feel free to contact with us.

FEATURES AT A GLANCE

gear cam system,

auto oiling

single plate design

with PLC,touch screen

with ultrasonic

with collection table

servo motor for waste bottom paper deliver

workshop 1

workshop 2

workshop 3

PRODUCT SPECIFICATIONS

No	Item	Data
1	type	XL-ZWA
2	speed	60-70pcs/min
3	bowl size	20-50 onz (Customized)
4	material requirement	pe coated paper
5	paper weight	140-350 gsm
6	machine weight	2300 kg
7	total power	15kw
8	machine size	260014501900mm
