Quick Details
-
Model Number:
-
21SW152-8NW
-
Dimension (L x W x H):
-
21 inch
-
Sensitivity(1w/1m)::
-
96dB
-
Voice Coil Diameter:
-
153mm
-
Winding Material:
-
Copper
-
Magnet Material:
-
Neodymium
-
Nominal Impedance:
-
8Ω
-
Fs:
-
32Hz
-
Re:
-
6.0Ω
-
Qms:
-
6.4
-
Le:
-
2.2mH
-
BL:
-
38.5tM
Quick Details
-
Power:
-
3600W
-
Frequency Range (Hz):
-
30-1000HZ
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
21SW152-8NW
-
Dimension (L x W x H):
-
21 inch
-
Sensitivity(1w/1m)::
-
96dB
-
Voice Coil Diameter:
-
153mm
-
Winding Material:
-
Copper
-
Magnet Material:
-
Neodymium
-
Nominal Impedance:
-
8Ω
-
Fs:
-
32Hz
-
Re:
-
6.0Ω
-
Qms:
-
6.4
-
Le:
-
2.2mH
-
BL:
-
38.5tM
Product Description
KEY FEATURES:
* 96dB SPL 1W / 1m sensitivity
* 153mm (6.0in) copper voice coil
* 1800W IEC power handling
* 3600W Long-term Maximum Power Handling （RMS power)
* 7200W Short-term Maximum Power Handing ( Peak power)
* 30-1000 Hz Frequency response
* Aluminum demodulating ring for lower distortion
* Heavy-duty cast aluminum chassis for increased rigidity
* Double silicon spider for superior excursion control and linearity
* Suitable for high SPL subwoofer designs
|
GENERAL SPECIFICATIONS
|
|
|
|
|||
|
Nominal Diameter
|
|
550 mm (21in)
|
|
|||
|
Nominal Impedance
|
|
8Ω
|
|
|||
|
Minimum Impedance
|
|
7Ω
|
|
|||
|
IEC Power Rating
1
|
|
1800W
|
|
|||
|
Long-term Maximum Power Handling
2
|
|
3600W
|
|
|||
|
Short-term Maximum Power Handing
3
|
|
7200W
|
|
|||
|
Sensitivity (1W/1m)
4
|
|
96dB
|
|
|||
|
Frequency Range
|
|
30Hz-1kHZ
|
|
|||
|
Voice Coil Diameter
|
|
153mm
|
|
|||
|
Winding Material
|
|
Copper
|
|
|||
|
Former Material
|
|
Glass Fiber
|
|
|||
|
Winding Depth
|
|
32mm
|
|
|||
|
Magnetic Gap Depth
|
|
12mm
|
|
|||
|
Xmax
5
|
|
15mm
|
|
|||
|
Flux Density
|
|
1.15T
|
|
|||
|
Basket Material
|
|
Cast Aluminum
|
|
|||
|
Magnet Material
|
|
Neodymium
|
|
|||
|
Suspension Material
|
|
Double Fabric
|
|
|||
|
Surround Material
|
|
W-Roll Cloth- sealed
|
|
|||
|
Cone Material
|
|
Curvilinear Paper
|
|
|||
|
Net Weight
|
|
18.2kg
|
|
|||
|
DIMENSIONS
|
|
|
|
|||
|
Overall Diameter
|
|
550mm
|
|
|||
|
Total Depth
|
|
265mm
|
|
|||
|
Depth (Excl. Flange)
|
|
247mm
|
|
|||
|
Magnet Diameter
|
|
142mm
|
|
|||
NOTES:
1、100 hours test according to IEC 60268-5 standard. Power calculated on rated minimum impedance.
2、2 hours test according to IEC 60268-5 standard. Power calculated on rated minimum impedance.
3、2 hours test according to IEC 60268-5 standard. Power calculated on rated minimum impedance.
4、Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
5、Xmax = [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3).
|
TS Parameters
|
|
|
|
|||
|
Fs
|
|
32Hz
|
|
|||
|
Re
|
|
6.0Ω
|
|
|||
|
Qms
|
|
6.4
|
|
|||
|
Qes
|
|
0.38
|
|
|||
|
Qts
|
|
0.36
|
|
|||
|
Le
|
|
2.2mH
|
|
|||
|
BL
|
|
38.5Tm
|
|
|||
|
Mms
|
|
460g
|
|
|||
|
Mmd
|
|
420g
|
|
|||
|
Cms
|
|
0.05mm/N
|
|
|||
|
Vas
|
|
210litres
|
|
|||
|
Ref. Efficiency
|
|
2.0%
|
|
|||
|
Sd
|
|
1680cm
2
|
|
|||
|
EBP
|
|
84Hz
|
|
|||

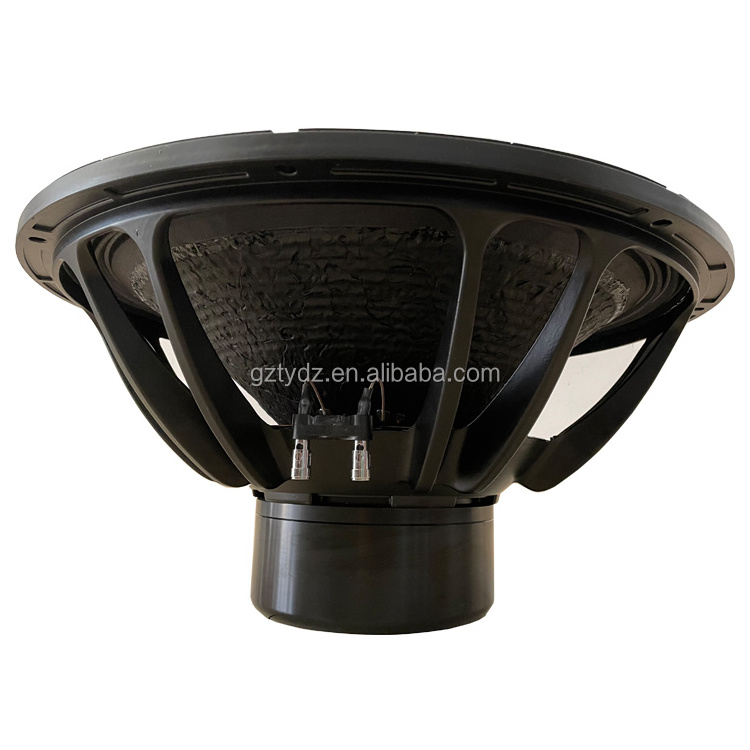

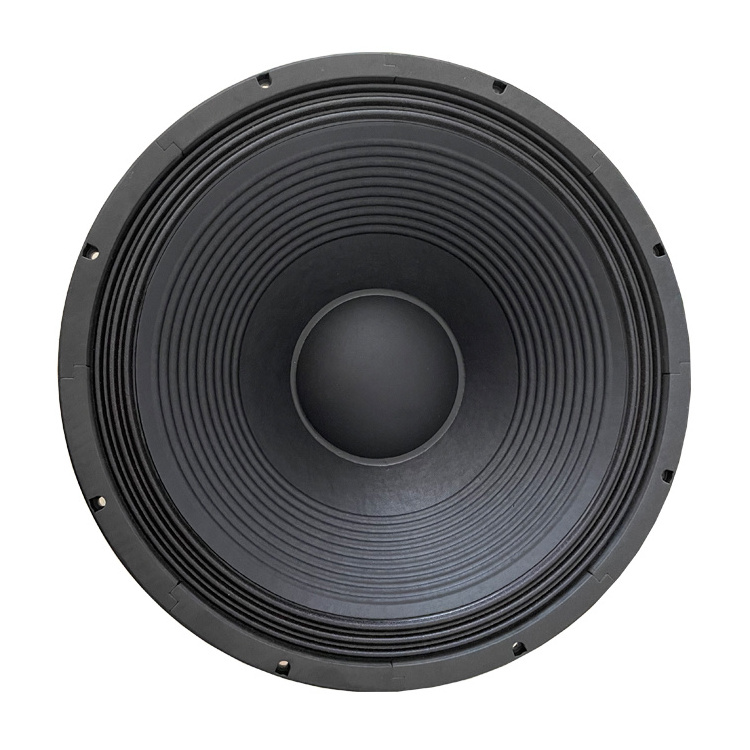

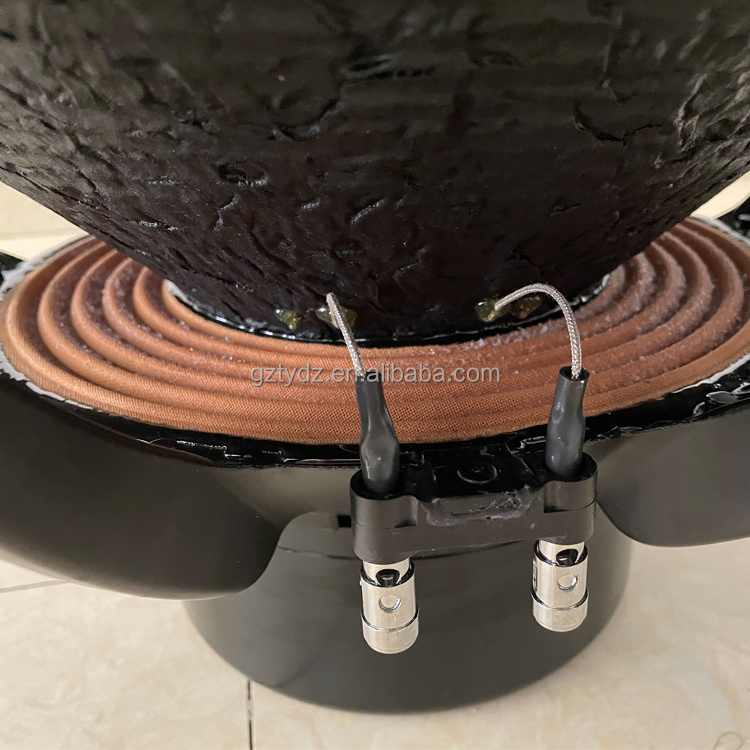

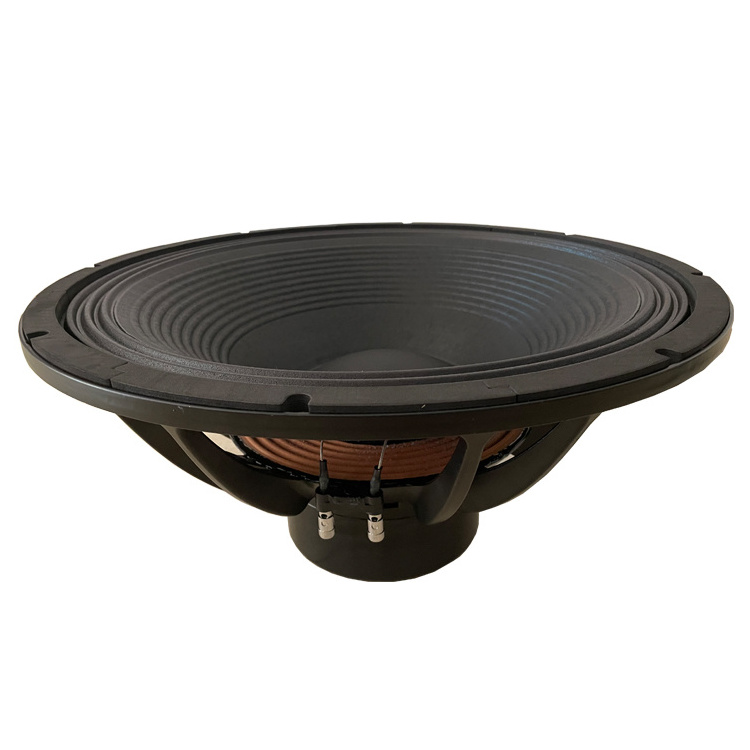

Details Images
