Hooanke DC 0/1-10V Knob LED Dimmer Mini Controller Rotary Switch PWM Dimming Off for 0-10V / 1-10V Dimmable LED Drivers

Hooanke DC 0/1-10V Knob LED Dimmer Mini Controller Rotary Switch PWM Dimming Off for 0-10V / 1-10V Dimmable LED Drivers

FOB Reference Price: Get Latest Price

≥50 Pieces

US $2.4

≥500 Pieces

US $2

≥5000 Pieces

US $1.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Hooanke

Product name:: 0-10v passive dimmer

Regulation voltage:: 0.5-10V

Effective dimming signal current (Max.):: 40mA

Signal voltage:: 0-10V

Dimmer adjustment range:: 5-100%

Working temperature:: -15~50 ℃

Wire length:: 13 inch

Installation:: Surface mounted or recessed

Features:: Connected to the 0-10V / 1-10V Dimmable LED Driver

Color:: Black+Red

Quick Details

Warranty(Year):: 1-Year

Type:: Knob LED Dimmer

Product Weight（kg）:: 0.04

Place of Origin:: Guangdong, China

Brand Name:: Hooanke

Product name:: 0-10v passive dimmer

Regulation voltage:: 0.5-10V

Effective dimming signal current (Max.):: 40mA

Signal voltage:: 0-10V

Dimmer adjustment range:: 5-100%

Working temperature:: -15~50 ℃

Wire length:: 13 inch

Installation:: Surface mounted or recessed

Features:: Connected to the 0-10V / 1-10V Dimmable LED Driver

Color:: Black+Red

Product Description

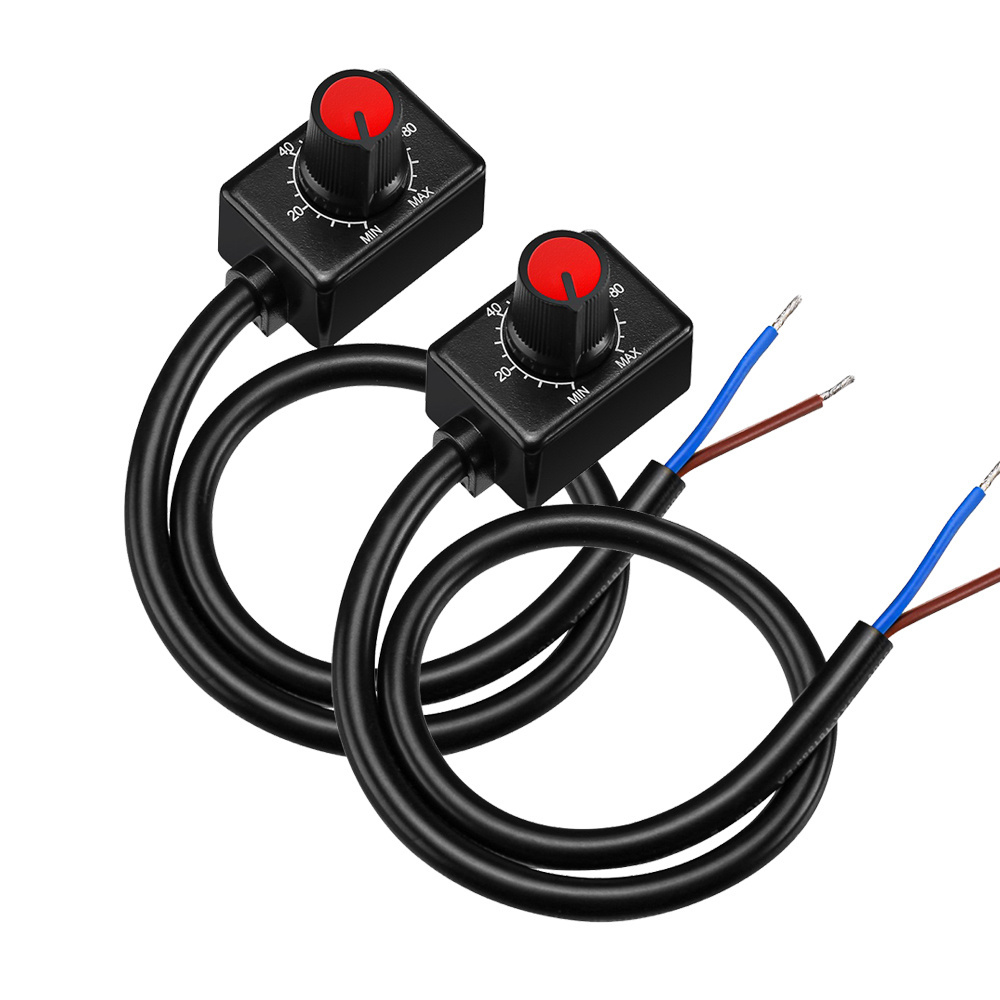

Hooanke DC 0/1-10V Low Voltage Passive Knob LED Dimmer PWM Dimming for LED Lights

* This 0/1-10V LED Dimmer is ONLY need to be connected the 0-10V / 1-10V Dimmable LED Driver. And it can be compatible with most of the LED drivers.

* The low voltage electronic dimmer is for the LED lights that have a separate dimmer circuit. It's specifically made to drive a PWM circuit built into the light.

* Dimmer adjustment range: 5-100%, stepless dimming and no flickering or humming.

* Small size: 0.9*1.3*1.3 inch (including knob height); Wire length: 13 inch.

* Easy to install. Brown line is "DIM +",Blue line is "DIM -". PLEASE NOTE: DO NOT connect it with AC power directly.

Specifications

* Regulation voltage: 0.5-10V
* Effective dimming signal current (Max.): 40mA
* Signal voltage: 0-10V
* Brown line is positive pole, connect with DIM+ on LED driver.
* Blue line is negative pole ,connect with DIM- on LED driver.
* Dimmer adjustment range: 5-100%, stepless dimming, no flicking and anti-interference.
* 100% compatible with all the LED driver with 0-10V dimming signal.
* Working temperature: -15~50 ℃
* Dimension: 0.9*1.3*1.3 inch (including knob height).
* Wire length: 13 inch
* Installation: Surface mounted or recessed.

Please note

This 0-10V or 1-10V DC LED Dimmer Knob Controller Rotary, which can be widely used with downlight, track light, wall washer light, plant light, etc. Place the driver away from direct heat sources and in well-aired spaces. If the driver is built-in, sufficient ventilation must be ensured.
