Quick Details
-
Voltage:
-
380V
-
Power:
-
9kw
-
Dimension(L*W*H):
-
2900x1560x1780mm
-
Weight:
-
3000 kg
-
Color:
-
Cutomized
-
Automatic Grade:
-
Full-Automatic
-
Advantage:
-
Easy Operation Aoto Cutting
-
After Warranty Service:
-
Video technical support
-
Warranty Service:
-
Spare parts
-
Local Service Location:
-
None
-
After sales Service Provided:
-
Video technical support
Quick Details
-
Production Capacity:
-
55 pcs/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KEEPON
-
Voltage:
-
380V
-
Power:
-
9kw
-
Dimension(L*W*H):
-
2900x1560x1780mm
-
Weight:
-
3000 kg
-
Color:
-
Cutomized
-
Automatic Grade:
-
Full-Automatic
-
Advantage:
-
Easy Operation Aoto Cutting
-
After Warranty Service:
-
Video technical support
-
Warranty Service:
-
Spare parts
-
Local Service Location:
-
None
-
After sales Service Provided:
-
Video technical support

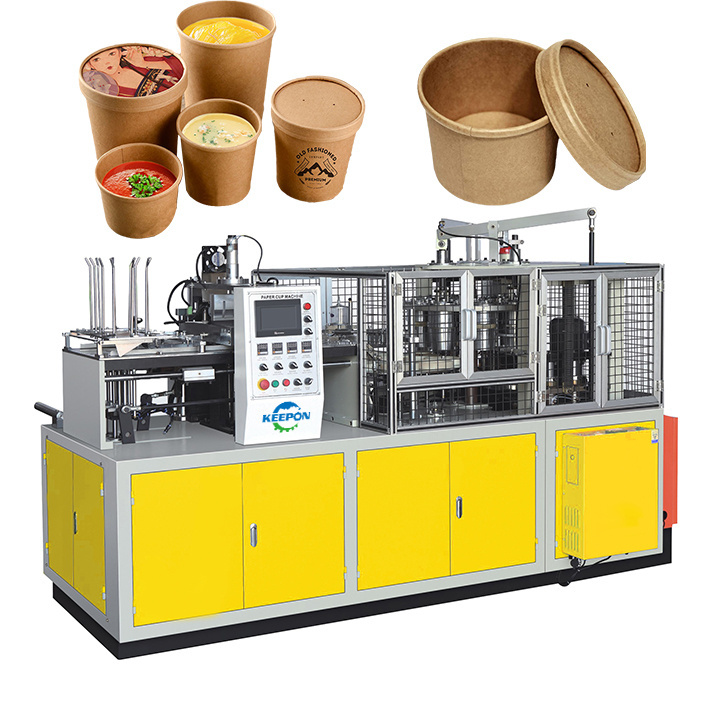

LB120-3600B Paper bowl forming machine
LB120-3600B Paper bowl forming machine is a kind of full automatic forming machine. It has functions of feeding the paper automatically, ultrasonic sealing, bottom punching, bottom folding, preheating, bottom knurling etc. It has the invertor for automatic speed adjusted, and the bottom punching is adopted step motor (when there is paper body, the bottom paper will be send, if not, the bottom paper will not send, this can save the paper, no waste). The inner structure adopts vertical axis to drive the motor. And it is with automatic lubrication system to reduce the friction of each mechanical part, and no need to add the oil by manual. The machine stops automatically if any problem which controlled by sensors we installed, so that the machine is well protected and becomes more durable. We adopt separate cam drivers on the left and right of cup side sealing device, so the working status is quiet and stable, which is the top technology owned by us in China.
|
Size of cup (Max.) |
32oz ( can be adjusted by mould ) |
|||
|
The bowl size |
Height:110mm |
Height:139mm |
Height:177mm |
Height:205mm |
|
Max top diameter:150mm bottom diameter: 128mm (Other model bigger diameter) |
||||
|
The material of paper |
180-350gsm ( single or double pe coated paper ) |
|||
|
Speed of production |
50-55pcs/min |
|||
|
Power supply |
380v/220v 50Hz 3PH |
|||
|
Total power |
9kw |
|||
|
Weight |
3000kg |
|||
|
Overall dimensions |
2900x1560x1780mm ( LxWxH ) |
|||
