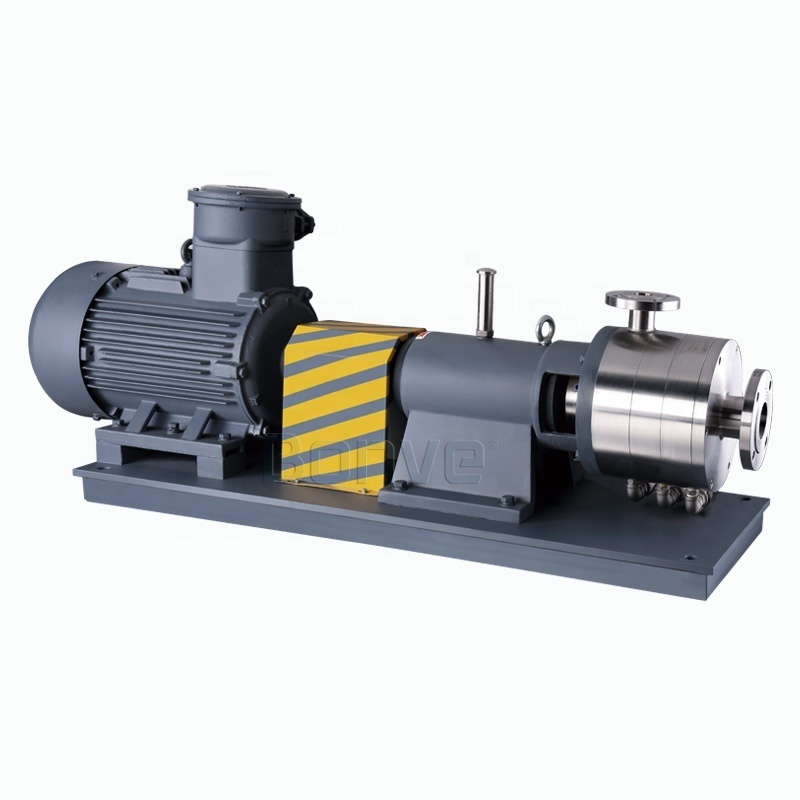

Stainless steel high shear homogenizer/mixer/emulsifying/disperser inline homogenizer pump for fertilizer

Stainless steel high shear homogenizer/mixer/emulsifying/disperser inline homogenizer pump for fertilizer

FOB Reference Price: Get Latest Price

≥1 Sets

US $3500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max. Loading Capacity:: Matched different size tanks

Weight (KG):: 500 KG

Place of Origin:: Zhejiang, China

Brand Name:: Bonve

Voltage:: 220-240V,380-420V

Dimension(L*W*H):: mm

Power (kW):: 18.5 kW

Name:: Homogenizer pump

Nos. of rotor and stator:: 1 stage, 2 stage or 3 stage

Rotor dia.:: 185mm

Connection type:: Clamp, thread, flange

Driving:: 2-pole, 4-pole motor

Homogenizer Speed:: 0-3600rpm

Function:: Mixing, shearing, emulsifying, homogenizing

Advantage:: Energy Saving, low maintenance

Quick Details

Barrel Volume (L):: 2000

Max. Loading Volume (L):: 3000 L

Range of Spindle Speed(r.p.m):: 1 - 3000 r.p.m

Max. Loading Capacity:: Matched different size tanks

Weight (KG):: 500 KG

Place of Origin:: Zhejiang, China

Brand Name:: Bonve

Voltage:: 220-240V,380-420V

Dimension(L*W*H):: mm

Power (kW):: 18.5 kW

Name:: Homogenizer pump

Nos. of rotor and stator:: 1 stage, 2 stage or 3 stage

Rotor dia.:: 185mm

Connection type:: Clamp, thread, flange

Driving:: 2-pole, 4-pole motor

Homogenizer Speed:: 0-3600rpm

Function:: Mixing, shearing, emulsifying, homogenizing

Advantage:: Energy Saving, low maintenance

Bonve offers the broadest tange of its homogenizer mixers for many applications. Over the years, Bonve has been focused on communication with customers and constantly optimize our mixers to be low maintenance, long-life cycle and environmental friendly. We select the homogenizer according to your characteristics of medium and condition of the technological requirements, bring you the best homogenizer for your critical process, satisfied by you and your customers.

Brief Introduction

Bonve Sanitary Grade Homogenizer Mixers are an efficient type machine with mixing, dispersion, breaking, dissolution, refinery, homogenization and emulsifying. It is an ideal machine to be instead of colloid mill, ball mill and high pressure homogenizer. The machine can greatly simplify the traditional productions and upgrade the production efficiency and product quality.

How It Works?

The main parts are stators and rotors. At centrifugal and fluid forces created by rapid turning of the rotors, the stators
exercise on the materials with strong power shearing, centrifugal pressing, breaking, fluid friction, turbulent. The processed materials (solid, fluid and gas phase) are quickly refined, homogenized, dis-aggregated and emulsified. The repeat of this process can result in stable and high-quality products.

Mian Technical Features

-Capacity: Self-pumping through puts of up to 130 T/H.
-No Bypassing: Product cannot bypass the precision rotor/stator work head.
-Work heads: Three stages rotors/stators.
-Materials of Construction: SS304, SS316 and 316L.
-Motor Specification: Explosion-Proof Motor. Standard power supply: 3ph, 380V, 50Hz.
-Inlet and Outlet Connections: Flange connection as standard.
-Sealing: Double-face water flushed mechanical shaft seals as standard.
-Jacket: Desinged for Heating medium oil with temperature 180-200 Celcius.

Bonve homogenizer mixer shorts for FHM pump, which has two series, FHM1 and FHM3 based on different numbers of rotor and stator (The pump with 2-stage rotor and stage can be made too) .

FHM1 series

FHM1 series with single stage rotor and stator

FHM1 series is equipped with one set multi-layer stator and rotor. Required to be used in the cyclic processing of medium and small batch production. For short distance transmission, homogeneous and emulsion.

FHM3 series

FHM3 series with three stage rotors and stators

FHM3 series is an extension of the FHM1 series. The working chamber is composed of three-stage rotor and stator. For applications that require greater and quicker homogenizing and emulsifying, FHM3 is used. It can be used in the cyclic processing of medium and large-scale production.

Technical Parameters

FHM1 series with one stage rotor and stator

Model	Power (kW)	Speed (r/min)	Capacity (m3/h)	Pressure (Mpa)	Inlet/Outlet (mm)
FHM1/140	5.5	2900	2	0.1	DN40/32
FHM1/165	7.5	2900	5	0.15	DN50/40
FHM1/185	11	2900	10	0.15	DN65/50
FHM1/200	15	2900	15	0.15	DN80/65
FHM1/220	22	2900	20	0.15	DN80/65
FHM1/240	30	2900	40	0.2	DN100/80
FHM1/260	37	2900	60	0.2	DN125/100
FHM1/300	45	2900	80	0.25	DN125/100

FHM3 series with three stage rotor and stator

Model	Power (kW)	Speed (r/min)	Capacity (m3/h)	Pressure (Mpa)	Inlet/Outlet (mm)
FHM3/140	11	2900	5	0.2	DN40/32
FHM3/165	18.5	2900	10	0.3	DN50/40
FHM3/185	30	2900	20	0.4	DN65/50
FHM3/200	45	2900	30	0.5	DN80/65
FHM3/220	55	2900	40	0.5	DN80/65
FHM3/240	90	2900	60	0.6	DN100/80
FHM3/260	132	2900	100	0.6	DN125/100
FHM3/300	160	2900	120	0.6	DN125/100

Remarks:

1. Abovedates are tested by water. For product with poor liquidity or require a higher discharge pressure, Bonve lobe pump

is advised to be installed before the homogenizer for transferring.

2. Port size can be changed as needed. Flange connection as starndard, clamp and thread as optional. 3. Motor matched is Siemens, ABB or equivalent brand. Normal type with 3ph/380V/50Hz as standard. 4. MOC: SS316 as standard, SS304, 316L and others as optional. 150°C (302°F) anti-heat seal. 5. Bonve reserves the right to change specifications without prior notification.

Applications

Refined chemistry: Pigment, dyestuff, plastic auxiliaries, textile auxiliaries, adhesives, resin emulsion, hot melt adhesive, sealing compound, glue, pulp, finishing agent, surface active agent, carbon black disperse, adhesive-proof agent, mold release agent, defoaming agent, fluorine cleaning agent, polishing agent, leather auxiliaries, pigment paste, wax emulsion, bactericide, coagulant, etc.

Petrochemistry: Lubricant, heavy oil emulsion, diesel oil emulsion, modified asphalt, catalyzer, wax emulsion etc. Biology & Pharmaceuticals: Injection, antibiotic, medical emulsion, medical paste, health products, mini-capsule emulsion, cell breaker, etc.

Paint & ink: Printing ink, paint, emulsion paint, building coating, nanometer coating, photocureable coating, coating auxiliaries, carbon black disperse, print ink, glaze, bentonite, etc.

Farm chemicals: Pesticide, herbicide, medicinal butter, fertilizer, pesticide adjuvant, etc.

Nanometer materials: Disperse and dis-aggregation for nanometer medium, etc.

Food stuff industry: Juice, jam, ice-cream, milk products, food addictive, tea drink, chocolate, bean milk, essence, milk, etc.

Consumer chemistry: Fluid detergent, skim cream, lip paste, face foam, silicon lio emulsion, household essence, skin care, cosmetics, etc.

Paper making: Pulp, filling, fry strength agent, wet strength agent, sizing agent, filtering agent, anti-foaming agent spreading, water treatment chemicals, etc.

Processing Diagram

1. High shear mixer working with power liquid homogenizing mixer
2. Bottom type high shear mixer working with FHM1 homogenizing mixer
3. Low speed agitator working with FHM3 homogenizing mixer
4. Multi-pipe FHM3 homogenizing mixer continuous production process
