Quick Details
-
GPS:
-
LTE
-
Function:
-
GPS RTK Survey (Radio)
-
material:
-
metal,waterproof
-
Application:
-
Monitoring System
-
Theory:
-
Temperature Sensor
-
Power:
-
Electric
-
Communication:
-
RS-485
-
Color:
-
Black
-
Display Type:
-
Analog and Digital
Quick Details
-
Place of Origin:
-
Hong Kong S.A.R.
-
Brand Name:
-
EASEMIND
-
Product name:
-
industrial temperature remote reading water meter data logger
-
GPS:
-
LTE
-
Function:
-
GPS RTK Survey (Radio)
-
material:
-
metal,waterproof
-
Application:
-
Monitoring System
-
Theory:
-
Temperature Sensor
-
Power:
-
Electric
-
Communication:
-
RS-485
-
Color:
-
Black
-
Display Type:
-
Analog and Digital

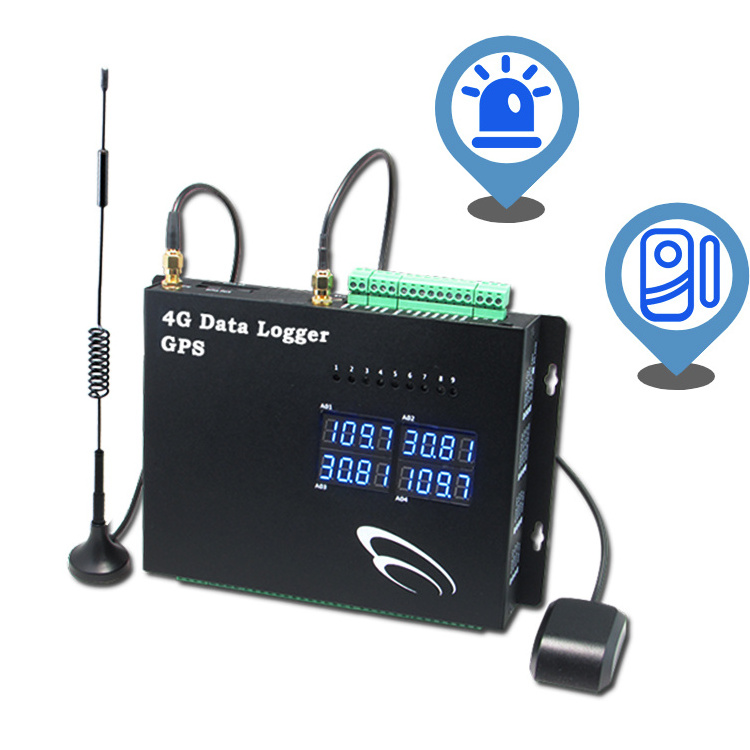

lora 4g GPS tracking industrial temperature remote reading water meter data logger
GSX8-HV-4GP
is a GPS data logger with multiple channels.
It provides data capturing and transmission over 4G network.
[detail]
It is a Temperature and Humidity Data Logger with built-in module supporting worldwide 4G mobile network.
4G Data Logger provides faster wireless connection in a more secure and reliable 4G mobile network.
Its built-in UPS feature providing user alert of AC power loss.
During power loss, operation is backed up by internal rechargeable battery.
Overview:
* real time GPS data
* 8 Temperature Sensors (max.)
* 1 Humidity Sensor
* 8 Analog Channels (max.)
* 10 Digital Inputs
* 4 Pulse Channels
* 4 Relay Outputs
* RS485 Data In
* 32GB SD memory card slot
Its internal 4MB memory logs ~30000 data records, and expandable to 32GB with SD card.
Data can be uploaded to server as fast as 5 seconds interval, or 24 hours to save power.
Progammable data logging interval starts from 1 minute up to 24 hours.
|
Power Input |
9 ~ 15VDC |
|
Display Type |
Analog and Digital |
|
Signal Type |
4~20mA or 0~5VDC |
|
Output |
5VDC |
|
Modbus Device Port |
RS485 & RS232 |
|
Data Upload Interval |
Programmable (1min ~ 24 hours) |
|
Pulse Channel |
On/Off Switching |
|
Industrial Protocol |
Modbus |
|
Digital Channel |
Alarm Dry Contact |
|
Alarm Trigger |
Digital Alarm / AD Level High or Low / Power Loss |
|
Temperature Sensors |
8 Temperature Sensors (max.) |
|
Humidity Sensor |
1 Humidity Sensor |
|
Analog Channels |
8 Analog Channels (max.) |
|
Digital Input |
10 Digital Inputs |
|
Pulse Channel |
4 Pulse Channels |
|
Relay Output |
4 Relay Outputs |
Features
1) Real Time 4G Data Upload with GPS
2) Integrated 16 bit MCU & Siemens 4G Module
3) Programmable data input type & alert hi/low
4) Programmable Data Upload Interval & Logging Interval
5) Easy setup via USB port by PC software
6) Remote Setup over 4G mobile network
7) RS485 Port support data capturing in Modbus protocol
8) Support Dynamic Domain Name or Fixed IP, and UDP/TCP protocol data transmission
9) Flexible AC/DC power with internal battery backup
Free Software:
[1] Setup software is bundled for routine configuration via USB port locally
[2] Centre software is also provided for receiving data via 4G mobile network.
[3] Smart Client Lite app (Windows, iPad, Android) is free for user friendly graphics data display
[Applications]
* water pipes network real time monitoring - water in and out temperature
* oil/gas pipes network, pump stations
* underground water level real time monitoring
* environmental monitoring system - wind/temperature/humidity/CO2/pressure
* remote Industrial equipment monitoring
* rural equipment monitoring e.g. power plant, antenna tower
* measuring equipment data capture and report via 4G mobile network
* food chain, storage, transport industry, building management
* agricultural, farming, laboratory, medical industry
