Quick Details
-
Usage:
-
Security
-
Function:
-
road-side bomb elimination and mine elimination
-
MOQ:
-
1pcs
-
Material:
-
Aircraft-grade aluminum alloy, precision machining
-
Weight:
-
90kg
-
Working time:
-
≥ 5 hours
-
Maximum Speed:
-
≥1.5m/s
-
Dimensions:
-
L*W*H: 910 * 650 * 500 mm
-
Battery:
-
DC24V lead acid rechargeable battery
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
CXXM
-
Product name:
-
EOD Robot
-
Usage:
-
Security
-
Function:
-
road-side bomb elimination and mine elimination
-
MOQ:
-
1pcs
-
Material:
-
Aircraft-grade aluminum alloy, precision machining
-
Weight:
-
90kg
-
Working time:
-
≥ 5 hours
-
Maximum Speed:
-
≥1.5m/s
-
Dimensions:
-
L*W*H: 910 * 650 * 500 mm
-
Battery:
-
DC24V lead acid rechargeable battery
Description

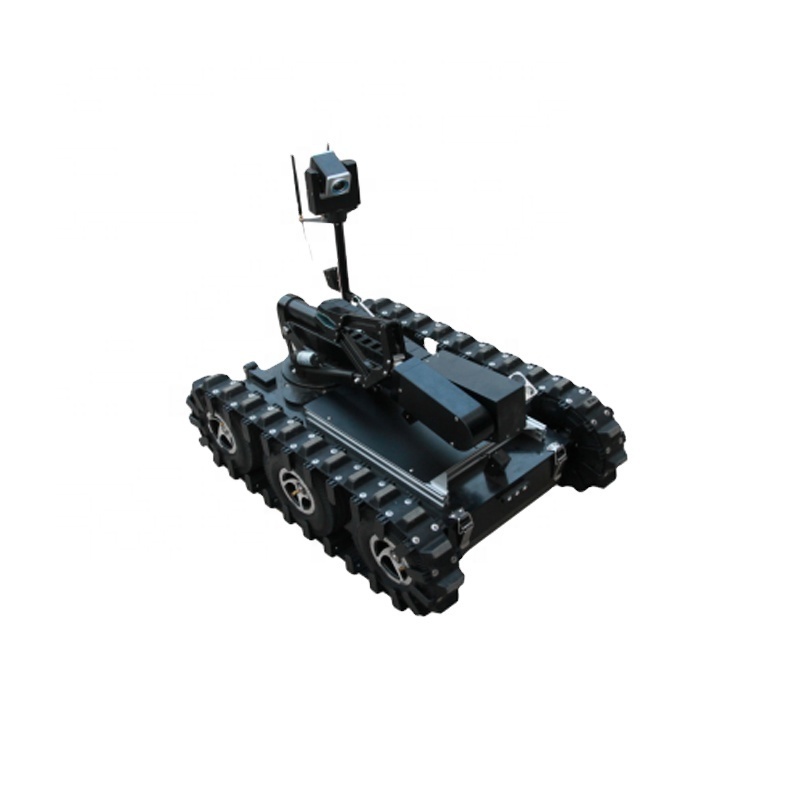

EOD robot consists of mobile robot body and control system.
Mobile robot body is made up of box, electrical motor, driving system, mechanical arm, cradle head, monitoring system, lighting, explosives disrupter base, rechargeable battery, towing ring, etc.
Mechanical arm is made up of big arm, telescopic arm, small arm and manipulator. It is installed on kidney basin and its diameter is 220mm. Double electric stay pole and double air-operated stay pole are installed on mechanical arm . Cradle head is collapsible. Air-operated stay pole, Camera and antenna are installed on cradle head . Monitoring system is made up of camera, monitor, antenna, etc. . One set of LED lights is mounted on the front of body and on the back of body . This system is powered by DC24V lead-acid rechargeable battery .
Control system is made up of center control system, control box, etc.
Optional accessories of EOD robot body: tail, wireless transmitting antenna, hardware tool (include cutter, hook, rake, drill and clipper).
EOD robot has passed test of the Ministry of Public Security and accorded with relevant regulations of <GA/T142-1996 EOD robot general technical specification.
Application Environment
l Transfer and destruction of the suspicious objects in public places (metro, airport, railway station, shopping mall, conference center, etc.
l Applied in such road-side bomb elimination and mine elimination, etc.
l Material fetching and transfer under hazardous biological and toxic environment.
l Reconnaissance, detection, material fetching and transfer within the ruins environment after disaster. Material fetching and transfer under nuclear radiation environment, simple detection and maintenance work.
FAQ
Q1:Can we get the sample for reference?
A1:Yes. We are able to provide the samples according to your requirements.
Q2: How soon can I get a price quote?
A2: We will quote you a best price within 3 days normally. If many items and special requirement,
will take 5 days.
Q3:How to confirm the quality before order ?
A3:We will send the Pre-production sample to you before production and bulk sample before shipment for quality confirm ation . We also have our experienced QC team to inspect the goods and provide the inspect ion report to yo u .
Q4: How to solve the quality problems after sales?
A4:(1) Take photos of the problems and send to us.
(2) Take videos of the problems and send to us.
(3) Send back the defective products to us if necessary .
After we co n firm ed the problems, will give you the answer within 7 days.
