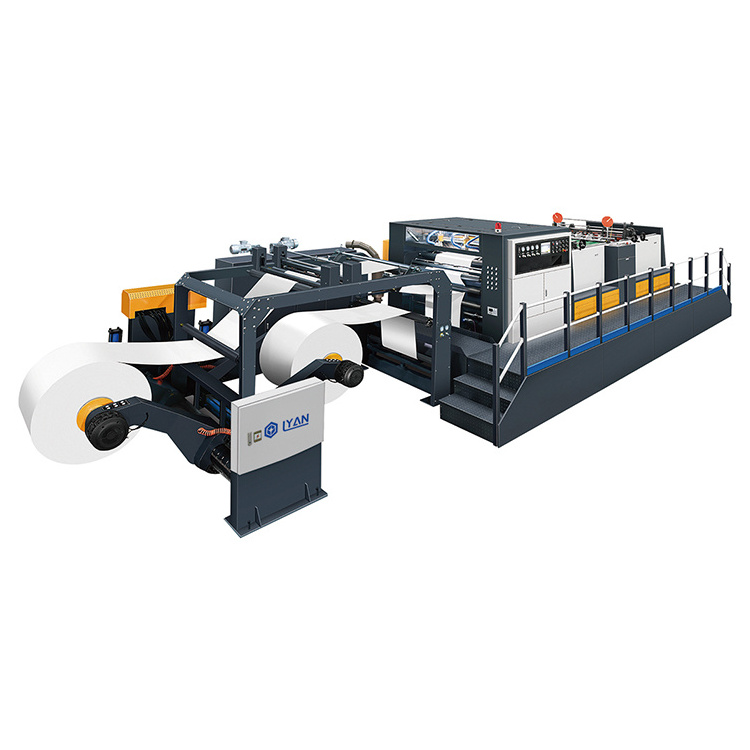

LYAN-1400 paper roll sheet cutter

Product Description

Function

The high-speed computer paper cutter is an economical and practical paper cutter. The modified machine is suitable for high-weight paper, cutting paper without burrs and dust. It successfully solves the waste of dust in the subsequent printing and greatly improves the work efficiency. The machine adopts high-quality Siemens color touch screen, Siemens PLC control, simple and reliable operation, intuitive display. High-precision servo drive motor, mechatronics design; neat paper management, front side and left and right with snapping function, counting and automatic label insertion device Computer controlled automatic operation, high efficiency, high precision and high degree of automation.

I. The main engine is driven by Shanghai Deqichi servo motor. High precision, compact structure, lower inertia, high dynamic response characteristics. Unique low-speed and high-torque characteristics and synchronization function. Excellent servo characteristics can be achieved. Save power.

II. Siemens variable frequency controller, low speed and large torque, high positioning accuracy, fast response without overshoot.

III. Taiwan imported blade, tungsten steel welding edge, Taiwan raw material, long blade life (up to one year)

IV. The knife shaft adopts the national standard 45#, which is tempered and never deformed. Both ends use Japanese NSK imported bearings, long life and high precision.

main technical parameter

Model:1400 type high speed computer roll paper cutter

1. Design speed:350m/min, work speed:260-300m/min

2. Machine length: around 10 meter

3. Cut precision: ± 0.3mm(uniform speed)

4. Cut paper length:450-1650mm

5. Cut paper thickness:50g-550g

6. Take paper height: 1500mm

7. Machine center height:1700mm

8. Motor total power: 25-30kw

Hydraulic mill roll stand

parameter :

* Action model :                full hydraulic

* Clap width:                  maximum 1700mm   minimum 500mm

* Clap diameter:               maximum 1800mm  minimum 350mm

* Single side load               maximum 2000kg

* The main shaft Dia:            240mm

* Air source work pressure:0.6-0.9MPa

* Total power:3.75kw

* Work power: 380V   50Hz

* Machine dimension: 3550*1600*1650mm

hydraulic system

* Work pressure:          12-16MPa

* Hydraulic cylinder work range: φ 100mm × 500mm

* Hydraulic cylinder Dia( clap): 63mm × 750mm

* Hydraulic motor power: 3.7kw    origina: tianjin

* Operating voltage of solenoid valve of hydraulic station: 220V   50Hz

structure:

* Taper cast iron paper clamping head, suitable for 3-12 inch roll paper

* The tension control adopts multi-point braking and automatic tension control, which saves labor, time and effort.

* The symmetrical structure can install and cut two rolls of raw paper at the same time.

* Using hydraulic drive, it can complete the lifting, clamping, loosening and moving centering of the base paper.

Cut unit

* The front section adopts light alloy matte rollers and a reasonably designed recurve frame to ensure the flatness of the paper.

* Special structure design, mechanical wall panel and base with excellent strength, the wall panel has a perspective window for easy observation and maintenance.

* The transmission system adopts oil pump automatic circulation lubrication to ensure transmission accuracy

* Gears are finely ground and tempered, with gear grinding accuracy above level 6, with small backlash, low noise and smooth transmission.

* High-precision tool shaft, tool holder design, high-speed cutting and smooth operation

* The main engine adopts Shanghai Deqichi servo drive motor and German Kobe servo drive, with high quality, quick response and precise action.

* Paper feeding adopts Shanghai Dedrive variable frequency motor, Germany Siemens variable frequency drive

* Tungsten steel blade, tungsten steel welding edge, long blade life (up to one year)

Delivery unit

* The conveying is divided into two sections: the first section is high-speed conveying, so that the cut white paper is quickly separated from the knife shaft; the second section is slow conveying, so that the white paper is superimposed and running; and quickly enters the stacking section. Between the first and second stages of conveying, a suction device is installed so that the white paper is stacked neatly and stacked into a pile.

* There are two sets of press rollers for the rear conveying, one of which can be adjusted according to the length of the cut paper.

* The maximum cut length 1500mm

Stacker unit

* The stacking section is equipped with front flap, side flap and rear baffle devices. The front flapping paper is an electric mechanical swing device; the side flapping paper is controlled by a pneumatic vibration valve, so that the white paper is stacked neatly and beautifully. The rear baffle device can adjust the position forward and backward according to the length of the whiteboard paper.

* The stacking department is equipped with a label insertion device, which automatically counts and inserts label paper

* Maximum stacking height 1500mm

cut blade	Tungsten steel knife	touch screen	Simens
bearings	NSK	blade bearing	FAG7312
main motor ( 11KW )		feed roll bearings	NJ213
servo controller	kobe	rubber roll bearings	NSK6212
feed motor		Feeding main drive bearing	NSK6210
VFD	Siemens	Fast section bearings	NSK6207
PLC	Siemens	Upper paper holder bearing	NSK30310
Low-voltage electrical appliances	Schneider	Slow section bearings	NSK6208, 6205,6206
Electric proportional valve	SMC	Bearing with seat	FK206, 207,208
hydraulic system		Transmission belt
Timing belt		Conveyor belt
Pneumatic components	AirTAC
