Quick Details
-
Production Capacity:
-
60-150 bags/minute
-
Weight (KG):
-
1800
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOULYAM
-
Dimension(L*W*H):
-
7500x1400x1600mm
-
Product name:
-
Disposable Cutlery Napkin Spoon Fork Knife Packing Machine
-
Napkin Roll Width:
-
80-350mm
-
Packing Size:
-
L:150-300mm W:30-110mm H:1-50mm
-
Packing Speed:
-
60-150pcs/minute
-
Disposable Cutlery Type:
-
Paper/Plastic/Wooden Knife Spoon Fork
-
Toothpick Feeder:
-
Available for Option
-
Salt Peper Sugar Sachet Feeder:
-
Available for Option
-
Embossing/Printing Logo:
-
Available for Option
-
Control system:
-
4 Servo Motor + PLC
-
Product Keywords:
-
Disposable Cutlery Set Napkin Spoon Fork Knife Packing Machine
-
Marketing Type:
-
New Product 2022
Quick Details
-
Function:
-
Wrapping, Sealing, counting, Automatic Feeding
-
Packaging Type:
-
Bags, Film, Foil, Pouch, Paper Sachet
-
Packaging Material:
-
Plastic, Paper, Wood
-
Production Capacity:
-
60-150 bags/minute
-
Weight (KG):
-
1800
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOULYAM
-
Dimension(L*W*H):
-
7500x1400x1600mm
-
Product name:
-
Disposable Cutlery Napkin Spoon Fork Knife Packing Machine
-
Napkin Roll Width:
-
80-350mm
-
Packing Size:
-
L:150-300mm W:30-110mm H:1-50mm
-
Packing Speed:
-
60-150pcs/minute
-
Disposable Cutlery Type:
-
Paper/Plastic/Wooden Knife Spoon Fork
-
Toothpick Feeder:
-
Available for Option
-
Salt Peper Sugar Sachet Feeder:
-
Available for Option
-
Embossing/Printing Logo:
-
Available for Option
-
Control system:
-
4 Servo Motor + PLC
-
Product Keywords:
-
Disposable Cutlery Set Napkin Spoon Fork Knife Packing Machine
-
Marketing Type:
-
New Product 2022
Products Description

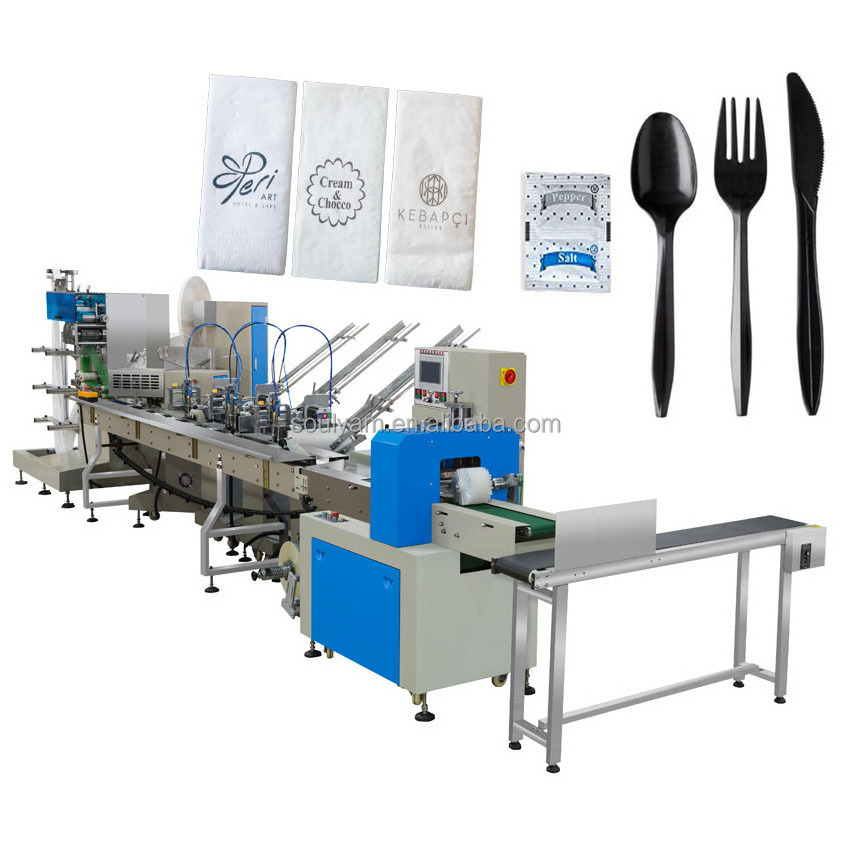

JBK-250 Automatic Disposable Cutlery (Napkin/ Spoon/Fork/Knife/Toothpick) Packing Machine
|
Model
|
JBK-250
|
|
Napkin Roll Width
|
80-260mm
|
|
Packing Material
|
OPP Film, Aluminum Laminated Film, Pure Aluminum Film, and other composite films
|
|
Packing Size
|
L:150-300mm W:30-110mm H:1-50mm
|
|
Packing Speed
|
60-150pcs/minute
|
|
Thickness of Film
|
0.03-0.06mm
|
|
Power
|
220V 7.5kw
|
|
Overall Dimension
|
7500x1400x1600mm
|
|
Weight
|
1800kgs
|
This machine is designed for napkin packaging and it adopts vertical folding. It is an institution, fast speed, smooth operation and can automatically accomplish: paper napkin cutting& folding→automatic toothpick packing
→
automatic spoon feeder→ automatic fork feeder→ automatic knife feeder →pillow bag forming→products output and so on many features
Main Features
1). 3 Servo Motor control, flexible bag length cutting. Save time and film.
2). 7 inch touch screen, easy operation and multiple language for choice.
3). Smart PLC system, machine performance is stable, convenient for change parameter
4). Self diagnosis failure function, machine error can be clearly displayed in the touch screen.
5). Separate PID temperature controller, suitable for various packing materials
6). High sensitivity optical photocell for eye mark tracking, digital input for cutting position.
7). Position stop function, no adhesive and no waste of membrane and protect cutter.
8). Simple driving system, stable performance and convenient maintenance.
9). According to different product, the input conveyor can use pusher, belt or film for transportation.
10). High sensitive sensor to track the color mark, so the position of sealing and cutting will be more accuracy.
11).Automatic Detect the products, if no product feeding into the film, the machine will stop, no empty bag and no cutting the products.
12). No limit for product length
2). 7 inch touch screen, easy operation and multiple language for choice.
3). Smart PLC system, machine performance is stable, convenient for change parameter
4). Self diagnosis failure function, machine error can be clearly displayed in the touch screen.
5). Separate PID temperature controller, suitable for various packing materials
6). High sensitivity optical photocell for eye mark tracking, digital input for cutting position.
7). Position stop function, no adhesive and no waste of membrane and protect cutter.
8). Simple driving system, stable performance and convenient maintenance.
9). According to different product, the input conveyor can use pusher, belt or film for transportation.
10). High sensitive sensor to track the color mark, so the position of sealing and cutting will be more accuracy.
11).Automatic Detect the products, if no product feeding into the film, the machine will stop, no empty bag and no cutting the products.
12). No limit for product length
Product Description
Touch Screen with Omron Temperature Controller
Easy Control Touch Screen , it can be set up the relevant language according to customer’s requirement. Simple page, easy operation, automatic fault diagnosis function, so the fault can be seen and understood more clearly, easier to maintenance. Memory function, save debugging time for packing different products and save the packing film.
Napkin Roll Holder
Napkin Roll Cutting into Paper Sheet
Automatic Cutlery Feeder
Automatic Feeding Plastic /Paper/Plastic Fork Spoon Knife
Toothpick
Automatic Toothpick Feeding & Packing in Small Paper Bag
Ink Wheel Printer
It can printing production date and batch number
Cursor Position Sensor
Cursor position Sensor Make sure bag forming more accurate
Verticle Back Sealing
Separate PID temperature controller, good sealing performance, suitable for various packing materials
Servo Drive System
Compared with the general frequency conversion control model, reduces the adjustment of mechanical transmission parts, and improves the accuracy of the motion.
Production Machines In Bulk
Make sure we delivery plenty of machines to customers in time
Sample Display
