Quick Details
-
Voltage:
-
380V/220V or customized
-
Dimension(L*W*H):
-
3200*1900*3600(customizable)
-
Power (kW):
-
5.5KW
-
Weight (KG):
-
3000 KG
-
Applicable Industries:
-
Mushroom stone, Culture Stone Decorative 3D Wall Panel, Indoor and outdoor decorative wall, Culture Stone, Dummy model, branch of false flower, wood-like carving
-
Core Components:
-
Siemens motor magnet, Mixing head, Polyurethane special pump, Kracht flowmeter in Germany, Hot and cold thermostats, Siemens frequency converter, Siemens PLC controller
-
Name:
-

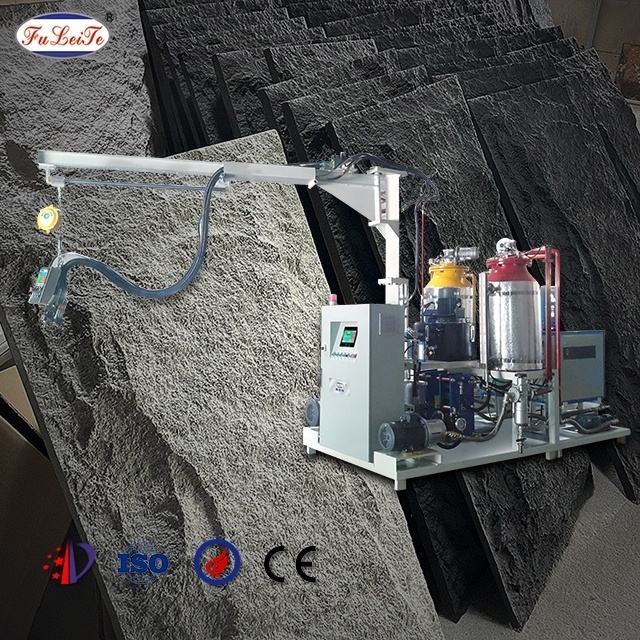

pu culture stone foaming machine
-
Raw material:
-
Isocyanate and polyol(ISO and POLY)
-
Electrical configuration:
-
Siemens/Schneider
-
Equipment power:
-
5.5KW
-
polyurethane injection pump:
-
Metering pump A2FK12
-
Marketing Type:
-
New Product 2023
-
injection ratio:
-
1:3~3:1
-
System:
-
PLC+touch Screen
-
Usage:
-
Pu culture stone, wood-like carving products,model Setc.
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fuleite
-
Machine Type:
-
Pu Foaming Machine
-
Voltage:
-
380V/220V or customized
-
Dimension(L*W*H):
-
3200*1900*3600(customizable)
-
Power (kW):
-
5.5KW
-
Weight (KG):
-
3000 KG
-
Applicable Industries:
-
Mushroom stone, Culture Stone Decorative 3D Wall Panel, Indoor and outdoor decorative wall, Culture Stone, Dummy model, branch of false flower, wood-like carving
-
Core Components:
-
Siemens motor magnet, Mixing head, Polyurethane special pump, Kracht flowmeter in Germany, Hot and cold thermostats, Siemens frequency converter, Siemens PLC controller
-
Name:
-
pu culture stone foaming machine
-
Raw material:
-
Isocyanate and polyol(ISO and POLY)
-
Electrical configuration:
-
Siemens/Schneider
-
Equipment power:
-
5.5KW
-
polyurethane injection pump:
-
Metering pump A2FK12
-
Marketing Type:
-
New Product 2023
-
injection ratio:
-
1:3~3:1
-
System:
-
PLC+touch Screen
-
Usage:
-
Pu culture stone, wood-like carving products,model Setc.
|
Model |
FLT.M-12 |
FLT. M -28 |
FLT. M -55 |
FLT. M -107 |
|
Perfusion (g/sec) |
150-550g/s |
350-1300g/s |
1000-2300g/s |
2000-5200g/s |
|
Type of gun head |
FLT10-14 |
FLT10-14
FLT12-18 |
FLT12-18
FLT16-25 |
FLT16-25 |
|
Model of metering pump (A2FK,A2VK,A7VK) |
12 | 28 | 55 | 107 |
|
Equipment power (380V,50HZ) |
23kw | 32kw | 56kw |
108kw |
|
Flow meter (optional) |
VCG2FCP2 | VCG2FCP2 | VCG5FCP2 | VCG5FCP2 |
|
Air Source |
0.6mpa( Nitrogen best ) |
|||
|
Injection time accuracy |
0.1s-99.99s |
A:B Injection ratio |
1:3---3:1 |
|
|
Raw material injection pressure |
8---15mpa |
Repeated injection accuracy |
≤ 1% |
|
|
Temperature control accuracy |
± 2° |
Working pressure of hydraulic station |
12---20mpa |
|
