Quick Details
-
Model Number:
-
5kW PMSM Motor
-
Frequency:
-
100 Hz
-
Application:
-
Electric Car Vehicle or Boat
-
Rated Power:
-
5kW
-
Max. Power:
-
12kW
-
Rated Voltage:
-
72V
-
Rated Speed:
-
3000 r/min
-
Max. Speed:
-
6000 r/min
-
Max. Torque:
-
92 N.m
-
Protection Grade:
-
IP 65
-
Weight:
-
20kg
-
Name:
-
5kW PMSM Motor Driving Kit for Electric Vehicle
Quick Details
-
AC Voltage:
-
72V
-
Place of Origin:
-
China
-
Brand Name:
-
Uni
-
Model Number:
-
5kW PMSM Motor
-
Frequency:
-
100 Hz
-
Application:
-
Electric Car Vehicle or Boat
-
Rated Power:
-
5kW
-
Max. Power:
-
12kW
-
Rated Voltage:
-
72V
-
Rated Speed:
-
3000 r/min
-
Max. Speed:
-
6000 r/min
-
Max. Torque:
-
92 N.m
-
Protection Grade:
-
IP 65
-
Weight:
-
20kg
-
Name:
-
5kW PMSM Motor Driving Kit for Electric Vehicle
Foshan Uni Technology Co., Ltd. is a high-tech enterprise specializing in providing environmentally-friendly, energy-saving, green-power 3kW to 50kW driving system for electric car (electric tricycle, passenger car, logistics car) or boat. "Courtesy, sincerity and profession" as the company principles, are kept in our minds.
Our team members:
1. Managers with a comprehensive understanding of the market
2. Experienced engineers who have engaged in electric vehicle industry for more than 10 years with full proficiency in technology
3. Energetic and motivated colleagues
After years of development, the supply & sales chain was adjusted and improved constantly and now became a completed system. We can provide comprehensive service from pre-sales introduction to after-sales technical support.
Our products:
1.
AC driving system (3kw-15kw)
: AC motor and motor controller
2.
PMSM driving system (3kw-100kw)
: PMSM motor and motor controller
3.
Transmission assembly
: rear axle,
front live shaft, reducer and rear/front drive assembly
4.
Power supply system
: battery charger and Lithium battery
5. Other components: DC-DC converter, dashboard, pedal, encoder and brake
Both AC motor system and PMSM motor system have their advantages and disadvantages. Through continuous experimentation and practice, we found that PMSM motor is more energy-saving comparing with AC motor, but the latter is also irreplaceable in some places or occasion (see
FAQ Q1
for more information about the differences between AC motor and PMSM motor). If you are not sure what type of motor and what power to be used in your equipment, fee free to contact us. We have a whole team to give you support.

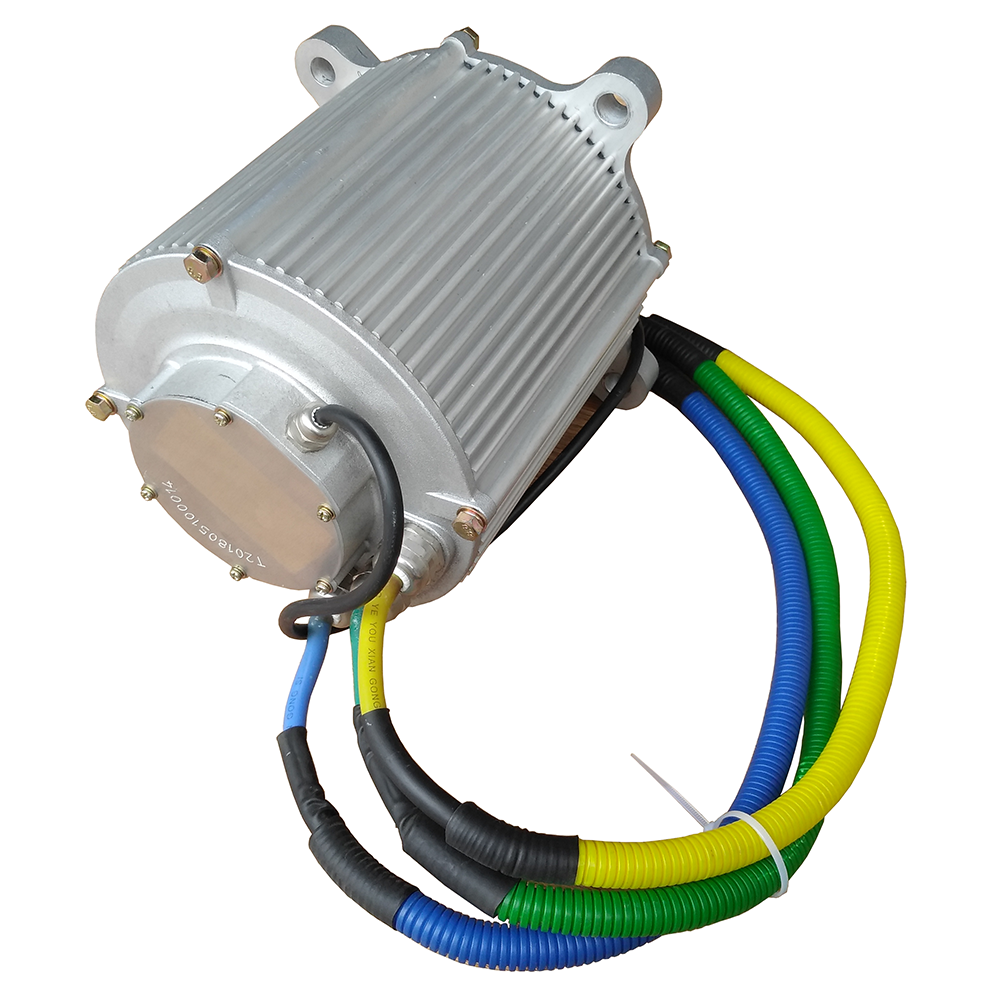

5kW PMSM Motor for Electric Car
Features:
1. Simple in structure
2. High reliability
3. Free maintenance
4. Big torque and high efficiency
5. Pure copper winding
5kW PMSM Motor Controller for Electric Car
Features:
1. DSP chip
2. High temperature adaptability
3. Programmable
4. Anti-rollback function
5. Regenerative braking effect
6. Multiple protections (under-voltage and over-voltage and high temperature)
Rear Axle Assembly for Electric Car
Features:
1. High torque
2. improvement in efficiency
3. Space-saving
4. Strong load bearing capacity
Electric Vehicle Power System Training Platform
5kW PMSM Motor Conversion Kit
After calculation, we use the following driving system.
The max. speed can be 60km/h.
R&D Department
We have a strong R&D team with many years of experience in areas such as electrical, electronics, software, machinery, automation, etc.
Production Center
A full set of processing equipment can guarantee the accuracy ;
Advanced automatic wire embedding system is to ensure the consistency;
Semi-automatic production line will improve the productivity.
Motor Production
Controller Production
Quality Management
Normal package is wooden box and it will be fumigated. Sometimes cartons will be chosen if by air. If there are any special requirements, please talk to our sales person.
Q1: What is the difference between AC motor and PMSM motor?
AC motor is simple in structure, easy to manufacture, of high reliability and large start torque. At the same time, it can withstand harsh environment. While PMSM motor, with higher efficiency, small size and light weight saves more than 20% energy compared with AC motor. Both space and energy do matter, but it can not tolerate high temperature. These two types of motor have their advantages and disadvantages. They are suitable for different environments. Please talk to our persons and we will take many factors like car weight, max. speed required, terrain, climate into consideration to suggest the right driving system.
Besides, some parameters can be customized. It is highly recommended to talk to us. The more information we get, the better solution we will provide, which will directly lead to cost-reduction.
