Quick Details
-
Material:
-
Bags
-
Fluid:
-
Air
-
Acting:
-
Internal pilot or external pilot
-
Port size:
-
In=Out=M5
-
Orifice size:
-
5.5 (Cv=0.31)
-
Valve:
-
5 port 2 position
-
Operating pressure:
-
0.15~0.8Mpa(21~114psi)
-
Proof pressure:
-
1.5MPa(215psi)
-
Temperature:
-
0~60
-
Material of body:
-
Aluminum alloy
-
Product name:
-

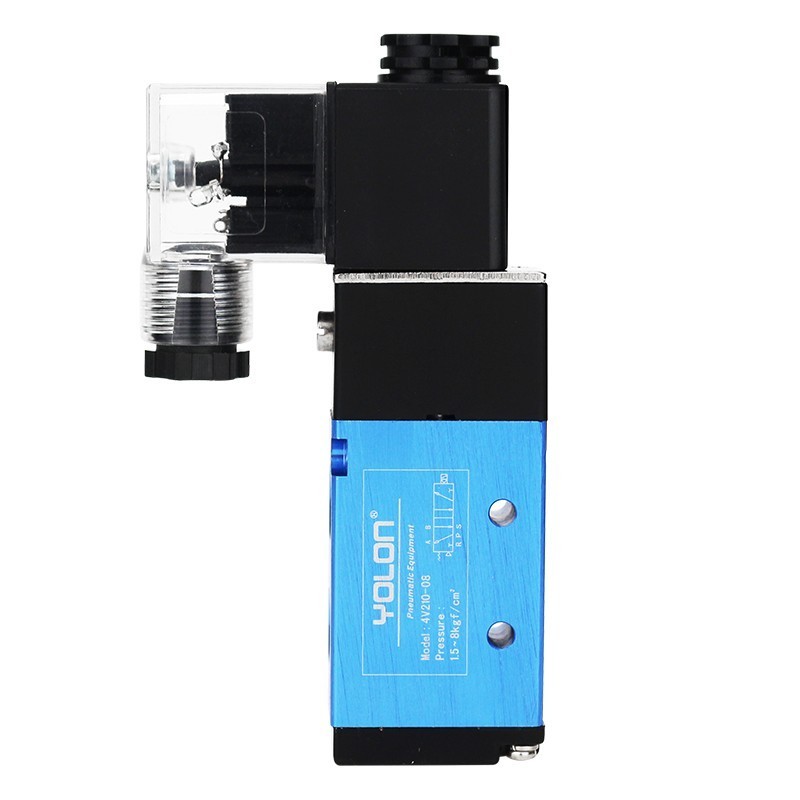

4v210-08 air auto drain electro pneumatic solenoid valves
Quick Details
-
Weight (KG):
-
0.28
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Yolon
-
Material:
-
Bags
-
Fluid:
-
Air
-
Acting:
-
Internal pilot or external pilot
-
Port size:
-
In=Out=M5
-
Orifice size:
-
5.5 (Cv=0.31)
-
Valve:
-
5 port 2 position
-
Operating pressure:
-
0.15~0.8Mpa(21~114psi)
-
Proof pressure:
-
1.5MPa(215psi)
-
Temperature:
-
0~60
-
Material of body:
-
Aluminum alloy
-
Product name:
-
4v210-08 air auto drain electro pneumatic solenoid valves
Related Products
Product Description
|
Model
|
4V110-06
|
4V210-08
|
4V310-10
|
4V410-15
|
|||
|
Fluid
|
Air(to be filter by 40 μm filter element)
|
|
|
|
|||
|
Acting
|
Internal pilot or external pilot
|
|
|
|
|||
|
Port size
|
1/8"
|
1/4"
|
1/4"
|
1/2"
|
|||
|
orifice size( square meter)
|
12
|
16
|
30
|
50
|
|||
|
valve type
|
3 port 2 position
|
|
|
|
|||
|
operating pressure
|
0.15~0.8Mpa(21~114psi)
|
|
|
|
|||
|
proof pressure
|
1.5Mpa
|
|
|
|
|||
|
temperture ℃
|
(-20~70)
|
|
|
|
|||
|
material of body
|
Alumlnum alloy
|
|
|
|
|||
|
lubrication
|
Not required
|
|
|
|
|||
|
max.frequency
|
3 cycle/sec
|
|
|
|
|||
|
Weight
|
200g
|
360g
|
450g
|
770g
|
|||
|
Model/Item
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
|
4V110-M5
|
M5*0.8
|
27
|
14.7
|
0
|
14
|
21.2
|
0
|
|
4V110-06
|
1/8''
|
28
|
14.2
|
1
|
16
|
20.2
|
3
|
|
4V210-06
|
1/8''
|
1/8''
|
18
|
22.7
|
0
|
|
|
|
4V210-08
|
1/8''
|
1/4''
|
21
|
21.2
|
3
|
|
|
|
4V310-08
|
1/4''
|
1/4''
|
22
|
29
|
0
|
|
|
|
4v310-10
|
1/4''
|
3/8''
|
24
|
28
|
4
|
|
|
