The mattress automatic bag making machine pocket spring mattress machine
The mattress automatic bag making machine pocket spring mattress machine
The mattress automatic bag making machine pocket spring mattress machine
The mattress automatic bag making machine pocket spring mattress machine
The mattress automatic bag making machine pocket spring mattress machine
The mattress automatic bag making machine pocket spring mattress machine
The mattress automatic bag making machine pocket spring mattress machine
The mattress automatic bag making machine pocket spring mattress machine

The mattress automatic bag making machine pocket spring mattress machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $56000
≥2 Sets
US $50000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Marketing Type:
Hot Product 2021
Voltage:
380
Power:
30W
Dimension(L*W*H):
2900mm*1600mm*1900mm
Weight:
2800
Product name:
pocket spring machine
Size length:
2900mm, width 1600mm, height 1900mm
Frequency:
50/60Hz
Non-woven width:
320-680mm
Spring shape:
Straight and drum spring spring
Bag height:
80-250mm
Mechanical principle:
Full mechanical transmission
Steel wire diameter:
Phi 1.6 - Phi 2.4mm
Spring core diameter:
Phi 60 - Phi 75mm
Productivity:
130Spring/min

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
KIMKOO
Applicable Industries:
Furniture
Marketing Type:
Hot Product 2021
Voltage:
380
Power:
30W
Dimension(L*W*H):
2900mm*1600mm*1900mm
Weight:
2800
Product name:
pocket spring machine
Size length:
2900mm, width 1600mm, height 1900mm
Frequency:
50/60Hz
Non-woven width:
320-680mm
Spring shape:
Straight and drum spring spring
Bag height:
80-250mm
Mechanical principle:
Full mechanical transmission
Steel wire diameter:
Phi 1.6 - Phi 2.4mm
Spring core diameter:
Phi 60 - Phi 75mm
Productivity:
130Spring/min
details

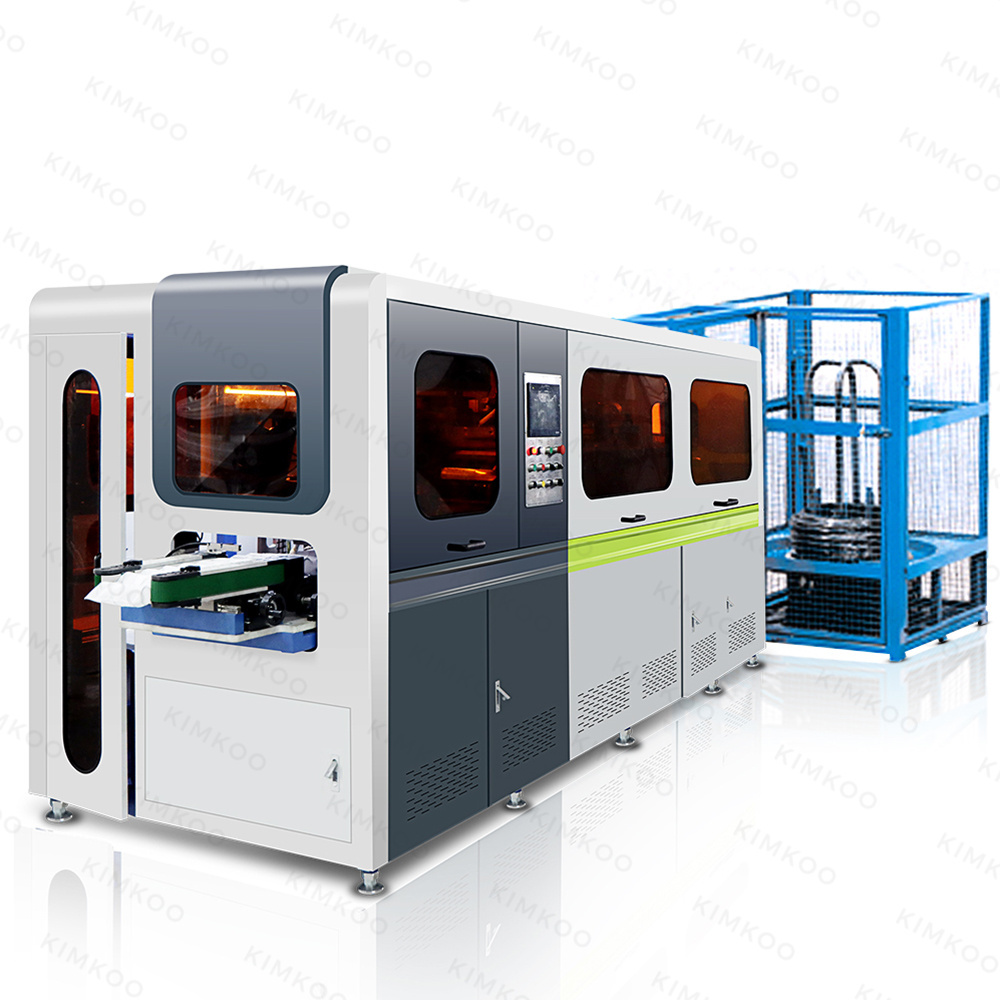

The mattress automatic bag making machine pocket spring mattress machine

This mattress pocket spring machine max production speed can reach 130 springs/mins. The four main process the Spring coiling, Heat treatment, Non-Woven Fabric folding and Ultrasonic welding can be finished by JK-PS-130 Automatic Pocket Spring Machine. JK-PS-130 is successfully digitized and accomplish complete automation production.By the option Ultrasonic Auto-cutting device, the pocket spring cutting process also can be automatic finished.

Features
1.High speed pocket spring machine.
2.Produces 130spring/per minute.
3.With digital controlled spring coiling box, all spring size can be modified by parameterized settings, without adjusting mechanism.
4.Non-Woven fabric receiving device to make it easy to replace non-woven fabric, reduce waste amd save time.
5.Modular design, easy to install and steady performance.
6.Efficient and secure automatic out-off device.
7.Self-developed control system,ultrasonic welding, low noise, no pollotion.

Main Technical Parmeters
Model
JK-PS-130
Productivity
100Spring/min
Input cable
5×16mm2
Mechanical principle
Full mechanical transmission
Weight
2800KG
Winder
Two-axis CNC head
Input Current
75A
Non-woven fabric thickness
50-90g/m2
Bag height
80-250mm
Spring shape
Straight and drum spring spring

1.Does KIMKOO a manufacture ?
KIMKOO is a professional mattress machines manufacture in China. The factory is located in Shunde district, Foshan City, China. And KIMKOO has an office in Shenzhen City, China. Welcome to come visit our factory.

2.Whats your mattress machine quality?
KIMKOO has a complete team, including service team, after-sales team, sales team, technology research and development team, production team. So we have the ability to make the best mattress machines for our customers.
Our products are all through the CE, ISO9001, SGS test. KIMKOO sure will offer customer the best quality machines.

3.Why does your mattress machines price so competitive? Did you use the cheapest materials to make it? Is it second hand machine?
No, KIMKOO will never sold the second hand machine and will never use the cheapest materials to make machines.
In the mattress machines market, there are lots of trader sale machines in a very high price and tell customers its because their quality good.Actually, its not. That’s exactly they are trader and sale in a very high price. While there is still some factories use cheapest materials to make machine.
But KIMKOO wont never do this. All we use are the best materials to sure the machine quality. What we need is small profits but quick turnover.

4.How can we install the machine after we got it ?
KIMKOO will offer you the installation service if customer required. Normally, we wont pack our machine in small pieces. So when you get machine its always in serval big pieces. Its easy to install. (We will offer you the installation manual)

5.How can we repair the machine if machine get broken?
KIMKOO will offer you technology support lifetime. And KIMKOO will arrange technology team to repair if customer required or customer cant sold the problem.

6.Does KIMKOO have the oversea office ?
Not yet, but KIMKOO will have the oversea office soon.And if you wanna be our agent oversea, welcome to contact us and talk the details. (KIMKOO has 3 office in China, Such as NANNING Office,SHENZHEN Office, and QINZHOU Office)

7.How many worker does KIMKOO have?
About 30 workers

8.How large is KIMKOO Factory?
5000m2
