Quick Details
-
Interface Standard:
-
GB/T 20234
-
Output Current:
-
AC
-
Output Power:
-
7.2KW
-
Input Voltage:
-
220V
-
Current:
-
10A-16A-20A-24A-32A Adjustable
-
Operating voltage:
-
110V - 250V AC
-
Insulation resisitance:
-
>1000MΩ(DC500V)
-
Therminal temperature rise:
-
<50K
-
Withstand voltage:
-
2000V
-
Contact impedance:
-
0.5mΩ Max
-
Vibration resistance:
-
Meet JDQ53.36.1.1-53.36.1.2 requirements
-
Mechanical life:
-
no-load socket in/pull out >10000 times
-
Operating temperature:
-
-30°C ~ +50°C
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
32A mobile electric car charger
-
Brand Name:
-
ZENCAR
-
Interface Standard:
-
GB/T 20234
-
Output Current:
-
AC
-
Output Power:
-
7.2KW
-
Input Voltage:
-
220V
-
Current:
-
10A-16A-20A-24A-32A Adjustable
-
Operating voltage:
-
110V - 250V AC
-
Insulation resisitance:
-
>1000MΩ(DC500V)
-
Therminal temperature rise:
-
<50K
-
Withstand voltage:
-
2000V
-
Contact impedance:
-
0.5mΩ Max
-
Vibration resistance:
-
Meet JDQ53.36.1.1-53.36.1.2 requirements
-
Mechanical life:
-
no-load socket in/pull out >10000 times
-
Operating temperature:
-
-30°C ~ +50°C
-
Certification:
-
ce
Product Description

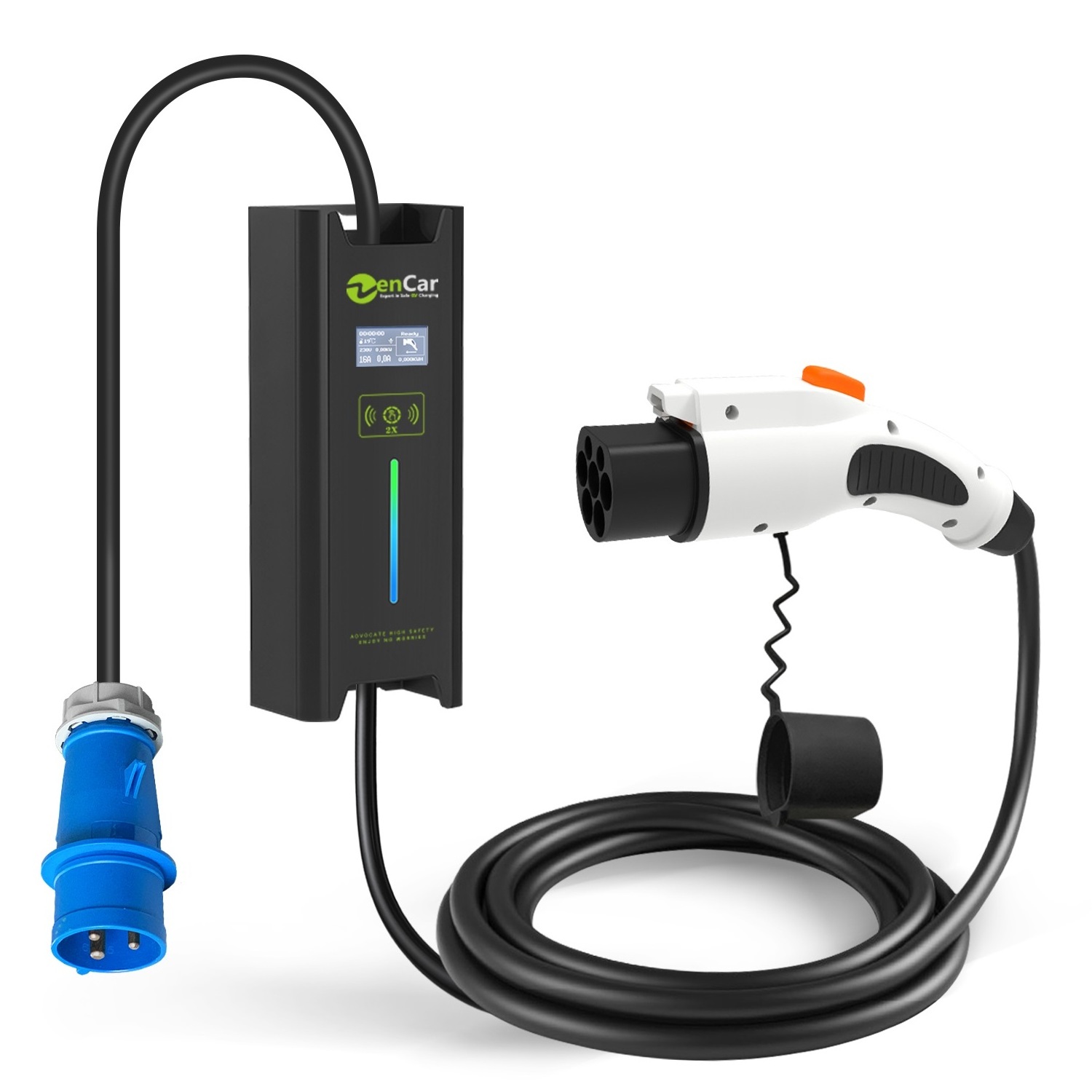

Zencar level 2 EV charger 32A mobile electric car charger 7KW with GB/T connector for BYD Lixiang Xiaopeng home use charger
7.4KW EV charger, EVSE | 32A | 1phase | GBT | Blue CEE | 5 M TPU cable
Meet IEC 61851
|
Basic Data
|
|
|
|
|||
|
Charging Plug / Connector
|
GB/T
|
Power side plug
|
Blue CEE
|
|||
|
Input voltage
|
100~250V AC
|
Output voltage
|
100~250V AC
|
|||
|
Output current
|
10A-16A-20A-24A-32A adjustable
|
Max. output power
|
7.4 KW
|
|||
|
Input frequency
|
50-60Hz
|
Cable length
|
5m
|
|||
|
Function and Accessory
|
|
|
|
|||
|
WIFI/4G
|
NO
|
LED Indicator light
|
Flash
|
|||
|
Intelligent power adjustment
|
YES
|
LCD Screen
|
YES
|
|||
|
RCD
|
AC 30mA
|
Timing Function
|
YES
|
|||
|
Protection
|
|
|
|
|||
|
Over Voltage Protection
|
YES
|
Protection Earth Detection
|
YES
|
|||
|
Under Voltage Protection
|
YES
|
Over-temp Protection
|
YES
|
|||
|
Over current Protection
|
YES
|
Lightning Protection
|
YES
|
|||
|
Pressure Resistant
|
YES
|
Flame Resistant
|
YES
|
|||
|
Water-proof Protection
|
Box IP66, Plug IP54
|
Intelligent Kernel
|
YES
|
|||
|
Electrostatic Protection
|
YES
|
Crush Test
|
YES
|
|||
|
Package
|
|
|
|
|||
|
Dimension (W/H/D)
|
410/390/100mm
|
Weight
|
3.5KG
|
|||
|
Packing Methord
|
Netruel /Color box
|
|
|
|||
|
Guarantee
|
|
|
|
|||
|
Warranty
|
12 months
|
Certificate
|
CE
|
|||
Products Show
Power side plug - Blue CEE
EV Connector - GB/T 7 pins
