Quick Details
-
EINECS No.:
-
230-391-5
-
Place of Origin:
-
SHN
-
Brand Name:
-
SIWAY
-
Model Number:
-
SV-302
-
Type:
-
Polyurethane foam
Quick Details
-
CAS No.:
-
61788-97-4
-
Other Names:
-
Polyurethane foam
-
MF:
-
Mixed
-
EINECS No.:
-
230-391-5
-
Place of Origin:
-
SHN
-
Brand Name:
-
SIWAY
-
Model Number:
-
SV-302
-
Type:
-
Polyurethane foam
Video
This video shows Siway pu foam Quality testing
Online video how to use pu foam :
http://youtu.be/lyJm4KXnGmQ
(
You can copy this URL to youtube to watch
)

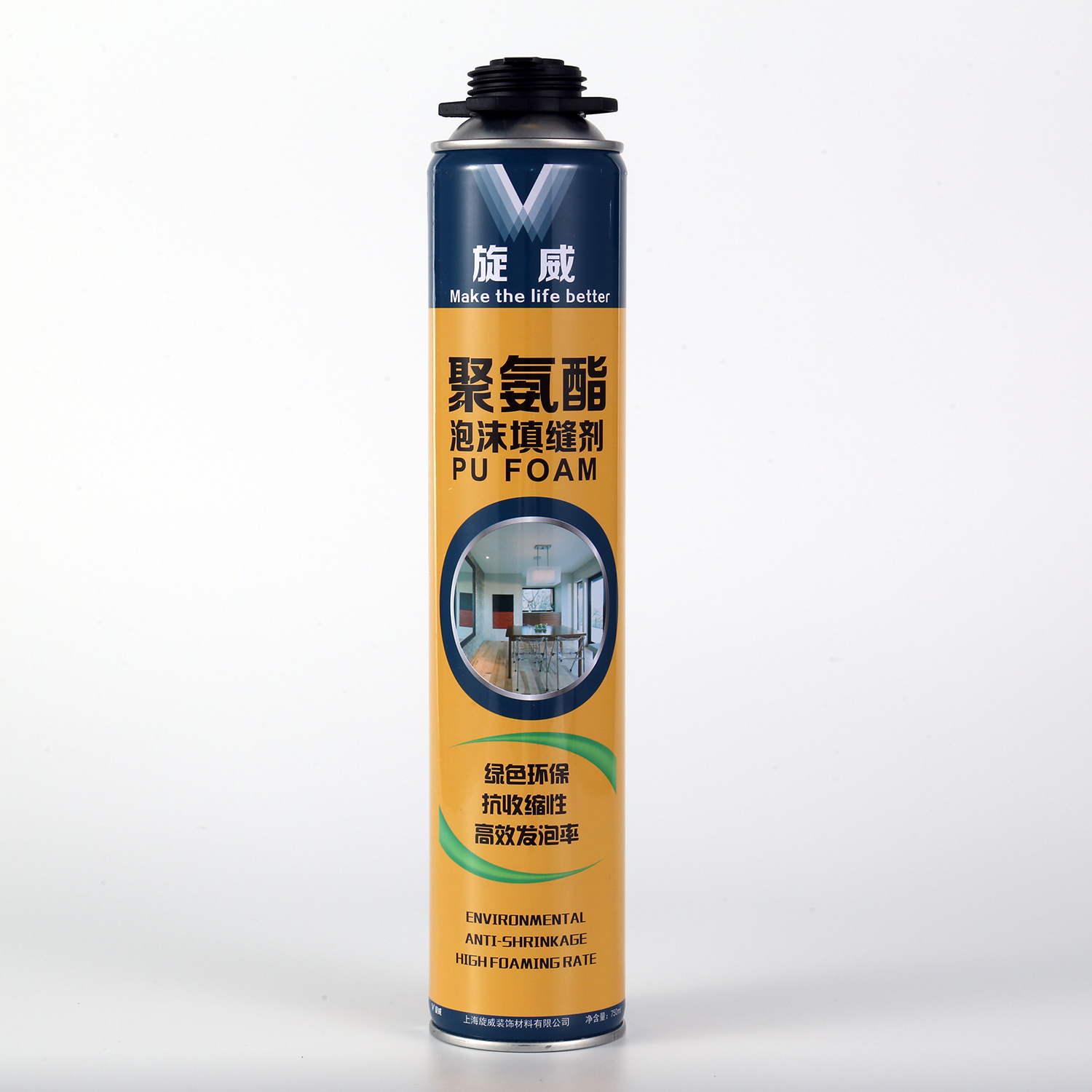

SIWAY PU FOAM
SIWAY PU FOAM is a one-component, economical type and good performance Polyurethane foam. It is fitted with a plastic adapter head for use with a foam application gun or a straw. The foam will expand and cure by moisture in the air. It is used for a wide range of building applications. It is very good for filling and sealing with excellent mounting capacities, high thermal and acoustical insulation. It is environmental friendly as it does not contains any CFC materials.
|
Name
|
pu foam
|
|
Base
|
Polyurethane
|
|
Consistency
|
Stable Foam
|
|
Volume
|
750ml
|
|
weight
|
900g
|
|
Curing System
|
Moisture-cure
|
|
|
||
|
Tack-Free Time (min)
|
8~15
|
|
|
||
|
Drying Time
|
Dust-free after 20-25 min.
|
|
|
||
|
Cutting Time (hour)
|
1 (+25℃)
|
|
|
||
|
|
2~4 (-10℃)
|
|
|
||
|
Yield (L)
|
45
|
|
|
||
|
Shrink
|
None
|
|
|
||
|
Post Expansion
|
None
|
|
|
||
|
Cellular Structure
|
65~75% closed cells
|
|
|
||
|
Specific Gravity (kg/m³)
|
18
|
|
|
||
|
Temperature Resistance
|
-40℃~+80℃
|
|
|
||
|
Application Temperature Range
|
-5℃~+35℃
|
|
|
||
|
Color
|
white
|
|
|
||
|
Fire Class (DIN 4102 )
|
B3
|
|
|
||
|
Insulation Factor (Mw/m.k)
|
<20
|
|
|
||
|
Compressive Strength (kPa)
|
>180
|
|
|
||
|
Tensile Strength (kPa)
|
>30 (10%)
|
|
|
||
|
Adhesive Strengh(kPa)
|
>110
|
|
|
||
|
Water Absorption (ML)
|
0.3~8(no epidermis)
|
|
|
||
|
|
<0.1(with epidermis)
|
|
|
||
PRODUCT FEATURES
1.Low Foam Pressure/Low Expansion – will not warp or deform windows and doors
2.Quick Setting Formulation – can be cut or trimmed in less than 1 hour
3.Closed Cell Structure does not absorb moisture
4.Flexible/Will not crack or dry out
APPLICATIONS AREAS
1.Application where fire retardant properties are required;
2.Installing, fixing and insulating of door and window frames;
3.Filling and sealing of gaps, joint, openings and cavities;
4.Connecting of insulation materials and roof construction;
5.Bonding and mounting;
6.Insulating the electrical outlets and water pipes;
7.Heat preservation, cold and sound insulation;
8.Packaging purpose, wrap the precious & fragile commodity, shake-proof and anti-pressure.
1.Bset Tensile Strength
80% of foaming agent immediately after blowing foam, foam behind the range is very small, high expansion ratio, significant savings in renovation costs
2.The color is white
3.Foaming evenly
Color white beautiful
Foaming agent section smooth
Step 1
PU foam is shaken up and down for 1 minute before use
Step 2
Clean and moisturize the construction surface before application
Step 3
Connect the tank upside down to the gun and turn the valve open to adjust the flow
Step 4
Spray from the bottom up, the injection volume is 1/2 the required fill volume
Step 5
Ten minutes after the foam began to cure, 1 hour after the next step
Step 6
Cured foam can be removed with a sharp knife excess, and then in the surface with cement mortar, paint or silicone sealant for processing
Our factory
The factory is located in Quzhou, Zhejiang High-tech Industrial Park, covers an area of 330 acres, more than 500 employees, including college education more than 200 people, we are new fluorine-silicon industry in Zhejiang Province technological innovation pilot units
Our client visit our factory
WELCOME TO VISIT US --- SIWAY
Big smile on Majesties face.
More Professional, More Patient, More Responsibility.
Our Siway team always try our best to help all of you.
