Quick Details
-
Max. Lifting Load:
-
32ton
-
Span:
-
3-30m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WEIHUA
-
Warranty:
-
12 months
-
Weight (KG):
-
8000 kg
-
Product Name:
-
single beam bridge crane
-
Emergency stop system:
-
Included
-
Crane traveling limited switch:
-
Included
-
Current overload protection system:
-
Included
-
Lifting mechanism:
-
Electric Hoist
-
Power Source:
-
3 Phase 380V 50hz
-
Main electrical parts:
-
Schneider Brand
-
Lifting speed:
-
Variable Speed (standard)
-
Crane feature:
-
Easy Operated Girder Bridge Crane
-
Color:
-
Clients' Requirments
Quick Details
-
Max. Lifting Height:
-
30m, 3~30M
-
Marketing Type:
-
Hot Product 2023
-
Rated Lifting Moment:
-
10kn-200 Kn
-
Max. Lifting Load:
-
32ton
-
Span:
-
3-30m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WEIHUA
-
Warranty:
-
12 months
-
Weight (KG):
-
8000 kg
-
Product Name:
-
single beam bridge crane
-
Emergency stop system:
-
Included
-
Crane traveling limited switch:
-
Included
-
Current overload protection system:
-
Included
-
Lifting mechanism:
-
Electric Hoist
-
Power Source:
-
3 Phase 380V 50hz
-
Main electrical parts:
-
Schneider Brand
-
Lifting speed:
-
Variable Speed (standard)
-
Crane feature:
-
Easy Operated Girder Bridge Crane
-
Color:
-
Clients' Requirments
Products Description
CD Hoist
MD Hoist
*

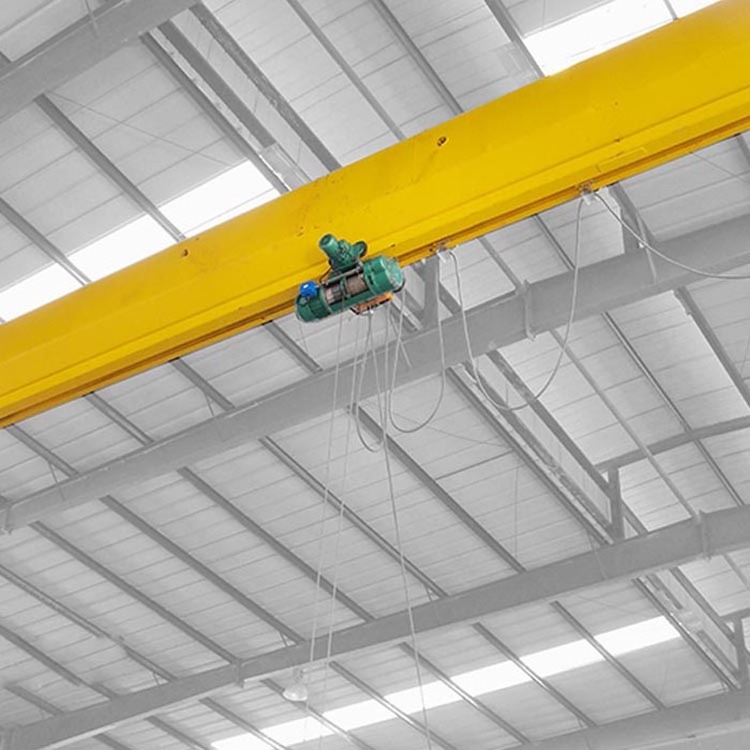

LDA model single girder overhead crane
is characterized by more reasonable structure and higher strength steel as a whole.
* Together with CD1 model MD1 model electric hoist as a complete set, it is a light duty crane with a capacity 1 ton ~ 32 tons. The span is 7.5m~ 31.5m. Working grade is A3~A4.
* This product is widely used in plants, warehouse, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosive environment.
* This product has two operational methods, ground or operational room which has open model closed model and can be installed on the left or right side according to the practical situation.
* And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users, choice under different conditions.
* Together with CD1 model MD1 model electric hoist as a complete set, it is a light duty crane with a capacity 1 ton ~ 32 tons. The span is 7.5m~ 31.5m. Working grade is A3~A4.
* This product is widely used in plants, warehouse, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosive environment.
* This product has two operational methods, ground or operational room which has open model closed model and can be installed on the left or right side according to the practical situation.
* And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users, choice under different conditions.
Product Specification
|
Span
|
m
|
7.5
|
10.5
|
13.5
|
16.5
|
19.5
|
22.5
|
25.5
|
||||||
|
Capacity
|
t
|
1~31.5t
|
|
|
|
|
|
|
||||||
|
Total weight
|
kg
|
1781~12086
|
|
|
|
|
|
|
||||||
|
Trolley weight
|
kg
|
405~740
|
|
|
|
|
|
|
||||||
|
Max. Wheel load
|
kn
|
13.5~90.94
|
|
|
|
|
|
|
||||||
|
Travel rail
|
|
P24~P43
|
|
|
|
|
|
|
||||||
|
Lifting speed
|
m/min
|
0.8/5
|
0.8/5
|
0.8/5
|
0.8/5
|
0.8/5
|
0.8/5
|
0.8/5
|
||||||
|
Lifting height
|
m
|
≥ 6
|
≥ 6
|
≥ 6
|
≥ 6
|
≥ 6
|
≥ 6
|
≥ 6
|
||||||
|
Total motor power
|
kw
|
4.31
|
4.31
|
4.31
|
4.31
|
4.67
|
4.67
|
4.67
|
||||||
|
Crane speed
|
m/min
|
3-30
|
3-30
|
3-30
|
3-30
|
3-30
|
3-30
|
3-30
|
||||||
|
Trolley speed
|
m/min
|
2-20
|
2-20
|
2-20
|
2-20
|
2-20
|
2-20
|
2-20
|
||||||
|
Working duty
|
|
M5/A5
|
|
|
|
|
|
|
||||||
