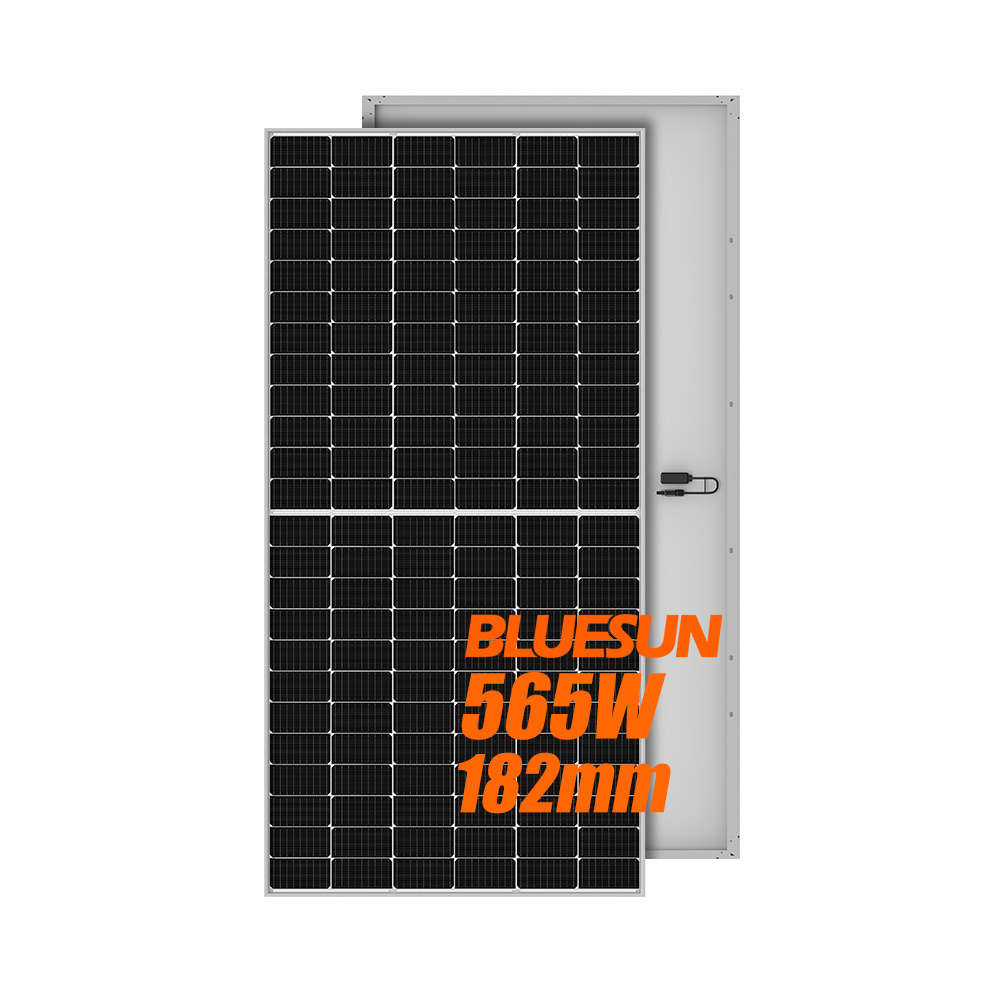

Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
BLUESUN
-
Model Number:
-
BSM565M10-72HPH
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2279*1134*35mm
-
Max Power(Pmax) [W]:
-
565w
-
Open Circuit Voltage (Voc) [V]:
-
49.90v
-
Max Power Voltage (Vmpp) [V]:
-
41.96v
-
Short Circuit Current (Isc) [A]:
-
14A
-
Maximum Module Efficiency:
-
21.3%
-
Max Power Current(Imp) [A]:
-
13.11A
-
Weight:
-
28.6kg
-
Max Series Fuse Rating:
-
25A
-
Junction Box:
-
3 bypass diode
-
Operating Temperature:
-
-40℃ to + 85℃
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
21.3%
-
Warranty:
-
25 years
-
Brand Name:
-
BLUESUN
-
Model Number:
-
BSM565M10-72HPH
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2279*1134*35mm
-
Max Power(Pmax) [W]:
-
565w
-
Open Circuit Voltage (Voc) [V]:
-
49.90v
-
Max Power Voltage (Vmpp) [V]:
-
41.96v
-
Short Circuit Current (Isc) [A]:
-
14A
-
Maximum Module Efficiency:
-
21.3%
-
Max Power Current(Imp) [A]:
-
13.11A
-
Weight:
-
28.6kg
-
Max Series Fuse Rating:
-
25A
-
Junction Box:
-
3 bypass diode
-
Operating Temperature:
-
-40℃ to + 85℃
Product Description
|
SPECIFICATIONS
|
|
|
|
|
|
|||||
|
Module Type
|
BSM545M10-72HPH
|
BSM550M10-72HPH
|
BSM555M10-72HPH
|
BSM560M10-72HPH
|
BSM565M10-72HPH
|
|||||
|
Maximum Power (Pmax/W)
|
545
|
550
|
555
|
560
|
565
|
|||||
|
Operating Voltage(Vmp/V)
|
42.06
|
42.16
|
42.24
|
42.33
|
42.42
|
|||||
|
Operating Current(Imp/A)
|
12.96
|
13.05
|
13.14
|
13.23
|
13.32
|
|||||
|
Open-Circuit Voltage(Voc/V)
|
49.7
|
49.8
|
49.9
|
50
|
50.1
|
|||||
|
Short-Circuit Current(Isc/A)
|
13.84
|
13.94
|
14.04
|
14.14
|
14.24
|
|||||
|
Module Efficiency（%）
|
21.1
|
21.3
|
21.49
|
21.68
|
21.87
|
|||||
|
STC: Irradiance 1000W/m2, Cell Temperature 25°C Air Mass AM1.5
|
|
|
|
|
|
|||||
|
|
|
|
|
|
||||||
Full Certificates
Production Process
Packing
Packing Configuration:
36pcs/carton, 720pcs/40hq
Project
30KW Solar System in
Sweden
Installation time：
September 2023
60KW Solar System in Croatia Installation time：March 2023
500KW Solar System in
Romania
Installation time：July 2023
Global Exhibitions
Intersolar -Germany
Intersolar -Mexico
RE+ -USA
Solar Solutions -Kortrijk
The Future Energy Show Philippines
Payment
|
Payment Term
|
T/T
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
||
|
|
|
FOB
|
|
||
|
|
|
CNF
|
30% T/T in advance, paid the balance against copy of B/L
|
||
|
|
|
CIF
|
|
||
|
|
L/C
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
||
|
|
West Union
|
Amount lower than 5000usd
|
|
||
|
Delivery Time
|
7~10days after receiving payment for one container
|
|
|
||
