Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BOSEN
-
Model Number:
-
BS H450x2
-
Voltage:
-
220V 50HZ 2PHASES
-
Dimension(L*W*H):
-
7000*1600*1800mm
-
Weight:
-
1000 KG, 2600kg
-
Max Speed:
-
700pcs/min
-
Speed:
-
600-700pcs/min
-
Servo motor:
-
Yaskawa
-
Application:
-
Flat bag, T shirt bag, cold cutting bag
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
CE
-
Width of bag:
-
200-400mmx2
-
Length of bag:
-
300-600mmx2
-
Total power:
-
12.5kw
-
Dimension:
-
7000x1600x1800mm
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Package bag, lable
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BOSEN
-
Model Number:
-
BS H450x2
-
Voltage:
-
220V 50HZ 2PHASES
-
Dimension(L*W*H):
-
7000*1600*1800mm
-
Weight:
-
1000 KG, 2600kg
-
Max Speed:
-
700pcs/min
-
Speed:
-
600-700pcs/min
-
Servo motor:
-
Yaskawa
-
Application:
-
Flat bag, T shirt bag, cold cutting bag
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
CE
-
Width of bag:
-
200-400mmx2
-
Length of bag:
-
300-600mmx2
-
Total power:
-
12.5kw
-
Dimension:
-
7000x1600x1800mm

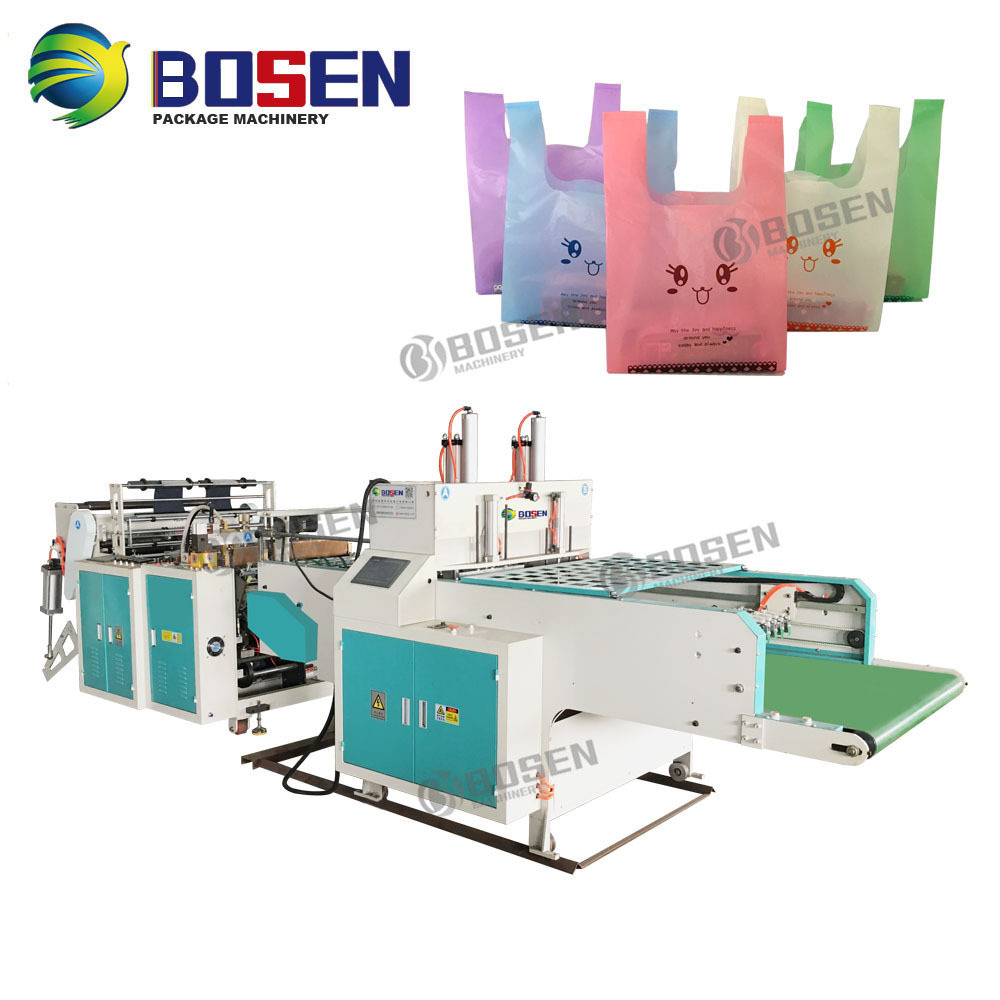

Fully Automatic High Qualtiy T-shirt Making Machine with Double Hot Sealing Hot Cutting Produce Lines Type Speed 500-700pcs/min
This machine could produce plastic flat bag, T shirt bag. It could produce printing bag or no printing bag. It could produce bags of HDPE LDPE degrable films as raw materials. Machine has PLC control system, double produce hot lines, doublw servo motors length fixing.
Siemens motor
Delta inverter
Touch screen changer
Yaskawa servo motor
Panasonic Photocell
Omron electric parts
| Model | BS H450x2 |
| Width of bag | 200-400mmx2 |
| Length of bag | 300-600mmx2 |
| Speed of bag | 400-700PCS/MIN |
| Thickness of bag | 0.01-0.05mm |
| Air compressor | 10HP |
| Total power | 12.5kw |
| Weight | 2600kg |
| Dimension | 7000x1600x1800mm |
1) it adopts computer to control, inverter motor to adjust the speed, and it has many advantages of top position stopping, steady function, accurate positioning etc.
2) It has 4 automatic photo electric feeding system, and one tracking photocell. automatic temperature control system, electric static eliminating system, automatic counting system and alarm system.
3) It has automatic conveyor system, which conveys the sealed and cut bags.
4) It is hot sealing and cold cutting. The hot sealing has too sides. One is for making flat bag sealing and another is for making T-shirt bag sealing.
