Quick Details
-
Bottle Volume(ml):
-
2000 ml
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
NC
-
Year:
-
2021
-
Voltage:
-
220V/380V/415V/440v
-
Dimension(L*W*H):
-
1750*760*2250mm
-
Hollow part volume:
-
2000ml
-
Clamping Force (kN):
-
75
-
Power (kW):
-
15
-
Weight (KG):
-
1250 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power:
-
15KW
-
Weight:
-
950kg
-
Production Capacity (BPH):
-
1600~2000bph
-
Color:
-
Blue or customized
-
Volume size:
-
0.1~2L
-
Cavity:
-
2 Cavity
-
Brand:
-
NC
-
Marketing Type:
-
100% High Quality
Quick Details
-
Neck Diameter(mm):
-
30 mm
-
Max.Bottle Diameter(mm):
-
330 mm
-
Max.Bottle Height(mm):
-
380 mm
-
Bottle Volume(ml):
-
2000 ml
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
NC
-
Year:
-
2021
-
Voltage:
-
220V/380V/415V/440v
-
Dimension(L*W*H):
-
1750*760*2250mm
-
Hollow part volume:
-
2000ml
-
Clamping Force (kN):
-
75
-
Power (kW):
-
15
-
Weight (KG):
-
1250 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power:
-
15KW
-
Weight:
-
950kg
-
Production Capacity (BPH):
-
1600~2000bph
-
Color:
-
Blue or customized
-
Volume size:
-
0.1~2L
-
Cavity:
-
2 Cavity
-
Brand:
-
NC
-
Marketing Type:
-
100% High Quality

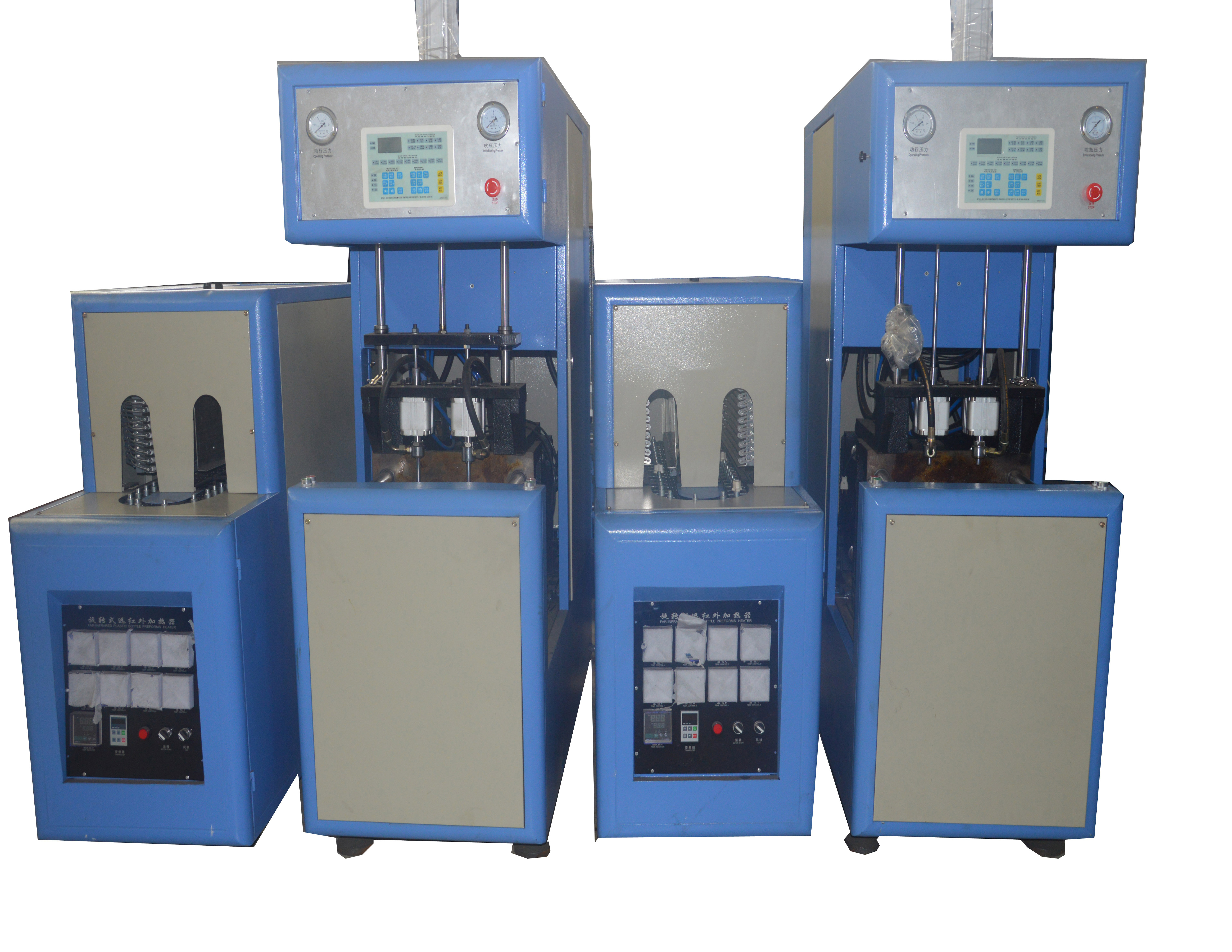

Semi Automatic HZ-880 Mineral Water Bottles Blow Moulding Machine
HZ series semi automatic bottle blowing machine is the most stable two step blow down equipment of our factory, from one cavity to four cavity, the maximum is 20L,suitable for blowing PET, PP crystal forming kind raw material any shape carbonated beverage bottles, mineral water bottles, cosmetics bottles, wide diameter bottles, high temperature resisting bottles and other plastic container.
Machine components of
HZ-880 semi-auto blowing machine
|
Item |
Name |
Brand |
|
P neumatic components |
Cylinder |
TAIWAN Air TAC |
|
Electrical components |
M ain computer |
TAIWAN DELTA |
|
H uman machine interface (HMI) |
TAIWAN DELTA |
|
|
R elay |
KOREA AUTONICS |
|
|
Photoelectric switch |
TAIWAN Air TAC |
|
|
Remark |
A ll the components are select ed with I nternationally applied h igh-tech products . |
|
1. T echnical P arameters of ZG1000A blowing machine
|
Model |
HZ-880 |
|
|
Output |
B ased on bottle shape |
800-1200PCS/H |
|
Product S pecification s |
Bottle neck size |
10mm-120mm |
|
Bottle b ody diameter |
15mm-130mm |
|
|
Bottle height |
50mm-350mm |
|
|
M old S pecification s |
C avit y |
2cavities |
|
M old thickness |
100~250mm |
|
|
M ax stretch ing distance |
430*380mm |
|
|
M achine Powe r |
Power Voltage |
380v 3Phase / 220v 3Phase 50/60HZ |
|
I nstalled power / A ctual power |
18kw/10kw |
|
|
Air Source |
High pressure air compressor |
1.2m3/min 3.0MPa |
|
Air dryer |
0.6m3/min 1.0MPa |
|
|
W ater chiller |
C hilled water yield |
15L/min |
|
Blowing machine size |
L ength*width*height / weight
|
1700*650*1700mm/1000kg |
|
Heater size |
L ength*width*height / weight
|
1700*600*1450mm/300k |
Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.
We warmly welcome customer to visit our factory at any time,you will see the machine working and running conditon in our factory!
