- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
According to the picture
-
Application:
-
woodworker
-
Weight (KG):
-
85 KG
-
Marketing Type:
-
hot sale with competitive price
-
Core Components:
-
Other
-
Table size:
-
120cm* 100cm
-
Folding dimension:
-
100*60*35cm
-
Expanded size:
-
215* 250*75cm
-
Guide Rail:
-
125 * 100*1000mm
-
Machine weight:
-
85kg
-
Flip Plate:
-
50*30cm
-
style:
-
Horizontal
-
place of origin:
-
China
-
province:
-
province
-
brand:
-
ZDS
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZDS
-
Usage:
-
Sawing Plank/Square Log
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
According to the picture
-
Application:
-
woodworker
-
Weight (KG):
-
85 KG
-
Marketing Type:
-
hot sale with competitive price
-
Core Components:
-
Other
-
Table size:
-
120cm* 100cm
-
Folding dimension:
-
100*60*35cm
-
Expanded size:
-
215* 250*75cm
-
Guide Rail:
-
125 * 100*1000mm
-
Machine weight:
-
85kg
-
Flip Plate:
-
50*30cm
-
style:
-
Horizontal
-
place of origin:
-
China
-
province:
-
province
-
brand:
-
ZDS
Products Disply

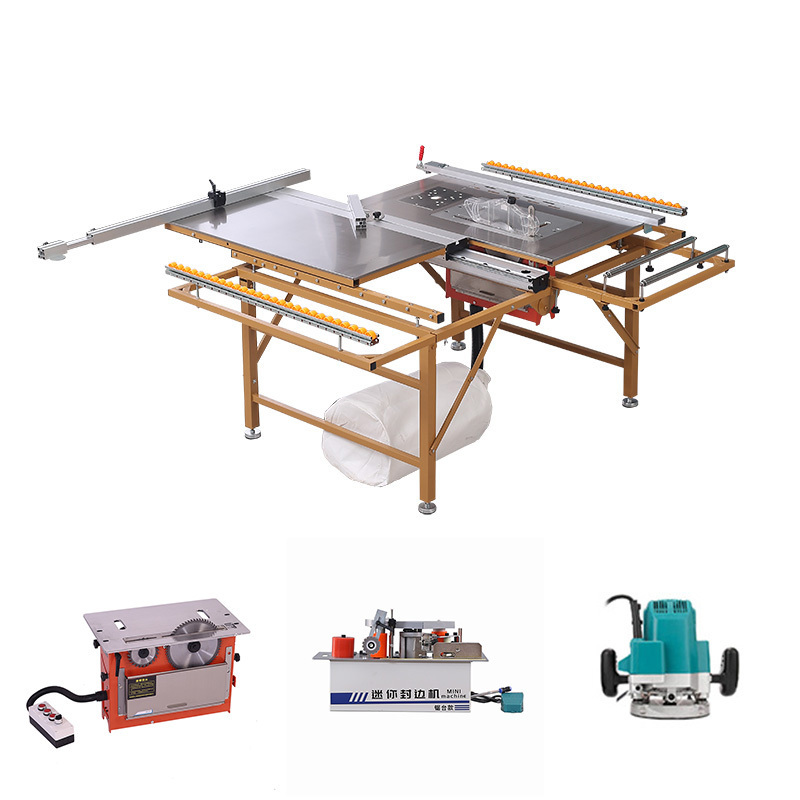

ZDS125 Dust-free sliding table saw, the main slide rail adopts light precision rail, the auxiliary rail adopts 10 precision bearings + mute cotton, the main table top is made of stainless steel with a thickness of 1mm, the frame is a 4*4cm square tube, and double beams on both sides are reinforced, which can be extended on three sides. Equipped with 2 sets of enlarged universal wheels, easy to move after folding.
It can cut 1.2 meters horizontally, cut 2.4 meters vertically, and cut 45° obliquely.
Precise and portable, stable and reliable, highly practical, and can be operated by a single person.
Details Images
Main rail
125*100*1000mm
Precision rail, strong and sturdy
Secondary rail
10 precision bearings + silent cotton, push and pull smoothly
|
Name
|
|
Manually lift dust-free saw
|
Manual lift brushless saw
|
Electric lift dust-free saw
|
Electric Lift Brushless Saw
|
|
|
Model
|
|
ZDS10
|
ZDS11
|
ZDS20
|
ZDS21
|
|
|
Working voltage
|
|
220v/50Hz
|
220v/50Hz
|
220v/50Hz
|
220v/50Hz
|
|
|
Big saw power
|
|
2600w
|
1600w
|
2600w
|
1600w
|
|
|
Small saw power
|
|
1600w
|
550w
|
1600w
|
550w
|
|
|
Big saw speed
|
|
4500r/min
|
4500r/min
|
4500r/min
|
4500r/min
|
|
|
Small saw speed
|
|
13000r/min
|
5500r/min
|
13000r/min
|
5500r/min
|
|
|
Vacuuming power
|
|
1200w
|
1200w
|
1200w
|
1200w
|
|
|
Overall size
|
|
50*30*35cm
|
50*30*35cm
|
50*30*35cm
|
50*30*35cm
|
|
|
Weight
|
|
23kg
|
23g
|
26kg
|
26kg
|
|
|
Saw blade size
|
Big saw
|
8/9inch
|
8/9inch
|
8/9inch
|
8/9inch
|
|
|
|
Small saw
|
4inch
|
5inch
|
4inch
|
5inch
|
|
|
Lifting height method
|
Big saw
|
Manually
|
Manually
|
Electric
|
Electric
|
|
|
|
Small saw
|
Manually
|
Manually
|
Manually
|
Manually
|
|
|
Motor
|
|
Hanchuan Copper core motor
|
Custom Brushless Motors
|
Hanchuan Copper core motor
|
Custom Brushless Motors
|
|
