Quick Details
-
Brand Name:
-
SAIPWELL
-
Model Number:
-
LW26-20
-
Max. Current:
-
100A
-
Mechanical Life:
-
100,000
-
Name:
-
function of change over switch
-
Function:
-
rotary switch
-
No. of Poles:
-
2P, 3P, 4P (optional)
-
Operative Frequency:
-
120times/Hour
-
Installing Panel thickness:
-
1 to 5mm
-
Certificate:
-
CE, RoHS
-
Feature:
-
Universal rotary selector switch
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
440V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAIPWELL
-
Model Number:
-
LW26-20
-
Max. Current:
-
100A
-
Mechanical Life:
-
100,000
-
Name:
-
function of change over switch
-
Function:
-
rotary switch
-
No. of Poles:
-
2P, 3P, 4P (optional)
-
Operative Frequency:
-
120times/Hour
-
Installing Panel thickness:
-
1 to 5mm
-
Certificate:
-
CE, RoHS
-
Feature:
-
Universal rotary selector switch

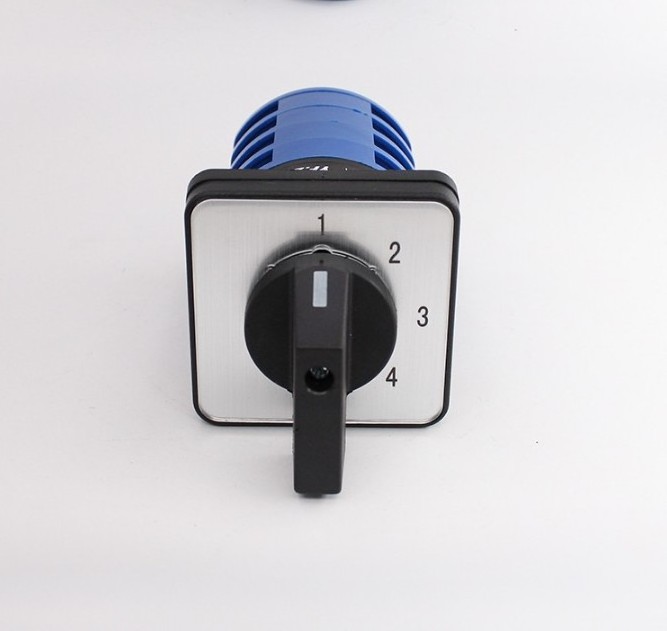

Saipwell high quality 20A 25A 32A 63A 80A 100A On Off function of change over switch
| Saipwell high quality 20A 25A 32A 63A 80A 100A On Off automatic electrical change-over switch |
| 20A 25A 32A 63A 80A 100A On Off function of change over switch |
| On Off function of change over switch |
P roduct Characteristics :
Introduction LW26 series Universal rotary selector switch applied to circuits of AC 50Hz with working voltave up to 440V and rated working current up to 100A.
LW26 is suitable to control:air-conditioner,water pump and ventilating equipments,and AC motors with small power..
LW26 series Universal rotary selector switch have six current ratings:20A,25A,32A,40A,63A,80A and 100A.
LW26series has the finger protection terminals,which offers an extra advantage.
LW26 series Universal rotary selector switch has Larger insulation distance,quick disconnectinvg response.And is a good choice For DC circuits.LW 26 has additional contact which enable us to install the contact separetely.
LW26 seriescomply with:GB/T 14048.3,and IEC 60947-3.
Parameters
Technical parameters:
|
No. |
Tech Parameters |
Universal rotary selector switch |
|
1. |
rated voltage |
below 440V |
|
2. |
rated current |
20A,25A,32A,63A,80A,100A |
|
3. |
frequency |
AC50HZ |
|
4. |
No.of poles |
2P,3P,4P |
|
5. |
No.of layers |
make as required with circuit diagram |
|
6. |
panel size |
30*30mm,48*48mm,64*64mm,88*88mm |
|
7. |
colour of handle |
black,white,red,grey |
|
8. |
Working temperature |
-25°C~+40°C REMARKS:the average temperature mustn’t be pass 35°C |
|
9. |
Working height |
≤2,000m |
|
10. |
Relative humidity |
≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C (eg.:humidity 90%----teperature20°C) |
|
11. |
Instalation conditions |
polution class III |
|
12. |
Mechanical life |
0.1*106times |
|
13. |
Electrical life |
0.03*106times |
|
14. |
Operative frequency |
120times/hour |
|
15. |
transform angle |
30°/45°/60°/90°/120°/135°/150° |
Other Type:
| Description | LW30-25(20) | LW30-32 | LW30-40 | LW30-63 | LW30-80 | LW30-100 | ||||||||
| Rated thermal current | ITH | A | 25(20) | 32 | 40 | 63 | 80 | 100 | ||||||
| Rated working voltage | LE | V | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 |
| Ie/Pe | Ie/Pe | |||||||||||||
| AC-21A | A/KW | 20/- | 20/- | 32/- | 32/- | 40/- | 40/- | 63/- | 63/- | 80/- | 80/- | 100/- | 100/- | |
| AC-22A | A/KW | 20/- | 20/- | 32/- | 32/- | 40/- | 40/- | 63/- | 63/- | 80/- | 80/- | 100/- | 100/- | |
| AC-23A | A/KW | 41379 | 15/7.5 | 22/5.5 | 41600 | 30/7.5 | 30/15 | 16011 | 43/22 | 57/18.5 | 57/30 | 70/22 | 70/37 | |
| AC-3 | A/KW | 11.7/3 | 11.7/5.5 | 41379 | 15/7.5 | 22/7.5 | 41600 | 13455 | 36/18.5 | 43/15 | 57/30 | 57/18.5 |
57/30
|
|
