Quick Details
-
Brand Name:
-
YUYE
-
Model Number:
-
YGL-250
-
Max. Current:
-
250A
-
Type:
-
YGL
-
Rated insulation voltage:
-
750V
-
Dielectric strength V:
-
3000V
-
Rated impaction withstand voltage Uimp:
-
6kV
-
Rated working voltage Ue:
-
AC 400/690V
-
Rated frequency:
-
50Hz
-
Weight (without handle):
-
3P:1.6/4P:2kg
-
Market:
-
Middle East, south Africa, American
-
Warranty period:
-
12 months
-
MOQ:
-
1 Set
-
Certification:
-
CCC/CE/ CB
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
660V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUYE
-
Model Number:
-
YGL-250
-
Max. Current:
-
250A
-
Type:
-
YGL
-
Rated insulation voltage:
-
750V
-
Dielectric strength V:
-
3000V
-
Rated impaction withstand voltage Uimp:
-
6kV
-
Rated working voltage Ue:
-
AC 400/690V
-
Rated frequency:
-
50Hz
-
Weight (without handle):
-
3P:1.6/4P:2kg
-
Market:
-
Middle East, south Africa, American
-
Warranty period:
-
12 months
-
MOQ:
-
1 Set
-
Certification:
-
CCC/CE/ CB
Why Choose Us
Our advantage
One Two Three ELectric Co.,Ltd is the biggest ATS,LOAD BREAKER,CIRCUIT BREAKER manufacturer in China - more than 300 companys make OEM,ODM order from us.
Rich Experience
Our factory was founded in 2004, have a long history in manufacturing and We have export to all over the world till now, The total Annual sales is about USD17,000,000.We firmly promise to top quality, competitive price, quick delivery and good before/after sales services. OEM,ODM service is welcomed.
Quality warranty
We have our own factory, engi neer team and a set of equipment&n bsp;for the product test, Beside,we can control the production (also mean we can control the lead -time) quality of the product very well. We have passed ISO9001:2008 Quality Management System and CCC, CE.
Products Description
YGL-63A
YGL-100A
YGL-400A(630A)
YUYE Wholesale High Quality 220A Automatic Electrical Blade Fuse Knife Switch
YGL-63~3200A/ I TYPE Fuse Group of Isolation Switch

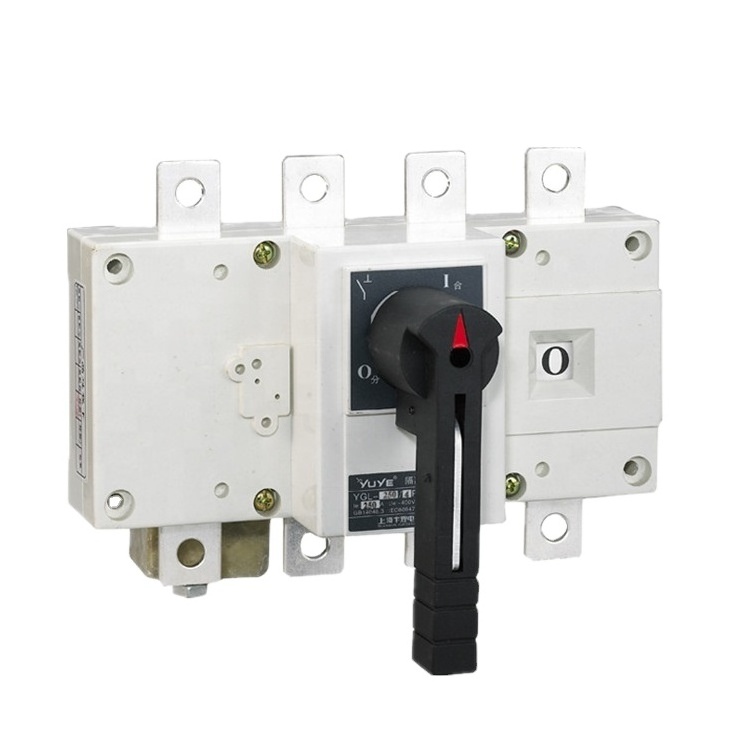

YGL series Load isolation switch can be divide into 18 specs from 125A to 4000A. It is the basic type pf module design. It has three poles and four poles(three poles+ switch neutral pole) applied to make and break circuit or electric isolate, over 1000A is only for electric isolation.Symbol window on front face indicates the contact on-off state.
Structure and Operation Mode
Direct operation on front face: the handle is installed on the front face of switch.
Direct operation on side face: the handle is installed on the right of switch(it is noted separately if the handle is installed on theieft of switch)
Front face operation outside of cabinet: the handle is installed on the front face outside of the distribution cabinet door.
Side face operation outside of cabinet: the handle is installed on the right of distribution cabinet outside(it is noted separately if the handle is installed on the left).
Service environment
YGL load-isolation switch can operate under the following conditions
Altitude not more than 2000m;
The rang of ambient temperature is from 5°c to 40°c;
Relative humidity not more than 95%;
The environment without any explosive medium.
The environment without any rain or snow attacking.
Note: If the product is expected to be used in the envinment where temperature is over+40°c or below -5°c~-45°c, user's shall tell it to the manufacturer.
Operation mode
Direct operation: The handle is installed in the middle of switch directly.
Operate outside of cabinet: The handle is installed outside of distribution cabinet.
It can be assembled two groups auxiliary contacts.
NOTE: For more detail information you wanan know, pls feel free contact with me. Thanks!
Product Paramenters
Main Technology Paremeter
YGL-63~3200A/ I TYPE Fuse Group of Isolation Switch
|
Conventional rank
|
63A
|
100A
|
100A
|
3200M
|
160A
|
4000
|
250A
|
|
|||||||
|
Rated current In(A)
|
40
|
63
|
80
|
100
|
125
|
160
|
200
|
250
|
|||||||
|
Dielectric strength (V)
|
5000
|
|
|
|
|
|
|
|
|||||||
|
Rated surge-resistant voltage Uimp KV
|
6
|
|
|
|
|
|
|
|
|||||||
|
Rated breaking capability Icn (A Rms) AC230 380V
|
320
|
504
|
640
|
800
|
1000
|
1000
|
1600
|
1600
|
|||||||
|
Rated making capability Icn (A Rms) AC230 380V
|
400
|
630
|
800
|
1000
|
1250
|
1600
|
2000
|
2500
|
|||||||
|
Rated short-current making capability Icm(kA peak value)
|
2.84
|
|
|
|
13.6
|
|
17
|
|
|||||||
|
Mechanical durability 380V
|
1700
|
|
|
|
1400
|
|
|
|
|||||||
|
Electrical curability 380V
|
300
|
|
|
|
200
|
|
|
|
|||||||
|
Operation moment (Nm)
|
1.2
|
|
|
|
6.5
|
|
10
|
|
|||||||
|
Weight(kg)
|
0.37-0.41
|
|
|
|
1.3-1.5
|
|
2.2-2.6
|
|
|||||||
