ASTM E96 Textile Fabric Water Vapour Transmission Tester Fabric Moisture Water Vapor Permeability Tester

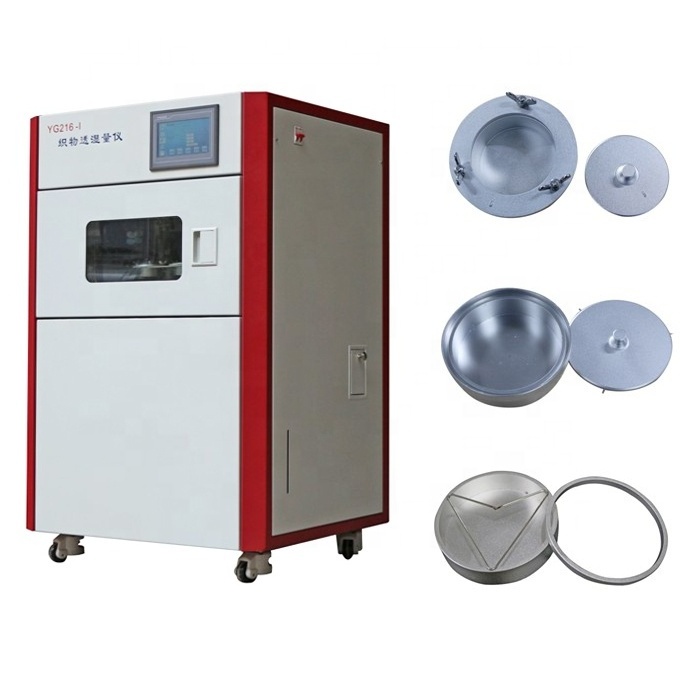

YG216 Textile Fabric Water Vapour Permeability Tester

Application scope:
Used for moisture permeability test of various fabrics, film materials and coated fabrics.

Standards:
GB/T12704, ASTME96, JISL1099, BS 7209

Instrument features:
1. Apply a variety of standards and measurement methods.
2. Rotary sample holder, adjustable speed, uniform test than fixed sample holder.
3. The wind speed is adjustable, the use of imported wind speed sensor calibration, speed accuracy and stability .
4. Temperature and humidity control using PID algorithm, small fluctuations, effectively prevent temperature and humidity overshoot; with temperature and humidity calibration function, can well avoid the sensor bias caused by long-term use.
5. High-precision temperature and humidity sensors, test data stability, high precision.
6. SCM control, color touch screen operation, modular design, temperature and humidity digital settings , intelligent control, real-time display of temperature and humidity and time.
7. Input parameters in the color touch screen to calculate WVT, WVP and PV values.
8. The instrument is equipped with PC software, can record temperature and humidity curve, easy to calculate and print a large number of data reports.

Technical Parameters
1. Adjustable temperature control accuracy/resolution: 18-50°C±0.5°C/±0.1°C
2. Adjustable humidity relative humidity: 40-95% RH, ±1% RH
3. Tthe box airflow speed: 0.1 ~ 0.8m / s
4. The number of layers and number of moisture permeable cups: 8 pcs, single layers
5. Test units: English, metric
6. Display mode: color touch screen
7. The use of power: AC220V 50HZ 3500W
8. The appearance size: 740 × 670 × 1185mm
9. Weight: 200kg

Three specifications optional:
