Quick Details
-
Main Circuit Rating Voltage:
-
110~660V
-
Main Circuit Rating Current:
-
12A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GWIEC
-
Model Number:
-
LE1-D12/QCX2
-
Suitable for frequency:
-
50/60HZ
-
OEM::
-
YES
-
Electricity Type::
-
AC
-
electrical life::
-
10000
-
Main Circuit Rating Current::
-
9A-95A le1 d12 ac contactor magnetic starter
-
Main Circuit Rating Voltage::
-
up to 550V le1 d09 ac contactor magnetic starter
Quick Details
-
Electricity Type:
-
AC
-
Number of Pole:
-
3
-
Phase:
-
3
-
Main Circuit Rating Voltage:
-
110~660V
-
Main Circuit Rating Current:
-
12A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GWIEC
-
Model Number:
-
LE1-D12/QCX2
-
Suitable for frequency:
-
50/60HZ
-
OEM::
-
YES
-
Electricity Type::
-
AC
-
electrical life::
-
10000
-
Main Circuit Rating Current::
-
9A-95A le1 d12 ac contactor magnetic starter
-
Main Circuit Rating Voltage::
-
up to 550V le1 d09 ac contactor magnetic starter
Product Description
Application:

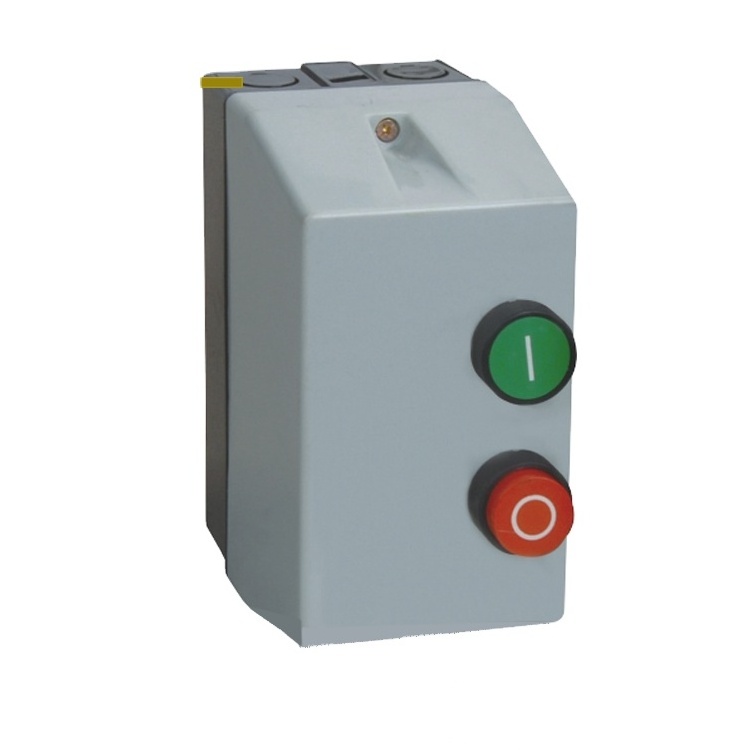

- LE1-D Series magnetic starter is mainly applied to circuit of AC 50 or Hz.voltage 550V for far distance making and breaking circuit and frequently starting and controlling motor
- It has the features small volume,light weight,low power consumption,high efficiency safe and reliable performance
- It complies to IEC947-4-1
Specification:
| Type |
Rated
Current(A) |
Maximum Power AC3 duty (KW) | SuitableThermal Relay(A) | |||||
|
220V
230V |
380V
400V |
415V | 440V | 500V |
660V
690V |
|||
| LE-D09 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 |
LR2 D1312
LR2 D1314 |
| LE-D12 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | LR2 D1316 |
| LE-D18 | 18 | 4 | 7.5 | 9 | 9 | 10 | 10 | LR2 D1321 |
| LE-D25 | 25 | 5.5 | 11 | 11 | 11 | 15 | 15 |
LR2 D1322
LR2 D2353 |
| LE-D32 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | LR2 D2355 |
| LE-D40 | 40 | 11 | 18.5 | 22 | 22 | 22 | 30 |
LR2 D3353
LR2 D3355 |
| LE-D50 | 50 | 15 | 22 | 25 | 30 | 30 | 33 |
LR2 D3357
LR2 D3359 |
| LE-D65 | 65 | 18.5 | 30 | 37 | 37 | 37 | 37 | LR2 D3361 |
| LE-D80 | 80 | 22 | 37 | 45 | 45 | 55 | 45 |
LR2 D3363
LR2 D3365 |
| LE-D95 | 95 | 25 | 45 | 45 | 45 | 55 | 45 | LR2 D3365 |
outline and mounting dimension:
