Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300x900mm
-
Cutting Thickness:
-
Depends on material
-
Control Software:
-
Ruida
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUEHONG LASER
-
Weight (KG):
-
350 KG
-
Laser power:
-
80w/100w/120w/130w/150w
-
Laser tube:
-
Sealed CO2 Glass Tube
-
max speed:
-
500mm/s
-
Function:
-
cut,engraver,scan
-
Certification:
-
CE,Business licence
-
warranty:
-
2years
-
Laser head:
-
1 Head/dual heads
-
Working table:
-
Aluminum Knife/honeycomb
-
Application meterial:
-
Non-material.Acrylic. Wood.MDF
-
Working Voltage:
-
220V /50HZ~60HZ
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
500mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300x900mm
-
Cutting Thickness:
-
Depends on material
-
Control Software:
-
Ruida
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUEHONG LASER
-
Weight (KG):
-
350 KG
-
Laser power:
-
80w/100w/120w/130w/150w
-
Laser tube:
-
Sealed CO2 Glass Tube
-
max speed:
-
500mm/s
-
Function:
-
cut,engraver,scan
-
Certification:
-
CE,Business licence
-
warranty:
-
2years
-
Laser head:
-
1 Head/dual heads
-
Working table:
-
Aluminum Knife/honeycomb
-
Application meterial:
-
Non-material.Acrylic. Wood.MDF
-
Working Voltage:
-
220V /50HZ~60HZ
main core specifications:

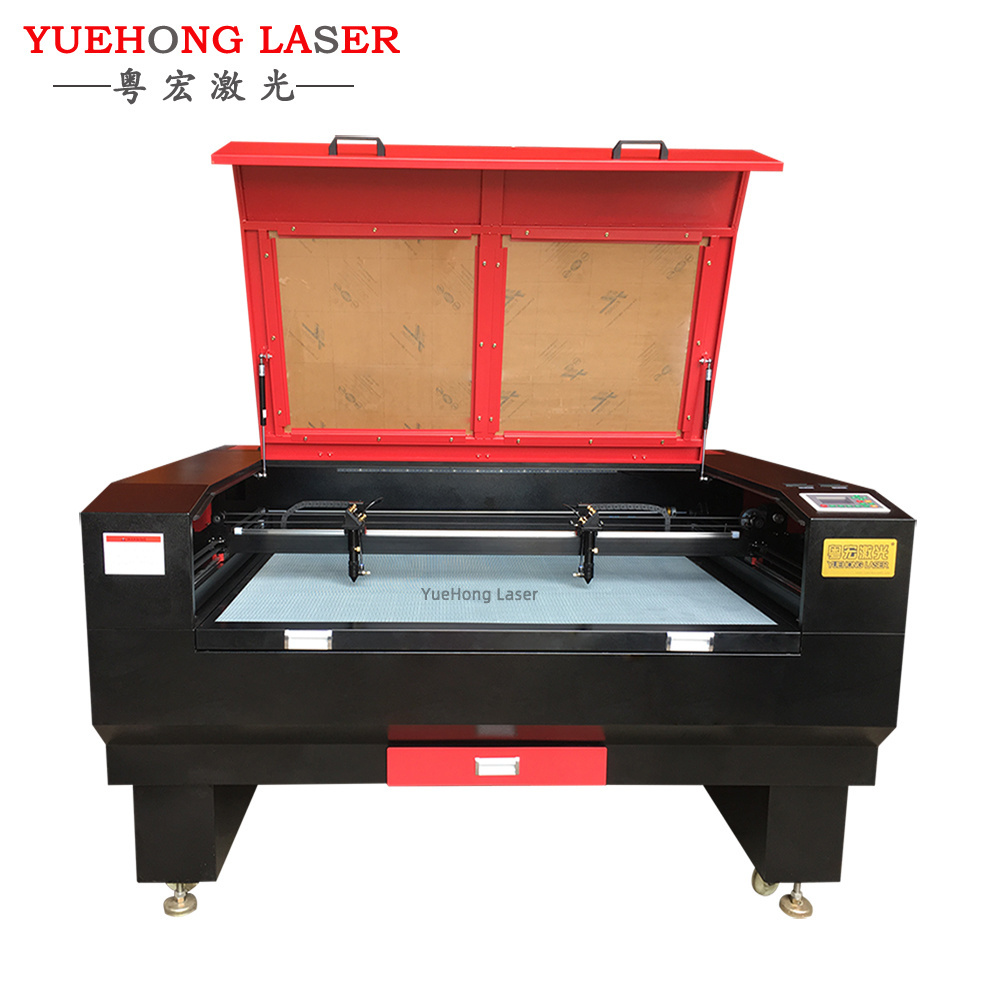

1.Model :YH1390
2.Working size:1300x900mm
3.Laser tube power:80w /100w /120w/130w/150w option
4.Laser power supply:80w /100w /120w/130w/150w option
5.working table : knift table/honeycomb table
6.leadshine motor and driver
7.ruida control systems RDC6442G
8.industry chiller cw3000/cw5000/cw5200 option
9.one head or two head option
Products Advantage:
v Heavy body more steady difficult deformation and protect rust.
v Multi function one machine can cut ,engraving & scan .
v Have fine cutting and engraving effect and price advantage.
v Support U-download data, support off-line
v Pass-through front and rear doors to accommodate long work pieces.
v Emergency stop (turn off the machine immediately when there is an accident)
v color layer setting(change the working speed and power by using color settings).
v Glass viewing windows creating a safe enclosure for laser processing
v large internal memory capacity improves the working speed with greater efficiency.
v 3 unique protection functions: anti-interference function,water-protective function,and power cut offer function.
v .it can make delicate and complicated designs on acrylic,wood ,plexiglass,avoidpolishing .processing high speed,&high precision.
v aluminum strip shape platform can bear heavier materials.such as acrylic, wood,mdf,etc nonmetal material.homeycomb platform suitable for leather , cloth,frabic,paper.etc light material.
Applicable Industries:
Advertising, Signage,Sign Letters, Advertising Letters Photo Frame,Gifts & Crafts, Promotional Items, Awards, Models,Architectural Models, etc
Applicable Materials:
Acrylic, Plastic,PMMA,Perspex,Plexiglass,Wood, MDF,Fabric,Double color board,Plywood, ABS, Organic Glass,Paper, Paperboard,Cardboard,Leather, Bamboo,Rubber Sheet, etc.
Machine Parameter :
Gentle Suggestion:
|
Material |
80w |
100w |
130w |
150w |
| Acrylic | ≤10mm | ≤ 12mm | ≤ 15mm | ≤ 20mm |
| MDF |
≤ 5 mm |
≤ 6 mm | ≤ 8 mm | ≤ 10 mm |
|
Plywood |
≤ 5 mm |
≤ 8 mm | ≤ 10 mm | ≤ 12 mm |
|
Cloth/Fabric |
≤5 mm | ≤6 mm | ≤7 mm | ≤8 mm |
1.Package : plastic film +plywood case
2.shipping: This item will be delivered after 5 working days since get your clear payment. Saturday, Sunday and Chinese public holiday is not available.
It all depends on the vessel and the destination port of how long to reach, due to different countries.
The shipping item is C&F destination sea port. That is to say, we only deliver this goods to your sea port but not to your door. So please pick up this machine at your sea port as soon as possible when it arrives.
The extra warehouse fee and importing taxes in destination sea port should be covered by buyers.
1.we are directly maufacturer of laser cutting machine ,laser engraving machine ,cnc router with rich experience in guagnzhou china mainland.
2.our facoty is located in guangzhou beautiful city .
3.free make sample. free training for how to operate the machine.
4.good quality good price.no middle businessman make the profit. directly price to supply to client.
5.CE certificate.
