Quick Details
-
Optical Resolution:
-
640*480
-
Scan Speed:
-
30fps
-
Brand Name:
-
Wepoy
-
Place of Origin:
-
Guangdong, China
-
Scan module:
-
Two dimensional image scanner:SE2707
-
Scan angle:
-
Tilt: 360' , Pitch:+/-45, Skew: +/- 45'
-
BT:
-
BT 4.0,Visual range less than 10m
-
Operating Temp:
-
(-10℃-50℃)
-
Storage temp:
-
(-20℃-70℃)
-
Operating Humidity:
-
5%-95% Relative humidity,non-condensing
-
Battery Capacity:
-
1000mAh
-
Dimensions (LxWxD):
-
66*44*24mm
-
Weight:
-
65g
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
N2707
-
Max Paper Size:
-
600*600mm
-
Optical Resolution:
-
640*480
-
Scan Speed:
-
30fps
-
Brand Name:
-
Wepoy
-
Place of Origin:
-
Guangdong, China
-
Scan module:
-
Two dimensional image scanner:SE2707
-
Scan angle:
-
Tilt: 360' , Pitch:+/-45, Skew: +/- 45'
-
BT:
-
BT 4.0,Visual range less than 10m
-
Operating Temp:
-
(-10℃-50℃)
-
Storage temp:
-
(-20℃-70℃)
-
Operating Humidity:
-
5%-95% Relative humidity,non-condensing
-
Battery Capacity:
-
1000mAh
-
Dimensions (LxWxD):
-
66*44*24mm
-
Weight:
-
65g

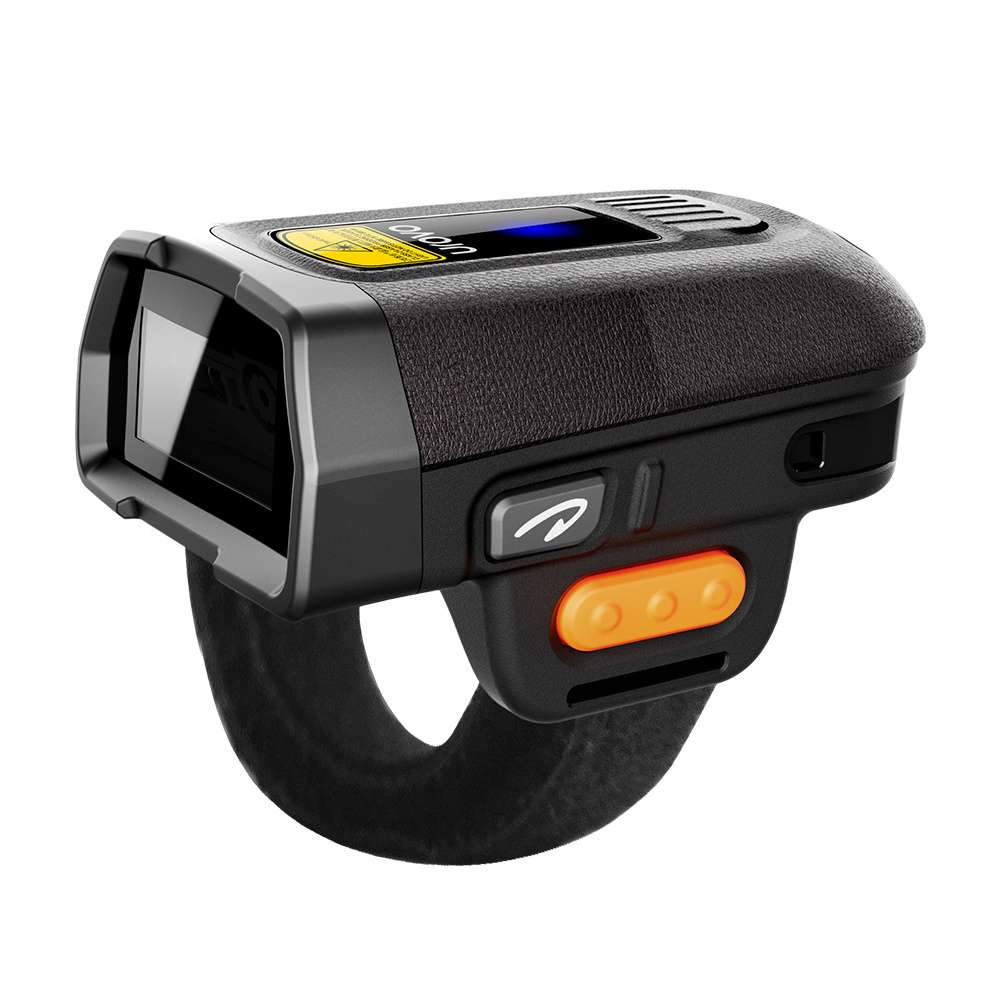

Wepoy R70 Portable 2D Ring Type Wireless Barcode Scanner Bluetooth Barcode Reader
| R70 2D Portable Ring Scanner | ||
| Physical | Dimensions (LxWxD) | 66*44*24mm |
| Weight | 65g | |
| Battery Capacity | 1000mAh | |
| Bluetooth | Bluetooth 4.0,Visual range less than 10m | |
| wireless |
Receptor for 2.4GHz require,communication
distance more than 30m. |
|
| User Interface | Reminder | Top LED instructor,Tail LED instructor,Buzzer |
| Button | Scan buttton,On/off button,custom button | |
| Scan trigger | Manual | |
| Charge Interface | Micro USB ,Pogo Pin | |
| 1D Scan Engine | Scan module | 1D laser scanner:Moto 955 |
| Scan speed | 104 times/s | |
| Scan angle | Roll:±35°;Pitch:±65°;Skew:±40° | |
| Print contrast | 25% | |
| Minimal resolution | ≥0.1mm(4mil) | |
| Symbols |
UPC/EAN, UPC/EAN with supplementals, Bookland EAN,
UCC Coupon Extended Code,
Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 111 Matrix 2 of 5, Interleaved 2 of 5, Codabar |
|
| 2D Scan Engine | Scan module | Two dimensional image scanner:SE2707 |
| Optical system | Illumination:White LED | |
| Aimer:Red LED spot | ||
| Scan speed | 30FPS | |
| Scan angle | Tilt: 360' , Pitch:+/-45, Skew: +/- 45' | |
| Print contrst | 35% | |
| Minimal resolution | 640*480 | |
| Symbols |
Aztec Code, Codabar, Codablock F, Code 11, Code 16K,
Code 128, Code 2 of 5, Code 39,
EAN/JAN 8, EAN-UCC Composite Codes, EAN-UCC Emulation, I ATA Code 2 of 5,
Interleaved 2 of 5, Matrix 2 of 5,MaxiCode,
(Australian Post, British Post, Canadian Post, China Post, Japanese Post,Korea Post, Netherlands Post, Planet Code, Postnet), Plessey Code,
PosiCode, QR Code, RSS Expanded, RSS Limited, RSS-14,
|
|
| Environmental | Operating Temp | (-10℃-50℃) |
| Storage temp | (-20℃-70℃) | |
| Operating Humidity | 5%-95% Relative humidity,non-condensing | |
