Quick Details
-
Grade:
-
Steel
-
Place of Origin:
-
Guangdong, China
-
Name:
-

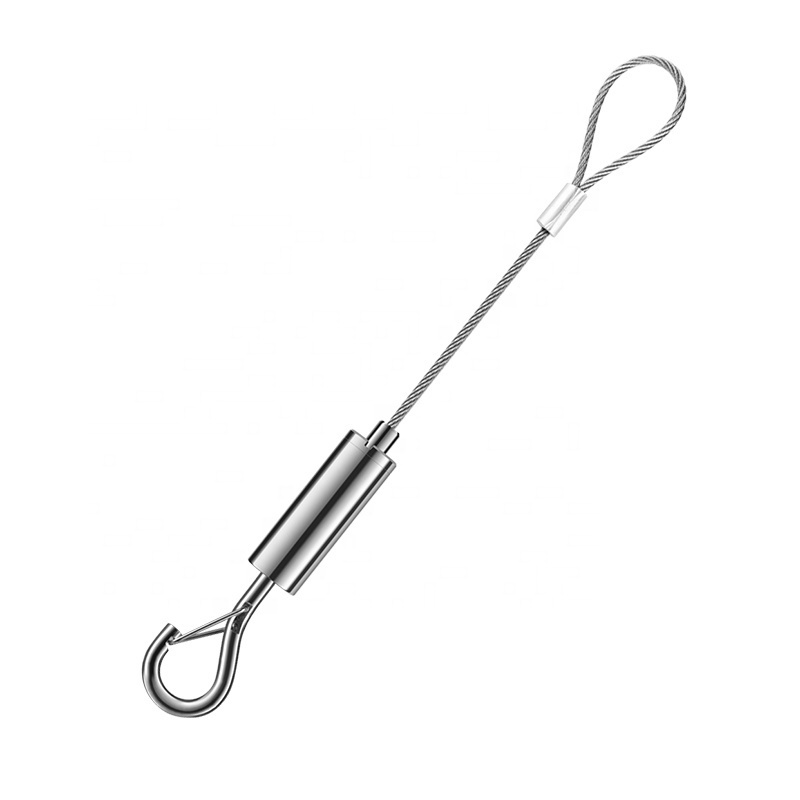

Y Fit Wire Suspension Cable Set for Lights
-
material of steel:
-
stainless steel
-
steel grade:
-
300 series
-
construction of steel:
-
7*7
-
material of coating:
-
no
-
length:
-
1.5M
-
breaking load:
-
20-30KG
-
end parts:
-
semi-round ceiling attachment and gripper with screw
-
application:
-
For hanging lamp or lights
-
place of origin:
-
China
Quick Details
-
Steel Grade:
-
steel
-
Type:
-
galvanized
-
Tolerance:
-
±5%
-
Grade:
-
Steel
-
Place of Origin:
-
Guangdong, China
-
Name:
-
Y Fit Wire Suspension Cable Set for Lights
-
material of steel:
-
stainless steel
-
steel grade:
-
300 series
-
construction of steel:
-
7*7
-
material of coating:
-
no
-
length:
-
1.5M
-
breaking load:
-
20-30KG
-
end parts:
-
semi-round ceiling attachment and gripper with screw
-
application:
-
For hanging lamp or lights
-
place of origin:
-
China
|
1.Diameter |
1.5mm ,etc |
Custom-made available |
|
2.construction |
7X7,etc |
|
|
3.material |
stainless steel 304 |
|
|
4.MOQ |
500pcs |
|
| 5.length | 1.5m or as requirement | |
| 6.assembly | ceiling attachment or hooks+ceiling kits,terminals + swivel gripper | |
| 7.surface for the assembly |
nickel plated |
|
|
|
||
|
9.Lead time |
7days if there were enough material in stock |
|
|
10.sample |
Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution. |
|
|
application |
for LEDlamps Panel lights grow lights padent lights string lights track lights can be used in paralle direction or vertical direction
|
|
|
components |
1.attachment :attachment are used to help to fit for the ceilings, walls or floor 2.cable:stainless and galvanized steel cable are available in various dimensions and lengths 3.grippers :compact designed grippers allow swift installation and instant adjustment 4.accessories:a lot of accessories, such as pull switches, cable clips and lock screws ,etc |
|
how to choose material: 1stain 1.1.1.
1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
|
Diameter |
construction |
weight(100m) |
Minimum Breaking load(N) |
|
1.0mm |
1*19 |
0.495 |
950(95kg) |
|
|
7*7 |
0.393 |
650 (65kg) |
|
1.2mm |
1*19 |
0.713 |
1440(144kg) |
|
|
7*7 |
0.566 |
950(95kg) |
|
1.5mm |
1*19 |
1.114 |
2200(220kg) |
|
|
7*7 |
0.884 |
1500(150kg) |
|
1.8mm |
1*19 |
1.604 |
3200(320kg) |
|
|
7*7 |
1.273 |
2100(210kg) |
|
2.0mm |
1*19 |
1.98 |
3900(390kg) |
|
|
7*7 |
1.527 |
2650(265kg) |
|
2.4mm |
1*19 |
2.851 |
5650(565kg) |
|
|
7*7 |
2.264 |
3800(380)kg |
|
2.5mm |
1*19 |
3.094 |
6100(610kg) |
|
|
7*7 |
2.381 |
4100(410kg) |
|
3.2mm |
7*7 |
4.024 |
6850(685kg) |
|
|
7*19 |
3.901 |
6800(680kg) |
|
3.8mm |
7*19 |
5.675 |
9650(965kg) |
|
|
7*7 |
5.502 |
9600(960kg) |
|
4.0mm |
7*19 |
6.609 |
12500(1250kg) |
|
4.2mm |
7*7 |
6.933 |
13000(1300kg) |
|
4.5mm |
7*7 |
7.958 |
13500(1350kg) |
|
4.8mm |
7*19 |
8.778 |
15300(1530kg) |
|
6.0mm |
7*19 |
8.716 |
23900(2390kg) |
