Quick Details
-
Model Number:
-
W-3
-
Dimension:
-
600*347*451mm(W*H*D)
-
Storage:
-
NA
-
SNR:
-
NA
-
Output Power:
-
800W(RMS)3200W(PEAK)
-
Format:
-
NA
-
model:
-
W-3
-
Type:
-
two way line array system
-
Size:
-
1x12"
-
RMS power:
-
800 WATT
-
PEAK power:
-
3200watt
-
Finish:
-
Textured high-density polyurethane coating
-
Enclosure Material:
-
Birch Plywood
-
Net Weight:
-
28.5KG
-
warranty:
-
1 years free warranty
-
certificate:
-
CE
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CVR PRO AUDIO
-
Model Number:
-
W-3
-
Dimension:
-
600*347*451mm(W*H*D)
-
Storage:
-
NA
-
SNR:
-
NA
-
Output Power:
-
800W(RMS)3200W(PEAK)
-
Format:
-
NA
-
model:
-
W-3
-
Type:
-
two way line array system
-
Size:
-
1x12"
-
RMS power:
-
800 WATT
-
PEAK power:
-
3200watt
-
Finish:
-
Textured high-density polyurethane coating
-
Enclosure Material:
-
Birch Plywood
-
Net Weight:
-
28.5KG
-
warranty:
-
1 years free warranty
-
certificate:
-
CE

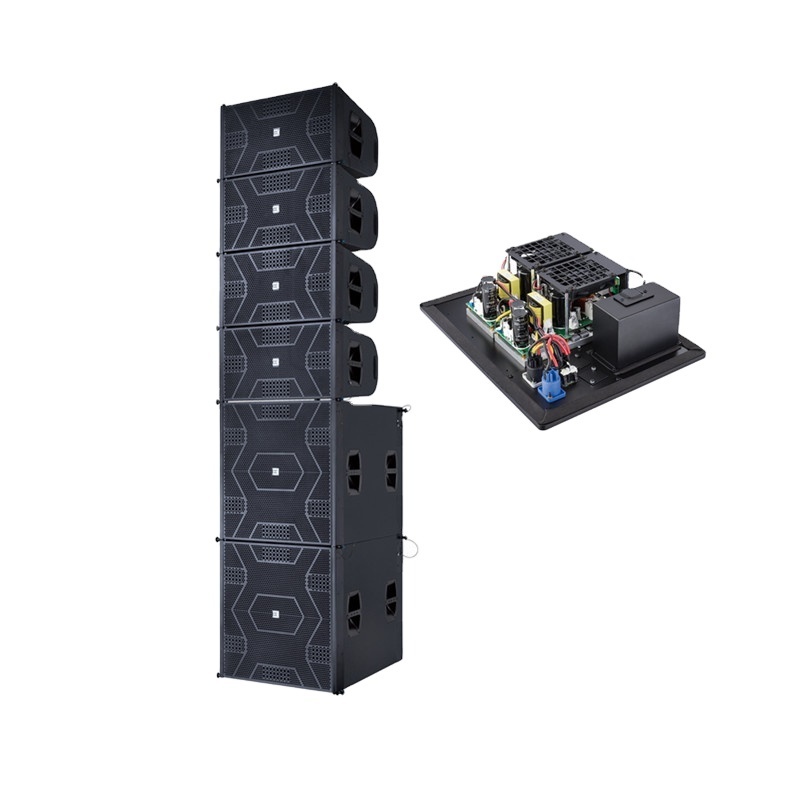

W- 3P/W-3 is a line a new design cabinet, feature with a 12 inch woofer and two 2.5 inch tweeters carrying bright and clear sound; wherever low frequency extension is required, sub-woofer W-21P compensate and coordinate to make the sound field evenly balanced; All neodymium woofers and drivers applied in both W-3+W-21(W-3P+W-21P) ensure the system in high performance and low weight at the same time. W-3P/W-21P built-in Class D amplifiers use high-level electronic components, with reasonable circuit design and better heat dissipation. The maximum vertical coverage angle can reach 110° in W-3P system up to 16 pcs.
| Model |
W-3&W-3P(active) |
| Type | Two-way line array system |
| Frequency Response | 55Hz-18KHz±3dB |
| Power handling | LF 600W(RMS)2400W(PEAK) |
| HF 200W(RMS)800W(PEAK) | |
| Sensitivity | LF 105dB(1W-1M) |
| HF 109dB(1W-1M) | |
| Max-S.P.L | LF 131dB(PEAK/1M) |
| HF 135dB(PEAK/1M) | |
| Driver | LF 1×12" (310mm)neodymium woofer 75mm(3in)coil |
| HF 2×2.5" neodymium compression driver with 65mm titanium diaphragm | |
| Nominal impedance |
8 ohm |
| Dispersion pattern | 110°H×10°V |
| Finish | Textured high-density polyurethane coating |
| Speaker cables | LF 1(+)1(-)HF 2(+)2(-) |
| Input connectors | 2×ML4MP Speakon |
| Crossover | LF 60Hz-1KHz |
| HF 1kHz-20KHz | |
| Dimensions | 600×347×451mm(W×H×D) |
| Package dimensions | 675×447×520mm (W×H×D) /0.16cbm |
| Enclosure | Birch plywood |
| Net weight | 28.5kg/31.5kg(W-3P) |
| Gross weight | 33kg /36kg(W-3P) |
| Model |
W-21&W-21P(active) |
| Type | Sub-bass system |
| Frequency Response |
30Hz -400Hz ± 3dB |
| Power handling | 1500W(RMS)6000W(PEAK) |
| Sensitivity | 109dB(1W-1M) |
| Max-S.P.L |
138dB(PEAK/1M) |
| Components | 1×21"(545mm) neodymium woofer 115mm(4.5in)coil |
| Nominal impedance | 8 ohm |
| Finish | Textured high-density polyurethane coating |
| Input connectors | 2×NL4MP speakon |
| Dimensions | 600×650×750mm(W×H×D) |
| Package dimensions | 825×675×760mm (W×H×D) /0.42cbm |
| Enclosure | Birch plywood |
| Net weight | 70kg/73kg(W-21P) |
| Gross weight |
73kg/76kg (W-21P) |
CVR Pro-audio, spire generation with innovation & passion!
Guangzhou CVR Pro-Audio Co., L td has become one of the leading manufacturers of professional audio equipment and components in China. Offer one stop for audio and components project solution more than 1 5 years!
Guangzhou CVR Pro-Audio Co., L td Offer OEM/ODM service for customers all over the world, has been developing rapidly, Leading by a dynamic team with innovation and passion, a private brand CVR was launched.
