Quick Details
-
Application:
-
Office Building
-
Place of Origin:
-
China
-
Brand Name:
-
S4A
-
Model Number:
-
ED200
-
Power supply:
-
220V / 110V
-
An operator with arm:
-
Open Inside ( PULL ); Open Outside ( PUSH )
-
Opening time:
-
3~7s / 90°
-
Opening and holding time:
-
1-30s
-
Temperature:
-
-20℃~55℃
-
Protection level:
-
IP12D
-
Standard Package:
-
2PCS/carton
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Office Building
-
Place of Origin:
-
China
-
Brand Name:
-
S4A
-
Model Number:
-
ED200
-
Power supply:
-
220V / 110V
-
An operator with arm:
-
Open Inside ( PULL ); Open Outside ( PUSH )
-
Opening time:
-
3~7s / 90°
-
Opening and holding time:
-
1-30s
-
Temperature:
-
-20℃~55℃
-
Protection level:
-
IP12D
-
Standard Package:
-
2PCS/carton
S4A Automatic Sliding Door Sensor 55w Motor Door Opener And System Glass Automatic Sliding Door

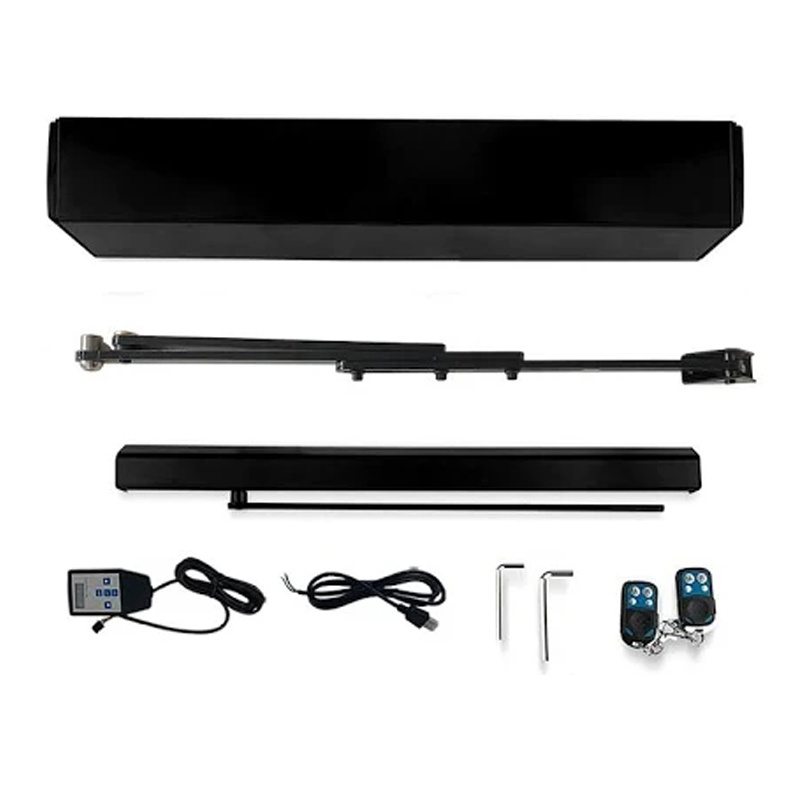

S4A ED200 Automatic Swing Door Opener is low energy automatic with a swing door opener that is activated by push buttons.
This system operates in both automatic and manual modes,
it makes the electronic door opener and closer highly adapt to voltage fluctuations between 110 or 220VAC ±10%,
More energy-saving and durable than an ordinary single input voltage.
The simple yet secure system for areas such as offices, hospitals, elderly homes, banks, commercial locations, and much more.
It supports 2ways working mode:
1. standalone access controller, connect it to power, power on, then we could open it by remote control and close it automatically
2. Connect it with RFID door access control systems, Enter by Face, RFID, Pincode or Finger
and exit by EB-16 or EB-17 Non-touch button or M-204T Microwave Sensor.
Main Features:
1. An advanced and reliable microprocessor controller is applied.
2. Brushless motor with self-locking, a long life span, and energy conservation.
3. Opening & Closing Speed adjustable.
4. Automatic/Lock/One Way/Half-open/Hold-open status can be set by remote key.
5. Opening and closing smooth with low noise.
6. Safety interlock and electric lock function.
7. Support multiple access control systems and Fire Alarm System
8. Auto-Reverse
Product Parameter | Parameter Descr1ption |
S4A Model | ED200 |
Product Name | Automatic Swing Door Operators |
Power supply | 220V / 110V |
An operator with arm | Open Inside ( PULL ); Open Outside ( PUSH ) |
Opening time | 3~7s / 90° |
Opening and holding time | 1-30s |
Temperature | -20 ℃ ~55 ℃ |
Protection level | IP12D |
Product volume | 515x95x90mm |
Unit Weight | 7.7KG |
Standard Package | 2PCS/carton |
Carton Weight | 15.5KG |
Carton Size | 65*33*23(cm) |
