Quick Details
-
Backgauge Travel (mm):
-
20 - 900 mm
-
Throat Depth (mm):
-
150 mm
-
Place of Origin:
-
Jiangsu, China
-
Name:
-
CNC QC11K Series Hydraulic Sheet Metal Plate Shearing Machine
-
hydraulic shearing machine:
-
swing beam shearing
-
cutting shearing machine:
-
mechanical plate shearing
-
Color:
-
Customizable
-
Times of stroke:
-
6~15times/min
-
Backgauge range:
-
20-1000
-
Height of working table:
-
900
Quick Details
-
Max. Cutting Width (mm):
-
6000 mm
-
Max. Cutting Thickness (mm):
-
20 mm
-
Blade Length (mm):
-
6100 mm
-
Backgauge Travel (mm):
-
20 - 900 mm
-
Throat Depth (mm):
-
150 mm
-
Place of Origin:
-
Jiangsu, China
-
Name:
-
CNC QC11K Series Hydraulic Sheet Metal Plate Shearing Machine
-
hydraulic shearing machine:
-
swing beam shearing
-
cutting shearing machine:
-
mechanical plate shearing
-
Color:
-
Customizable
-
Times of stroke:
-
6~15times/min
-
Backgauge range:
-
20-1000
-
Height of working table:
-
900
|
max. thickness
|
2
|
mm
|
|
max. width
|
6000
|
mm
|
|
yield stress of the board
|
450
|
N/mm2
|
|
shearing angle
|
30 '~3°
|
|
|
stroke
|
6-15
|
mm
-1
|
|
distance between shafts
|
6200
|
mm
|
|
length of blades
|
6100
|
mm
|
|
backgauge rang
|
20-1000
|
mm
|
Performance
1.All steel welded structure, vibrating treatment of ageing for removal of internal stress.With good rigidity and stability.
2.Using precision slide rail space.The shearing quality is good.
3.User can choose other brand cnc system(option).
4.The drive element of backgauge adopts importing ball screw and linear guideway.
5.The motor of backgauge can be equipped with importing AC servo motor.

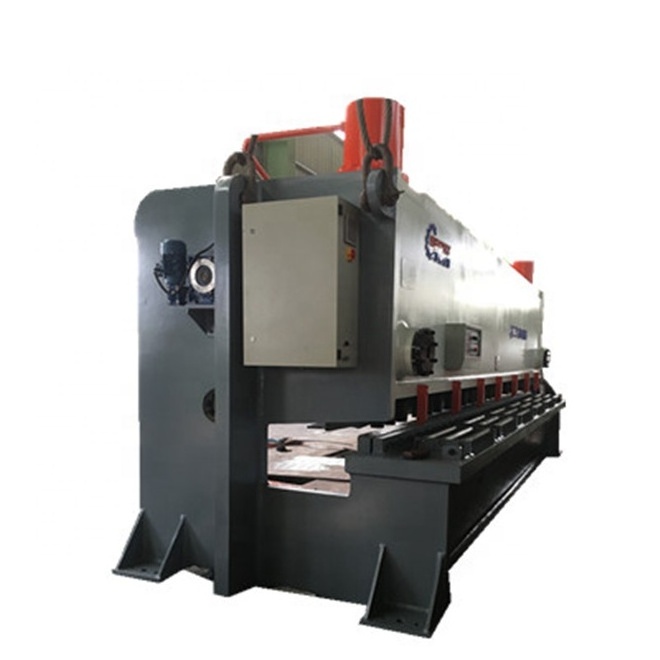

Front of Machine
Press cylinder
Thickness
CNC
shipment
Client Live Photographs
All our products are custom-made.
If you have the needing of metal sheets and coils proessing machines, congratulations, you find us.
(It's real love of our machine if you can read here. Please move to the bottom and contact with me immediately.
We will give you spare parts for free after order settled.)
