Quick Details
-
Screw Speed (rpm):
-
110 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sevenstars
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
depends on model
-
Weight:
-
depends on model
-
Warranty:
-
12 months
-
Warranty of core components:
-
12 months
-
Usage of pp hollow sheet:
-
package, building board,advertisement board
-
Motors of machines:
-
Seimens or other world famous brand
-
Product:
-
PP corrugated hollow sheet
-
Extruder:
-
single screw
-
Width of PP hollow sheet:
-
1000-2800mm
-
Thickness of PP hollow sheet:
-
2-15mm
-
Electrical units:
-
Seimens, Schneider,RKC, etc.
-
Inverter:
-
ABB brand
-
Other name:
-
PP hollow sheet production line
-
Color:
-
Customized
-
Certification:
-
ISO CE
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
depends on model
-
Screw diameter (mm):
-
depends on model
-
Screw Speed (rpm):
-
110 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sevenstars
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
depends on model
-
Weight:
-
depends on model
-
Warranty:
-
12 months
-
Warranty of core components:
-
12 months
-
Usage of pp hollow sheet:
-
package, building board,advertisement board
-
Motors of machines:
-
Seimens or other world famous brand
-
Product:
-
PP corrugated hollow sheet
-
Extruder:
-
single screw
-
Width of PP hollow sheet:
-
1000-2800mm
-
Thickness of PP hollow sheet:
-
2-15mm
-
Electrical units:
-
Seimens, Schneider,RKC, etc.
-
Inverter:
-
ABB brand
-
Other name:
-
PP hollow sheet production line
-
Color:
-
Customized
-
Certification:
-
ISO CE
Product Information

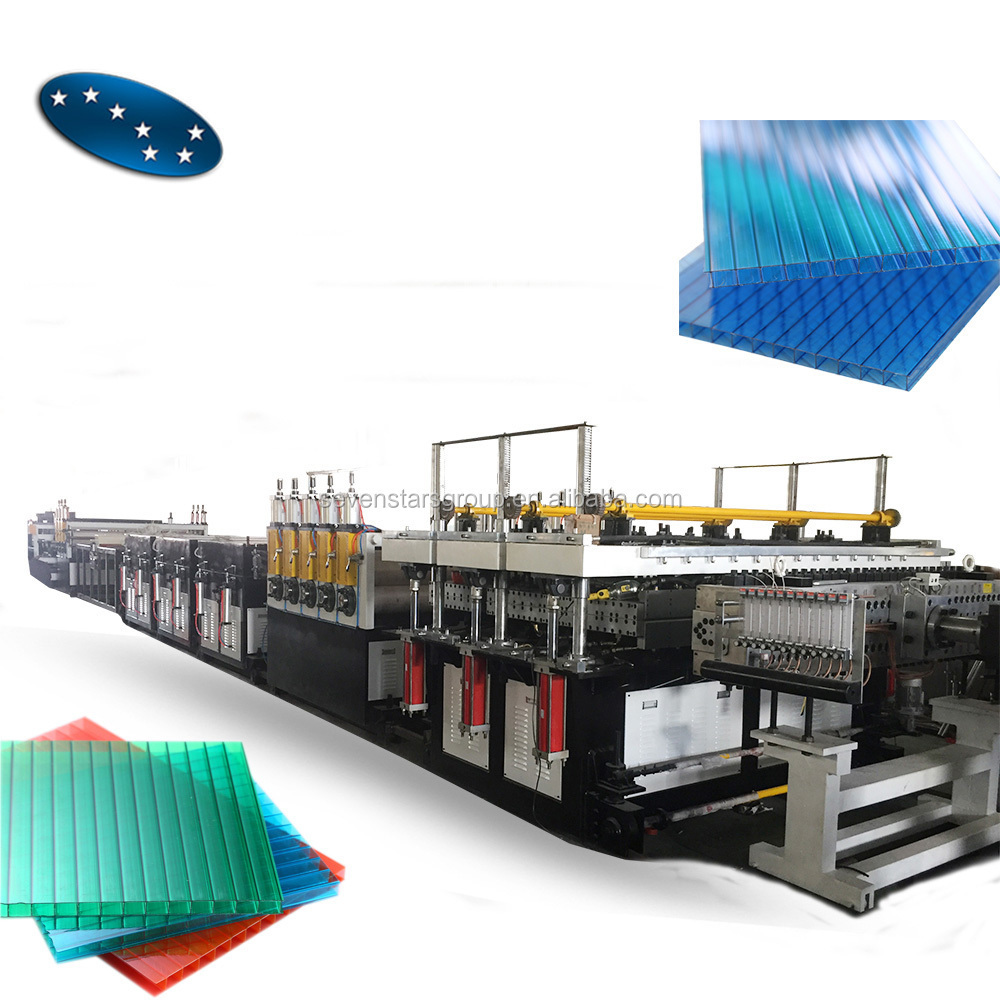

A. Process flow for PP PC hollow sheet extrusion production line
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder (depend on instrusion of the sheet)→ Hydraulic screen change (optional)
→melt pump
→
T-die
→ Vacuum calibrator forming machine
→ First hause off unit
→ Anneal oven
→ Cooling bracket
→ Double side Corona treatment device(optional) → Second haul off unit
→ Cross cutter and transmission unit → Collect table
B.Characteristics
- Capacity: single screw extruder, suitable to process PP PC resin with high capacity, max 800kg/h.width: from 1220 to 2500mm
- Adopts reasonable design, absorbing safe producing technology, acquiring CE certificate
C.Description
The PC hollow sheet production line/PE hollow sheet production line /PP hollow sheet production line is applicable to produce PC,PP,PE hollow profile board. The products is used widely for building, decorating, advertisement laying, road noise isolation ,roofing and packing. PP hollow profile board can instead of carton which have feature like light weight, high strengthen, moisture-proof, antisepsis. Machine part detailed introduction of PC hollow sheet production line/PE hollow sheet production line /PP hollow sheet production line 1. The vacuum calibrator featured with wear-resistance, dirty free and the lifting, falling and leveling for the forming plates is much easier to be controlled. 2. High speed screw, low energy consumption with high rotation speed to match gear pump and stable pressure; output capacity is 25% higher than other brand extrusion lines. because of special design of forming plates. 3. Special designed cooling system for all section of forming plates, and unique designed vacuum system for each section of forming plate. 4. Special designed temperature control oven with cross heat shrink forming, which is much easier to be controlled than other brand extrusion lines. 5. The softness of pull rolls could be customized on request to extend its stretch. 6. The air capacity of hollow sheet and low pressure could be adjusted and controlled slightly, which is easily to be controlled than any other brand extrusion lines. 7. Unique T-Die made by JC Times is specially designed for PP hollow sheet. The thickness of hollow sheet could be from 2mm to 10 mm with twin-wall. The ribbed between walls could be rectangular and diagonal shape. 8. Anti-UV co-extrusion layer could be one sided or two sided, outer surfaces could be sandy or glossy according to configuration requirement.High percentage of recycled flakes could be mixed with the virgin materials.
D.Technical Parameter
|
Extruder
|
SJ100
|
SJ120
|
SJ150
|
|
Max Sheet Width
|
1220mm
|
2100mm
|
2800mm
|
|
Sheet thickness
|
2-10mm
|
2-25mm
|
2-25mm
|
|
Max output
|
200kg/h
|
350kg/h
|
600kg
|
|
Extruder motor power
|
75KW
|
132KW
|
185KW
|
E. Guarantee and service
◊ Guarantee period and after-sales services: 12 month since installation finish and machine normal working. During this guarantee period, SEVENSTAR will provide spare parts without any charge in case of quality discrepancy caused by us.
◊ Long-term service:
SEVENSTAR will charge the buyer cost price of spare parts beyond guarantee time and provide long-term technical guide.
F.welcome to our factory!
First haul off machine
Anneal oven
Cooling bracket
Double side corona
Second haul off
Cutting machine
Zhangjiagang Sevenstars Machinery Co.,Ltd. was founded in 2006. it is an enterprise specialized in producing plastic machinery.it lies to the south of the middle and lower reches of Yangtze River.It is located in the National civilization and hygienic city-zhangjiagang , Surrounded by the economic belt of Suzhou,Wuxi,Changzhou,Nanjing and Shanghai.Both land and river transports are rather convenient.We sell our products to Europe middle,Africa and Asia,etc country and region.Our products enjoy a high reputation home and abroad.
1.How about the quality about this machine?
Answer: yes,my friend,please rest assured,we have more than 10 years experience for this machine.quality is no problem.
2.How about the output about this machine?is the data real?
Answer: my friend,we have tested that machine many times,then get this data,it is real and can meet your need.
3.Wether you deliver in time?
Answer: sure,once we receive your payment, then delivery immediately.
4.What about your after service?
Answer: we can send our engineers to you factory and offer long term technical guidance.
