Quick Details
-
Model Number:
-
UP-SYT
-
Warranty:
-
12 Months
-
Operation System:
-
Android
-
material:
-
PVC
-
Detection pressure range:
-
0-8Bar
Quick Details
-
Car Fitment:
-
Audi
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UP-SYT
-
Model Number:
-
UP-SYT
-
Warranty:
-
12 Months
-
Operation System:
-
Android
-
material:
-
PVC
-
Detection pressure range:
-
0-8Bar

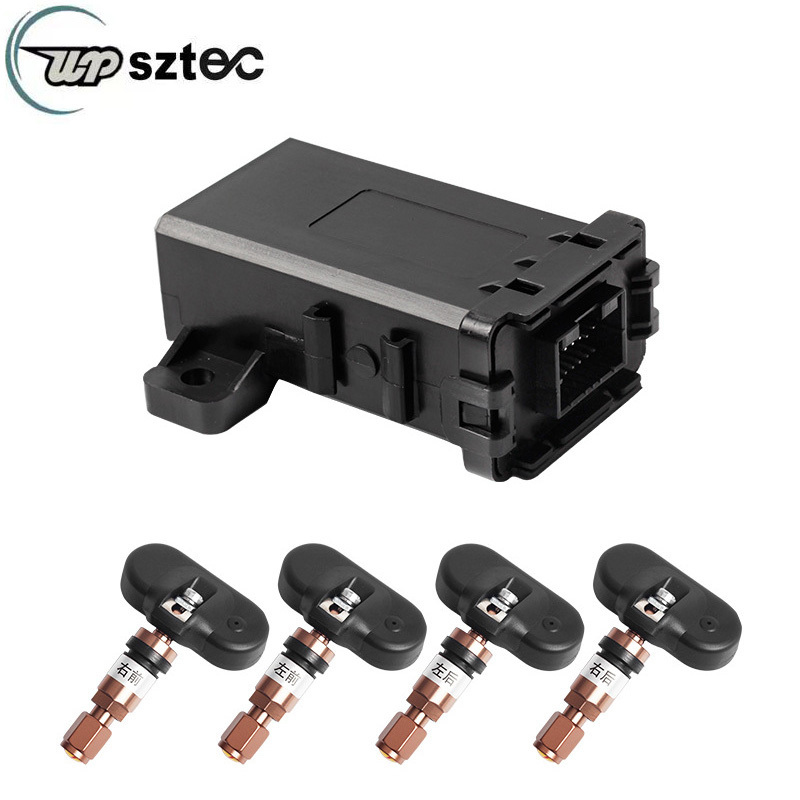

Wireless vehicle tire pressure monitor For Audi original vehicle instrument upgrades to display tire pressure
| Built in sensor parameters | External sensor parameters |
| RF frequency:433.92±0.1MHz | RF frequency:433.32±0.1MHz |
| High frequency transmission power:≤5dBm | High frequency transmission power:≤5dBm |
| High frequency modulation mode:FSK(9.6Kbps) | High frequency modulation mode:FSK(9.6Kbps) |
| Low frequency reception frequency:125±5KHz | Low frequency reception frequency:125±5KHz |
| Average working current without RF emission:≤0.25uA | Average working current without RF emission:≤0.25uA |
| Maximum working current of RF emission: ≤7mA | Maximum working current of RF emission: ≤7mA |
| Pressure measurement ranger: 0-8Bar | Pressure measurement ranger: 0-8Bar |
| Pressure measurement resolution:0.1Bar | Pressure measurement resolution:0.1Bar |
| Temperature measurement resolution:1℃ | Temperature measurement resolution:1℃ |
| Pressure measurement accuracy:±0.1Bar | Pressure measurement accuracy:±0.1Bar |
| Temperature measurement accuracy:±3℃ | Temperature measurement accuracy:±3℃ |
| Operating temperature range:-40℃-+125℃ | Operating temperature range:-20℃-+85℃ |
| Battery model:CR2050HR(Power:380mAh) | Battery model:CR1632(Power:120mAh) |
| Sensor assembly weight:≤45g( Including valve) | Sensor assembly weight: ≤9.3g |
| Storage temperature range:-40℃-+125℃ | Storage temperature range:-20℃-+85℃ |
