2. Light structure,easy installation and maintenance
3. Reasonable structure,strong bearing capacity
4. Low noise, soft starting and stopping
safe and reliable operation
5.Overload protection device Emergency stop system.
- Product Details
- {{item.text}}
Quick Details
-
Max. Lifting Load:
-
32 tons, Any weight! lifting weight is customizable
-
Span:
-
7.5-31.5m,customizable
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kuang Yuan
-
Weight (KG):
-
4895 kg
-
Product name:
-
Europe Type Low Headroom Single Girder Overhead crane
-
Voltage:
-
220V/380V/415V or according to your demand
-
Application:
-
Widely manufacture plant
-
Lifting mechanism:
-
Wire Rope Electric Hoist
-
Certificate:
-
ISO 9001
-
Lifting Capacity:
-
Customized
-
Control Method:
-
Ground+Remote Control
-
Lifting Height:
-
Customized
-
Color:
-
Customized
-
Main electrical parts:
-
Schneider Brand, SIEMENS
Quick Details
-
Max. Lifting Height:
-
25M, 7.5m, 5M, 15M, 4.5m, 20M, Other, customizable
-
Marketing Type:
-
New Product 2024
-
Rated Lifting Moment:
-
customizable
-
Max. Lifting Load:
-
32 tons, Any weight! lifting weight is customizable
-
Span:
-
7.5-31.5m,customizable
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kuang Yuan
-
Weight (KG):
-
4895 kg
-
Product name:
-
Europe Type Low Headroom Single Girder Overhead crane
-
Voltage:
-
220V/380V/415V or according to your demand
-
Application:
-
Widely manufacture plant
-
Lifting mechanism:
-
Wire Rope Electric Hoist
-
Certificate:
-
ISO 9001
-
Lifting Capacity:
-
Customized
-
Control Method:
-
Ground+Remote Control
-
Lifting Height:
-
Customized
-
Color:
-
Customized
-
Main electrical parts:
-
Schneider Brand, SIEMENS
PRODUCTS DESCRIPTION

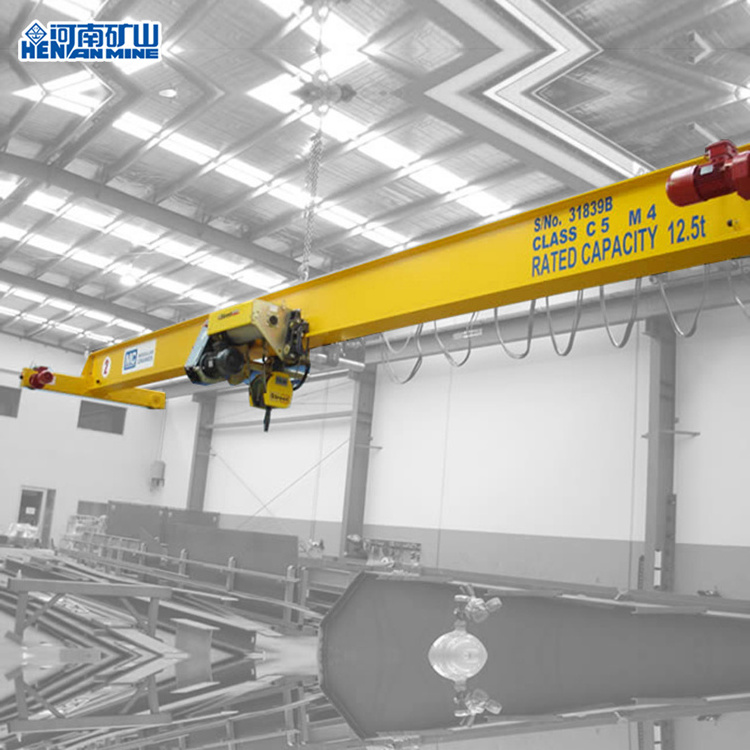

Top Quality Remote Control Low Headroom Type Single Beam EOT Bridge Crane
The low headroom single girder overhead crane is a light-duty material handling equipment,designed for low headroom workshop application.
The standard Lifting capacity is from 1 to 20 tons. The span is 7.5to 31.5 meters. The working grade is A3. The working
temperature is -25°C to 40°C. It is matched with low headroom electric hoist, the self height of this type of hoist is lower than the normal CD MD type electric hoist, therefore, this type hoist could help to increase the lifting height at the low height building.
This kind of overhead crane (overhead crane) is widely used in low height factories, warehouses, material inventories and other places to lift goods. It is forbidden to use inflammable, explosive and other corrosive environments.
The standard Lifting capacity is from 1 to 20 tons. The span is 7.5to 31.5 meters. The working grade is A3. The working
temperature is -25°C to 40°C. It is matched with low headroom electric hoist, the self height of this type of hoist is lower than the normal CD MD type electric hoist, therefore, this type hoist could help to increase the lifting height at the low height building.
This kind of overhead crane (overhead crane) is widely used in low height factories, warehouses, material inventories and other places to lift goods. It is forbidden to use inflammable, explosive and other corrosive environments.
FEATURES AT A GLANCE
1. Light self-weight; Occupies little space; Low cost of running and maintaining; High performance;
PRODUCT CONFIGURATION
Euro-style Single Girder Overhead Crane：
Lifting capacity: 1~30t, Span length: ≥6m
Product type:
LDC
single girder eot crane
(Under hung model)
Lifting capacity: 1~20t, Span length: ≥ 6m
\uD83D\uDC49
Get your custom overhead crane design.
\uD83D\uDC48
Main Girder
Structure: Welding structure of steel plate and I-steel
Electric Hoist
Model: CD, MD
Capacity: 0.25-32t
Lifting height: >3m
End Girder
The end girder is connected with the main girder for easy installtion.
|
LDC low headroom single girder overhead crane
|
|
|
|
|
|
|
|
|||||||
|
Lifting capacity
|
1 ton
|
2 ton
|
3 ton
|
5 ton
|
10 ton
|
16 ton
|
20 ton
|
|||||||
|
Span
|
7m-31.5m
|
|
|
|
|
|
|
|||||||
|
Lifting height
|
6/9/12/18/24/30m
|
|
|
|
|
|
|
|||||||
|
Lifting motor
|
ZD122-4/1.5KW
|
ZD131-4/3.0KW
|
ZD132-4/4.5KW
|
ZD141-4/7.5KW
|
ZD151-4/13KW
|
ZD151-4/13KW
|
ZD152-4/18.5KW
|
|||||||
|
Cross motor
|
ZDY111-4/0.2KW
|
ZDY111-4/0.4KW
|
ZDY112-4/0.4KW
|
ZDY121-4/0.8KW
|
ZDY121-4/0.8x2KW
|
ZDY121-4/0.8x2kw
|
ZDY121-4
/0.8x4kw
|
|||||||
|
Lifting speed
|
0.8/8 m/min
|
0.8/8
m/min
|
0.8/8
m/min
|
0.8/8
m/min
|
0.7/7
m/min
|
0.35/3.5
m/min
|
0.4/4
m/min
|
|||||||
|
Cross speed
|
20
m/min
|
20
m/min
|
20
m/min
|
20
m/min
|
20
m/min
|
20
m/min
|
20
m/min
|
|||||||
|
Traveling speed
|
20
m/min
|
20
m/min
|
20
m/min
|
20
m/min
|
20
m/min
|
20
m/min
|
20
m/min
|
|||||||
|
Power source
|
380V 50Hz,3Phase or customized
|
|
|
|
|
|
|
|||||||
|
Working class
|
A3
|
|
|
|
|
|
|
|||||||
PRODUCT SPECIFICATIONS
Safety Function:
1. Over current Protection, Short-circuit Protection
2. Phase sequence protection
3. Zero position protection,No-Voltage protection
4. Mechanical interlock protection of controller
5. Limit switch for crane long traveling
6. Stopper and Limit switch for trolley cross traveling
7. Lifting up and lower down limit switch
8. High quality polyurethane buffer for crane long traveling protection
1. Over current Protection, Short-circuit Protection
2. Phase sequence protection
3. Zero position protection,No-Voltage protection
4. Mechanical interlock protection of controller
5. Limit switch for crane long traveling
6. Stopper and Limit switch for trolley cross traveling
7. Lifting up and lower down limit switch
8. High quality polyurethane buffer for crane long traveling protection
\uD83D\uDC49
Click to customize your parameters!
\uD83D\uDC48
COMPANY PROFILE
PRODUCT PACKING
Fast Delivery
Henan Mine has sound production security system and experienced workers to ensure timely or early delivery period.
Package
By national station exporting standard plywood box, wooden pallet or in 20ft & 40ft container. Or as your demands.
FAQ
Q: Can you provide custom service?
A: Yes, of course. We have our own engineer group. They can work out customized design according to your requirement. So be free to contact us to tell parameters you need.
Q: Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
Q: Whether you can offer the matched spare parts?
A: Yes, we offer all the related spare parts. Such as motor, hoists, drums, wheels, grabs, hooks, rails, travel beams, enclosed bus bar, etc.
Q: How can you ensure the quality?
A: Before delivery, every product will be tested strictly, and we will send you the quality certification. You are also warmly welcomed to our factory to make the inspections.
